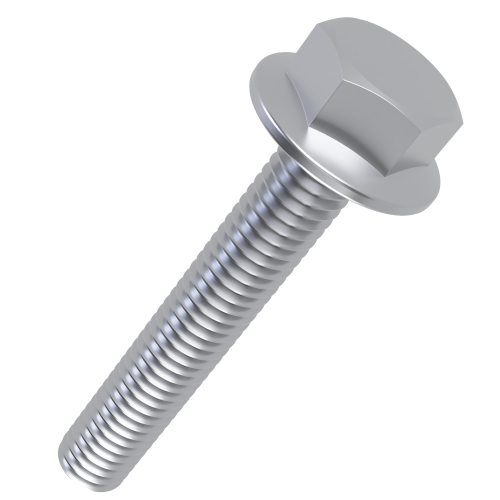

M10 x 16mm Hex (Non Serrated) Flange Bolt (DIN 6921) - 8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.43 | £0.52 |
| 100 - 999 | £0.31 | £0.37 |
| 1000 - 4999 | £0.24 | £0.29 |
| 5000 + | £0.22 | £0.26 |
Product Specification
| Thread Size | M10 |
| Thread Length | 16mm |
| Pitch | 1.5mm |
| Material | 8.8 Steel BZP |
| Across Flats | 15mm |
| Head Height | 9.2mm |
| Flange Diameter | 22.3mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M10 x 16mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
The M10 x 16mm 8.8 Steel BZP flanged hex head bolt is made for conveyor frames where a standard hex bolt would need extra load spreading. Its 16mm thread length, 1.5mm pitch and 9.2mm head height make it easy to match with existing DIN 6921 fastener specifications.
The hex head and flange combination makes installation straightforward so the fastener can seat cleanly against flat or slotted components. Its 9.2mm head height and 22.3mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Conveyor Frames: joining brackets on conveyor frames and handling systems.
- Frame Assembly: supports firm alignment where vibration or movement can affect standard fasteners.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M10 x 16mm Flanged Hex Head Bolt Dimensions
- Thread Size: M10
- Thread Length: 16mm
- Pitch: 1.5mm
- Across Flats: 15mm
- Head Height: 9.2mm
- Flange Diameter: 22.3mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Specification Notes
Choose stainless steel where corrosion resistance is more important than the lowest unit cost. The flange helps spread pressure but the correct mating component is still important for safe installation.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
