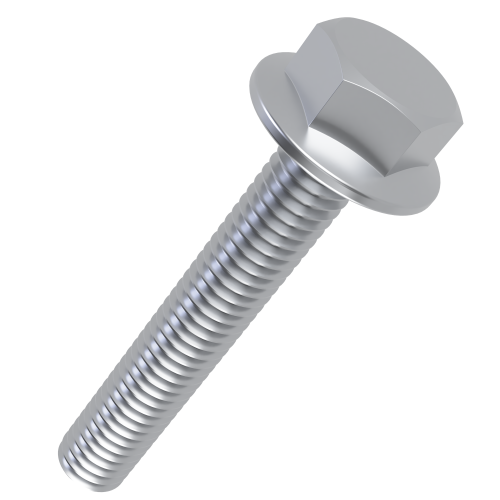

M10 x 35mm Hex (Non Serrated) Flange Bolt (DIN 6921) - 8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.40 | £0.48 |
| 100 - 999 | £0.28 | £0.34 |
| 1000 - 4999 | £0.23 | £0.27 |
| 5000 + | £0.20 | £0.24 |
Product Specification
| Thread Size | M10 |
| Thread Length | 35mm |
| Pitch | 1.5mm |
| Material | 8.8 Steel BZP |
| Across Flats | 15mm |
| Head Height | 9.2mm |
| Flange Diameter | 22.3mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M10 x 35mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
This M10 x 35mm flanged hex head bolt in 8.8 Steel BZP is commonly selected for building workshop jigs, clamps and prototype fixtures. Manufactured to DIN 6921, it uses a 22.3mm flange diameter and 15mm across flats to give a practical hex driven fixing for workshop jigs.
This one-piece flange design reduces loose hardware so the fastener can seat cleanly against flat or slotted components. Its 9.2mm head height and 22.3mm flange diameter should be checked against the available clearance before final selection.
Common Applications
- Workshop Jigs: building workshop jigs, clamps and prototype fixtures.
- Frame Assembly: gives installers a stronger bearing face when tightening onto slotted parts.
- Service Panels: creating a neat fixing for removable covers.
- General Engineering: standardising parts around the DIN 6921 format.
M10 x 35mm Flanged Hex Head Bolt Dimensions
- Thread Size: M10
- Thread Length: 35mm
- Pitch: 1.5mm
- Across Flats: 15mm
- Head Height: 9.2mm
- Flange Diameter: 22.3mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Installation Advice
Select the material grade to suit the environment; A4 stainless is better for harsher exposure while BZP steel is best kept to dry or sheltered use. Tighten using the correct socket or spanner size and follow the required torque setting for the assembly.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
