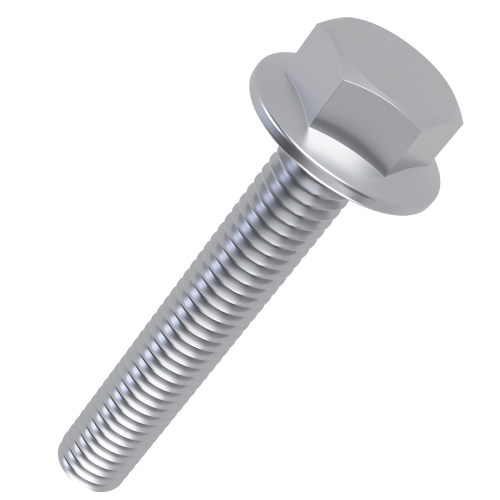

M8 x 60mm Hex (Non Serrated) Flange Bolt (DIN 6921) - 8.8 BZP Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.43 | £0.52 |
| 100 - 999 | £0.31 | £0.37 |
| 1000 - 4999 | £0.24 | £0.29 |
| 5000 + | £0.22 | £0.26 |
Product Specification
| Thread Size | M8 |
| Thread Length | 60mm |
| Pitch | 1.25mm |
| Material | 8.8 Steel BZP |
| Across Flats | 13mm |
| Head Height | 8.1mm |
| Flange Diameter | 18.0mm |
| Standard | DIN 6921 |
| Head Style | Flanged Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 60mm Flanged Hex Head Bolt (DIN 6921) | 8.8 Steel BZP
This M8 x 60mm flanged hex head bolt in 8.8 Steel BZP supports securing machine guards, cover plates and service panels. Manufactured to DIN 6921, it uses a 18mm flange diameter and 13mm across flats to give a practical hex driven fixing for machinery guarding.
The built-in washer face helps protect the surrounding surface, making the fixing useful for equipment that sees vibration, routine servicing or repeated adjustment. The 8.8 Steel BZP finish should be matched to the working environment before installation.
Common Applications
- Machinery Guarding: securing machine guards, cover plates and service panels.
- Panel Mounting: reducing the need for loose washers on flat surfaces.
- Workshop Use: helps spread clamp load around access points that may be removed during maintenance.
- Trade Maintenance: supporting quick specification from thread size and length.

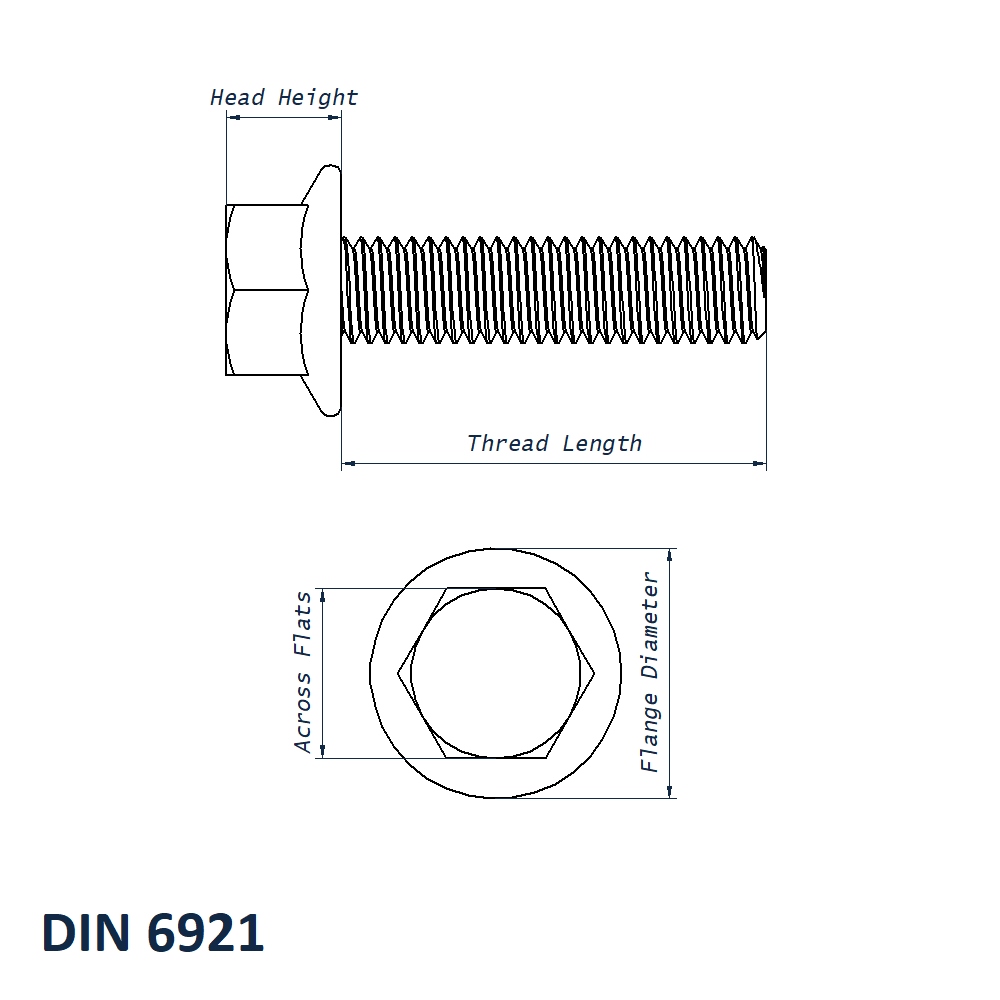

M8 x 60mm Flanged Hex Head Bolt Dimensions
- Thread Size: M8
- Thread Length: 60mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 8.1mm
- Flange Diameter: 18mm
- Standard: DIN 6921
- Head Style: Flanged Hex Head
- Material: 8.8 Steel BZP
Buying Guidance
Use the across flats value to confirm spanner or socket access before installing inside frames or enclosed machinery. For matched fastening assemblies, also check the washer and nut material so the joint performs consistently in service.
Related Fasteners
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
For a standard non-flanged head, view our Hex Head Bolts DIN 931. For a fully threaded hex option, view our Hex Set Screws DIN 933.
View our full range of Flanged Hex Head Bolts DIN 6921.
