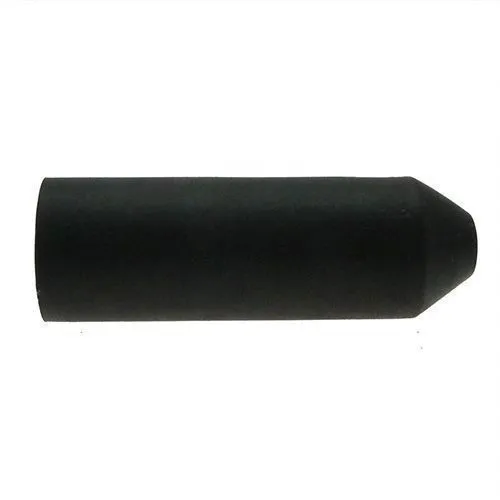

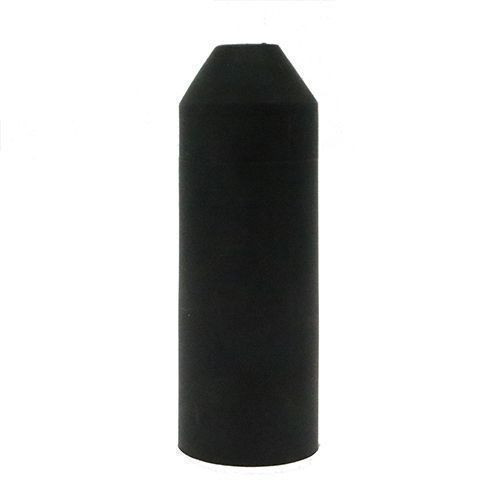

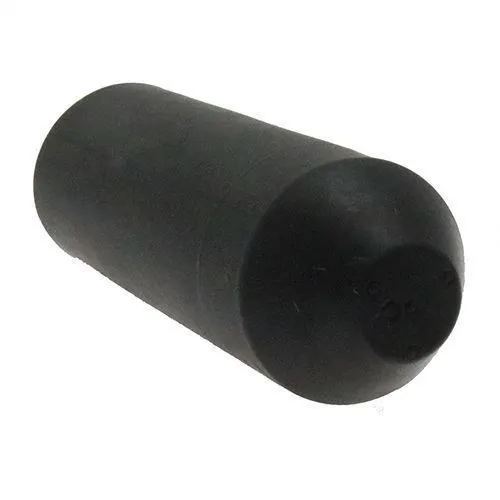

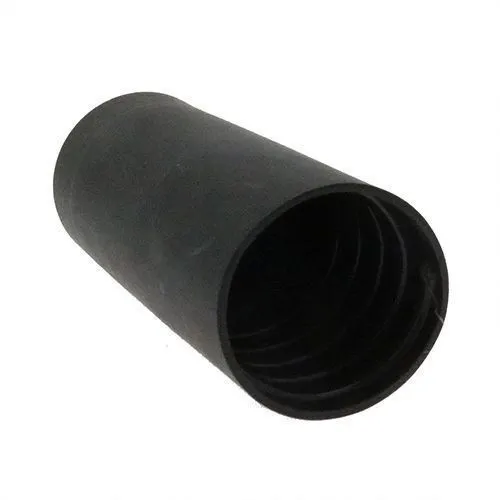

14mm Heat Shrink End Cap - 44mm Length (3:1 Shrink Ratio) | Black Polyolefin
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 37 | £2.23 | £2.68 |
| 38 - 52 | £2.05 | £2.46 |
| 53 - 79 | £1.89 | £2.27 |
| 80 - 159 | £1.74 | £2.09 |
| 160 + | £1.60 | £1.92 |
Product Specification
| Max Internal | 14mm |
| Shrink Internal | 4.0mm |
| Internal Length | 44mm |
| Wall Thickness | 2.50mm |
| Colour | Black |
| Temperature Range | -30°C to 70°C |
| Material | Polyolefin |
Frequently Bought Together
Total Price: £0.00
14mm x 44mm Heat Shrink Cap | Shrinks To 4.0mm | Black Polyolefin
This 14mm x 44mm heat shrink cap is designed for harness assembly where cable ends need an insulated finish before being routed through a loom or enclosure. It is a wire harness end cap manufactured from Polyolefin and supplied in black finish for reliable cable end protection.
This heat shrink cap has a maximum internal diameter of 14mm and will shrink down to a diameter of 4.0mm. The longer body compared with smaller caps gives more surface contact for wires that need dependable end coverage. The 2.50mm wall thickness and 30°C and 70°C temperature range should be checked against the installation environment before ordering.
Common Applications
- Wire harness assembly
- Cable loom finishing
- OEM electrical builds
- Low voltage equipment wiring

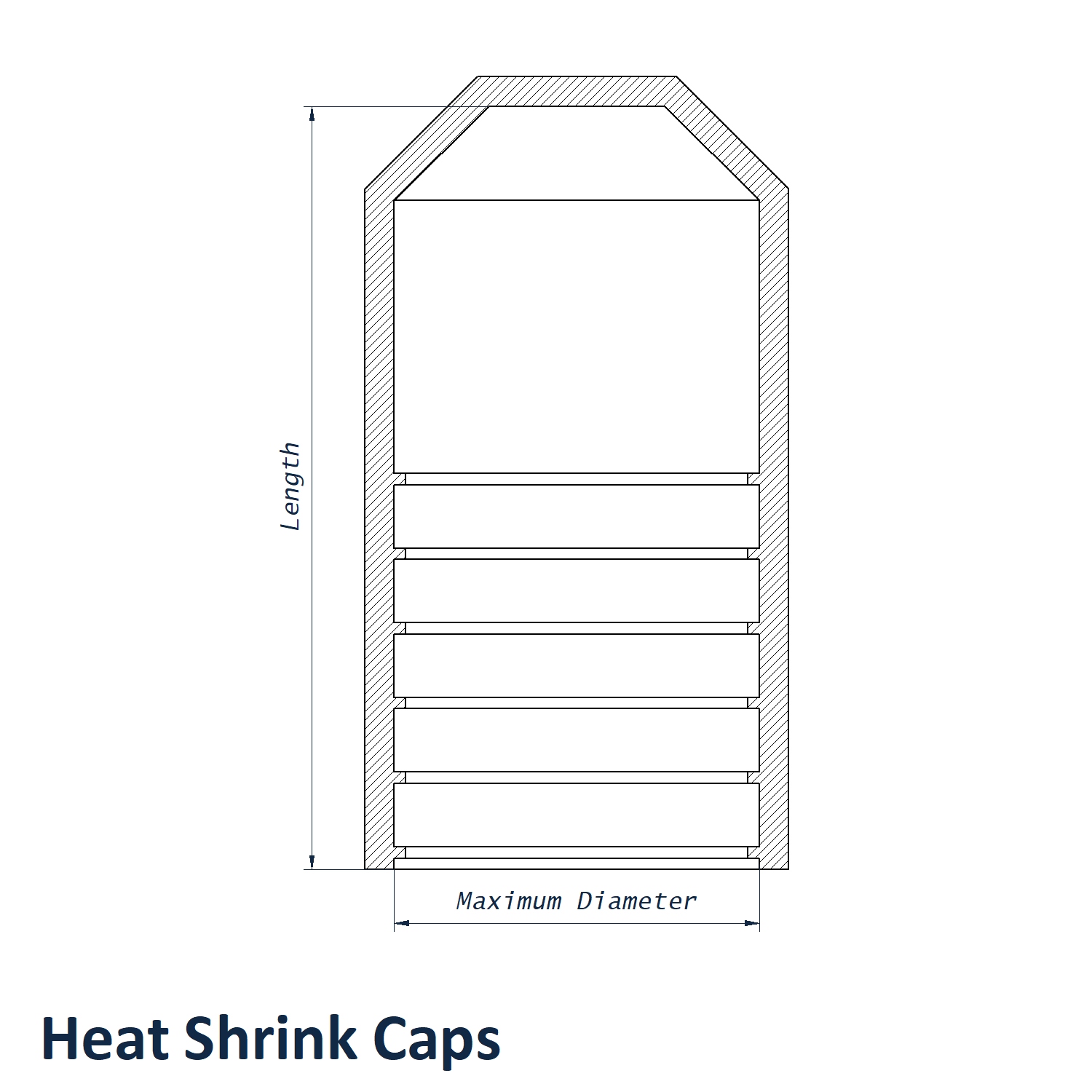

14mm to 4.0mm x 44mm Heat Shrink Cap Dimensions
- Max Internal: 14mm
- Shrink Internal: 4.0mm
- Internal Length: 44mm
- Wall Thickness: 2.50mm
- Colour: Black
- Material: Polyolefin
- Temperature Range: 30°C and 70°C
Choosing The Right Heat Shrink Cap
Select this cap when the starting diameter suits the cable bundle and the internal length gives enough overlap for the planned termination.
View our full range of Heat Shrink Caps for additional cable sealing and wire end protection options.
Need help or buying in bulk? Call 01233 713581 for support.
