14mm Heat Shrink End Cap - 45mm Length (3:1 Shrink Ratio) | Black Polyolefin
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 37 | £1.54 | £1.85 |
| 38 - 52 | £1.42 | £1.70 |
| 53 - 79 | £1.30 | £1.56 |
| 80 - 159 | £1.20 | £1.44 |
| 160 + | £1.10 | £1.32 |
Product Specification
| Max Internal | 14mm |
| Shrink Internal | 5.0mm |
| Internal Length | 45mm |
| Wall Thickness | 2.20mm |
| Colour | Black |
| Temperature Range | -30°C to 70°C |
| Material | Polyolefin |
Frequently Bought Together
Total Price: £0.00

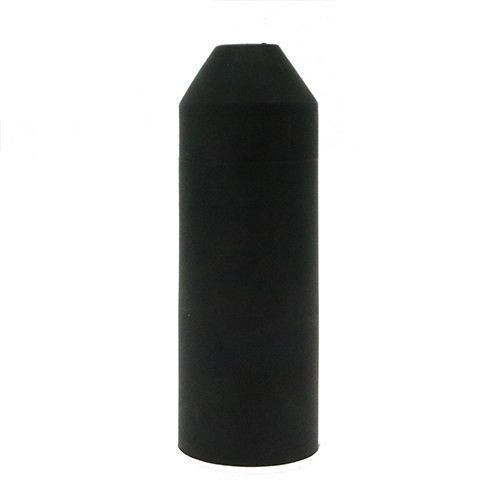

14mm x 45mm Heat Shrink Cap | Shrinks To 5.0mm | Black Polyolefin
This 14mm x 45mm heat shrink cap is ideal for maintenance teams repairing frayed cable ends or covering unused conductors during site work. It is a heat shrink end seal manufactured from Polyolefin and supplied in black finish for reliable cable end protection.
This heat shrink cap has a maximum internal diameter of 14mm and will shrink down to a diameter of 5.0mm. Once heated, the cap forms a close protective layer that helps reduce moisture exposure and everyday abrasion on the finished end. The 2.20mm wall thickness and 30°C and 70°C temperature range should be checked against the installation environment before ordering.
Common Applications
- Site maintenance repairs
- Temporary cable isolation
- Electrical fault rectification
- Cable end blanking

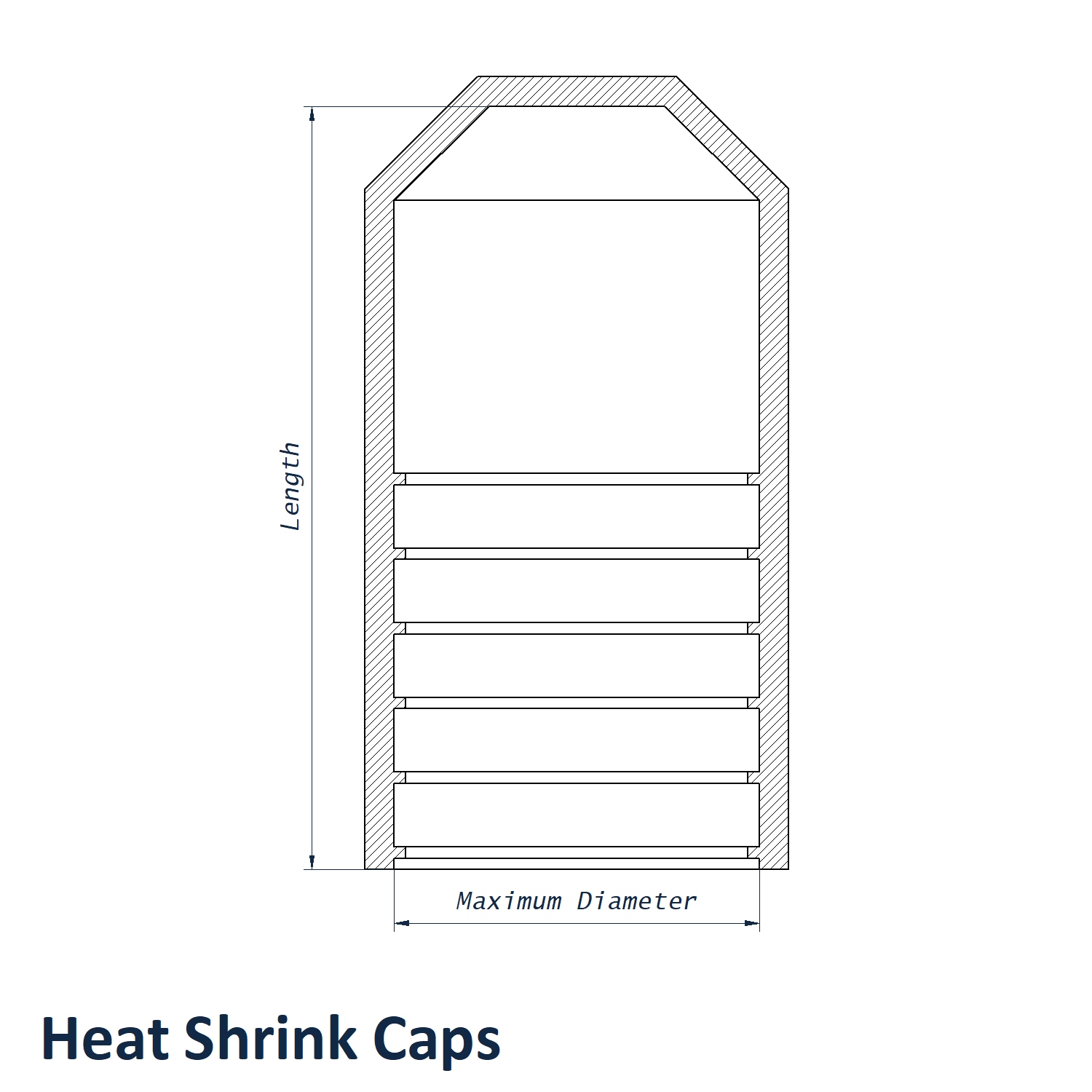

14mm to 5.0mm x 45mm Heat Shrink Cap Dimensions
- Max Internal: 14mm
- Shrink Internal: 5.0mm
- Internal Length: 45mm
- Wall Thickness: 2.20mm
- Colour: Black
- Material: Polyolefin
- Temperature Range: 30°C and 70°C
Choosing The Right Heat Shrink Cap
Use a controlled heat gun and rotate the cap during installation to encourage an even shrink around the cable end.
View our full range of Heat Shrink Caps for additional cable sealing and wire end protection options.
Need help or buying in bulk? Call 01233 713581 for support.
