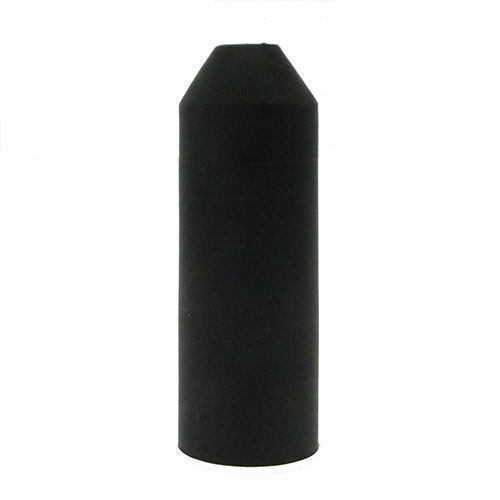

55mm Heat Shrink End Cap - 103mm Length (3:1 Shrink Ratio) | Black Polyolefin
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 37 | £4.94 | £5.93 |
| 38 - 52 | £4.84 | £5.81 |
| 53 - 79 | £4.75 | £5.70 |
| 80 - 159 | £4.65 | £5.58 |
| 160 + | £4.56 | £5.47 |
Product Specification
| Max Internal | 55mm |
| Shrink Internal | 26.0mm |
| Internal Length | 103mm |
| Wall Thickness | 3.80mm |
| Colour | Black |
| Temperature Range | -30°C to 70°C |
| Material | Polyolefin |
Frequently Bought Together
Total Price: £0.00
55mm x 103mm Heat Shrink Cap | Shrinks To 26.0mm | Black Polyolefin
This 55mm x 103mm heat shrink cap is made for medium power cable ends where a strong heat shrink covering can help protect the termination from knocks and scuffs. It is a medium power cable cap manufactured from Polyolefin and supplied in black finish for reliable cable end protection.
This heat shrink cap has a maximum internal diameter of 55mm and will shrink down to a diameter of 26.0mm. The 26mm shrink internal diameter is useful for larger cable sizes that still need a controlled finished profile. The 3.80mm wall thickness and 30°C and 70°C temperature range should be checked against the installation environment before ordering.
Common Applications
- Medium power cable ends
- Distribution board maintenance
- Workshop cable repairs
- Protective end sealing
55mm to 26.0mm x 103mm Heat Shrink Cap Dimensions
- Max Internal: 55mm
- Shrink Internal: 26.0mm
- Internal Length: 103mm
- Wall Thickness: 3.80mm
- Colour: Black
- Material: Polyolefin
- Temperature Range: 30°C and 70°C
Choosing The Right Heat Shrink Cap
Choose the cap by matching both the initial cable diameter and the required final grip after shrinking.
View our full range of Heat Shrink Caps for additional cable sealing and wire end protection options.
Need help or buying in bulk? Call 01233 713581 for support.
