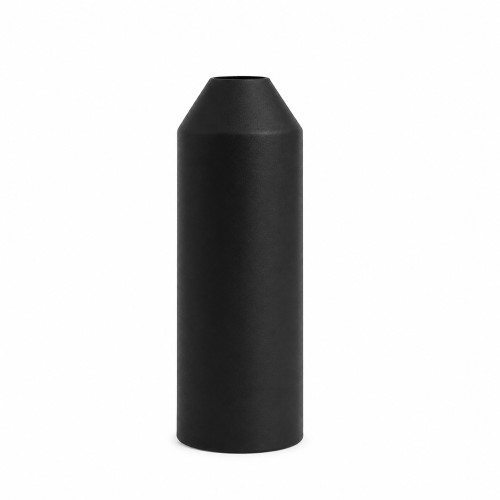

100mm Heat Shrink End Cap - 155mm Length (3:1 Shrink Ratio) | Black Polyolefin
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 37 | £10.64 | £12.77 |
| 38 - 52 | £9.79 | £11.75 |
| 53 - 79 | £9.01 | £10.81 |
| 80 - 159 | £8.28 | £9.94 |
| 160 + | £7.63 | £9.16 |
Product Specification
| Max Internal | 100mm |
| Shrink Internal | 47.0mm |
| Internal Length | 155mm |
| Wall Thickness | 4.20mm |
| Colour | Black |
| Temperature Range | -30°C to 70°C |
| Material | Polyolefin |
Frequently Bought Together
Total Price: £0.00
100mm x 155mm Heat Shrink Cap | Shrinks To 47.0mm | Black Polyolefin
This 100mm x 155mm heat shrink cap is built for heavy service wiring where large cable ends need a practical protective finish during repair or production. It is a heavy service heat shrink cap manufactured from Polyolefin and supplied in black finish for reliable cable end protection.
This heat shrink cap has a maximum internal diameter of 100mm and will shrink down to a diameter of 47.0mm. The 100mm maximum internal diameter supports wide cable entry while the cap shrinks to create a more secure end cover. The 4.20mm wall thickness and 30°C and 70°C temperature range should be checked against the installation environment before ordering.
Common Applications
- Heavy service wiring
- Power equipment maintenance
- Electrical workshop stock
- Cable end protection on machinery
100mm to 47.0mm x 155mm Heat Shrink Cap Dimensions
- Max Internal: 100mm
- Shrink Internal: 47.0mm
- Internal Length: 155mm
- Wall Thickness: 4.20mm
- Colour: Black
- Material: Polyolefin
- Temperature Range: 30°C and 70°C
Choosing The Right Heat Shrink Cap
For best results, remove dirt or oil from the cable jacket before heating the cap into place.
View our full range of Heat Shrink Caps for additional cable sealing and wire end protection options.
Need help or buying in bulk? Call 01233 713581 for support.
