M8 x 120mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.99 | £1.19 |
| 100 - 999 | £0.89 | £1.07 |
| 1000 + | £0.57 | £0.68 |
Product Specification
| Thread Size | M8 |
| Pitch | 1.25mm |
| Length | 120mm |
| Threaded Length | 22mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 5.5mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M8 x 120mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
Use this M8 x 120mm part threaded hex bolt when temporary site equipment needs a strong metric fastening that can be tightened from the head side. The DIN 931 form offers a standardised shank and thread layout for predictable installation. This makes the metric hex head bolt useful when a standard metric fastening has to match existing drawings.
DIN 931 sizing improves interchangeability across maintenance stores, OEM builds and fabrication projects where consistent metric hardware is needed. It is especially useful where teams need standard stock for temporary site equipment without moving to a fully threaded screw.
Common Applications
- Supporting modular frames in temporary site equipment
- Maintaining removable fixings using M8 metric hardware
- Reinforcing serviceable supports where A4-80 Stainless Steel is specified
- Repairing portable plant hardware requiring DIN 931 part threaded bolts

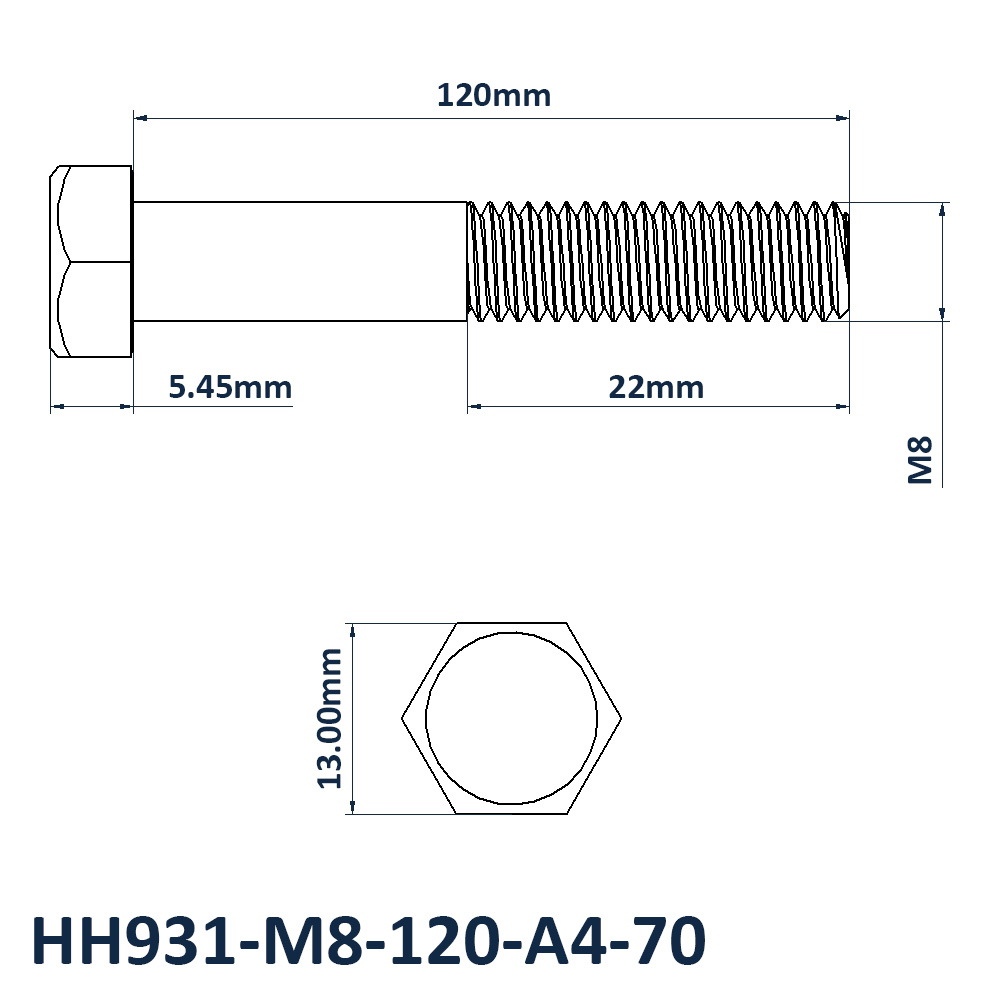

M8 x 120mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M8
- Length: 120mm
- Threaded Length: 22mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 5.5mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
