M10 x 60mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.69 | £0.83 |
| 100 - 999 | £0.62 | £0.74 |
| 1000 + | £0.39 | £0.47 |
Product Specification
| Thread Size | M10 |
| Pitch | 1.50mm |
| Length | 60mm |
| Threaded Length | 26mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 17mm |
| Head Height | 6.6mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M10 x 60mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
This M10 x 60mm metric hex bolt supports machine guarding work by combining a high-torque hex head with a part threaded shank. The 1.50mm pitch, 17mm across flats and 6.6mm head height give clear installation reference points. The result is a hex head machine bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. It is especially useful where teams need standard stock for machine guarding work without moving to a fully threaded screw.
Common Applications
- Repairing mesh guard panels in machine guarding work
- Clamping hinged access covers using M10 metric hardware
- Fastening safety screen frames where A4-80 Stainless Steel is specified
- Installing inspection door fixings requiring DIN 931 part threaded bolts

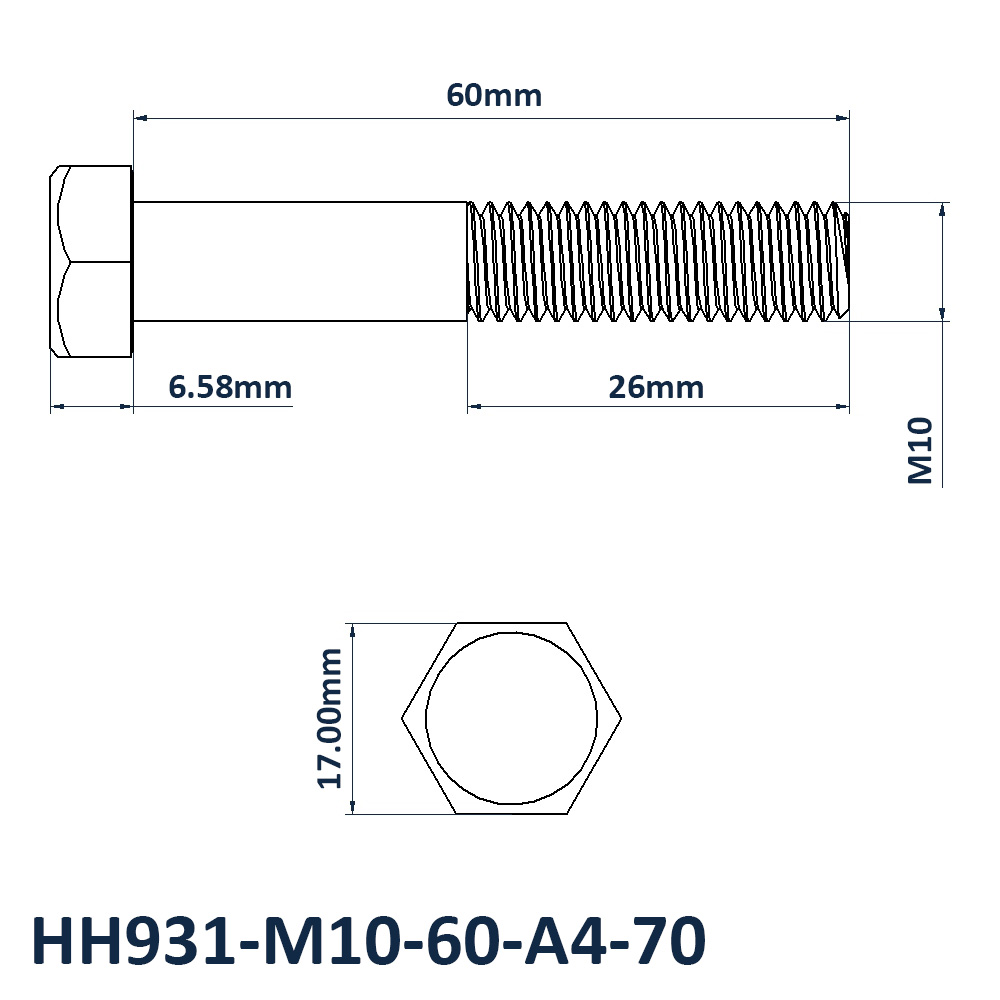

M10 x 60mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M10
- Length: 60mm
- Threaded Length: 26mm
- Pitch: 1.50mm
- Across Flats: 17mm
- Head Height: 6.6mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
