M16 x 110mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £3.67 | £4.40 |
| 100 - 999 | £3.27 | £3.93 |
| 1000 + | £2.09 | £2.51 |
Product Specification
| Thread Size | M16 |
| Pitch | 2.00mm |
| Length | 110mm |
| Threaded Length | 38mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 24mm |
| Head Height | 10.3mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M16 x 110mm Hex Head Bolt DIN 931 | A4-80 Stainless Steel
This M16 x 110mm hex head bolt is a part threaded DIN 931 fastener for HVAC support work. Its A4-80 stainless steel construction supports secure clamping where a spanner-tightened hexagon head is preferred over a socket drive. It is a practical option for buyers searching for a M16 hex bolt with measured DIN 931 geometry.
The partially threaded design is useful where the shank passes through one component and the threaded end clamps against the mating part, helping reduce movement in bracketed assemblies. With a 2.00mm pitch and 24mm across flats head, it is easy to specify for fabricated frames and medium duty plant.
Common Applications
- Aligning duct brackets in HVAC support work
- Replacing fan frames using M16 metric hardware
- Fixing roof plant supports where A4-80 Stainless Steel is specified
- Upgrading serviceable equipment fixings requiring DIN 931 part threaded bolts

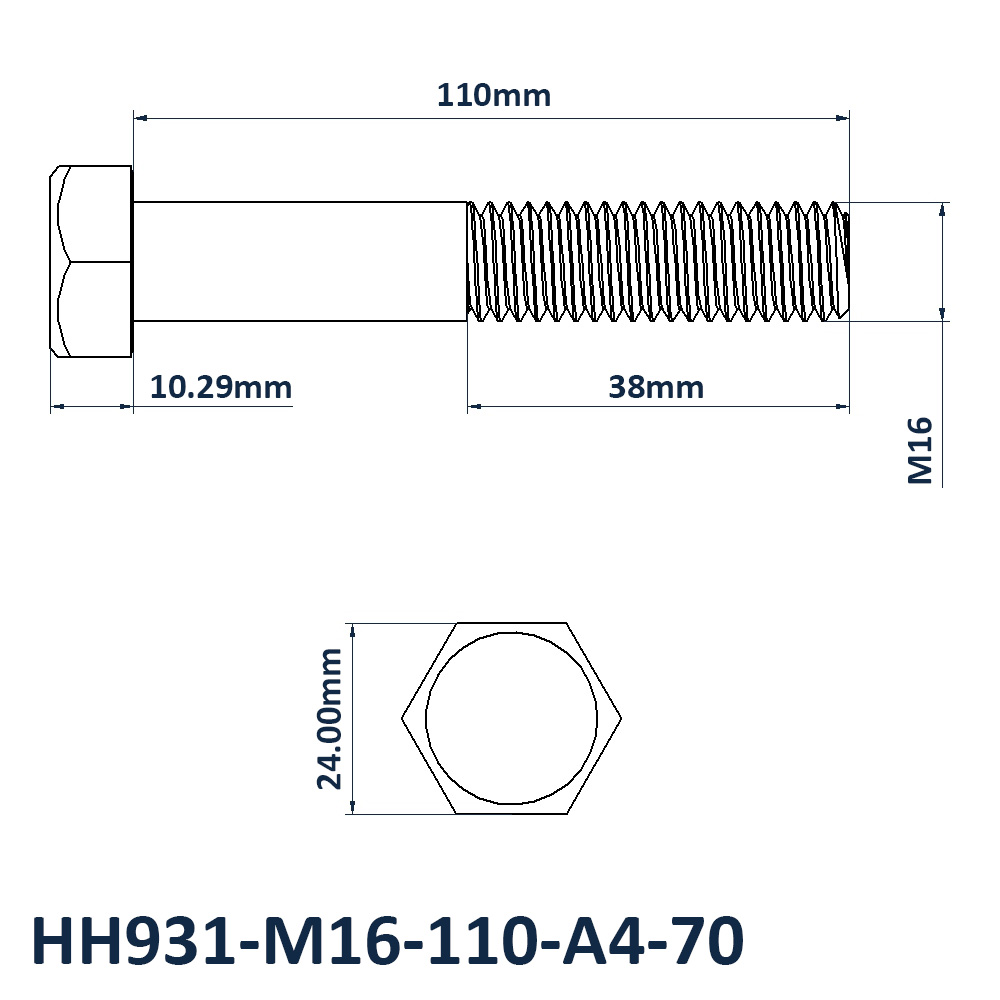

M16 x 110mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M16
- Length: 110mm
- Threaded Length: 38mm
- Pitch: 2.00mm
- Across Flats: 24mm
- Head Height: 10.3mm
- Material: A4-80 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
