M12 x 100mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £1.18 | £1.42 |
| 100 - 999 | £1.12 | £1.35 |
| 1000 + | £1.04 | £1.25 |
Product Specification
| Thread Size | M12 |
| Pitch | 1.75mm |
| Length | 100mm |
| Threaded Length | 30mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 19mm |
| Head Height | 7.9mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M12 x 100mm Hex Head Bolt DIN 931 | A4-70 Stainless Steel
When a bolted joint needs both shear support and threaded engagement, this M12 x 100mm hex head bolt provides a dependable DIN 931 option for signage and gantry work. Its 30mm threaded length gives a measured engagement zone for compatible nuts or tapped parts. It is a practical option for buyers searching for a A4-70 Stainless Steel hex bolt with measured DIN 931 geometry.
The partially threaded design is useful where the shank passes through one component and the threaded end clamps against the mating part, helping reduce movement in bracketed assemblies. The 30mm threaded section gives enough engagement for matched hardware while the 100mm overall length supports through-bolting and spaced components.
Common Applications
- Aligning mounting rails in signage and gantry work
- Replacing gantry plates using M12 metric hardware
- Fixing support frames where A4-70 Stainless Steel is specified
- Upgrading inspection panels requiring DIN 931 part threaded bolts

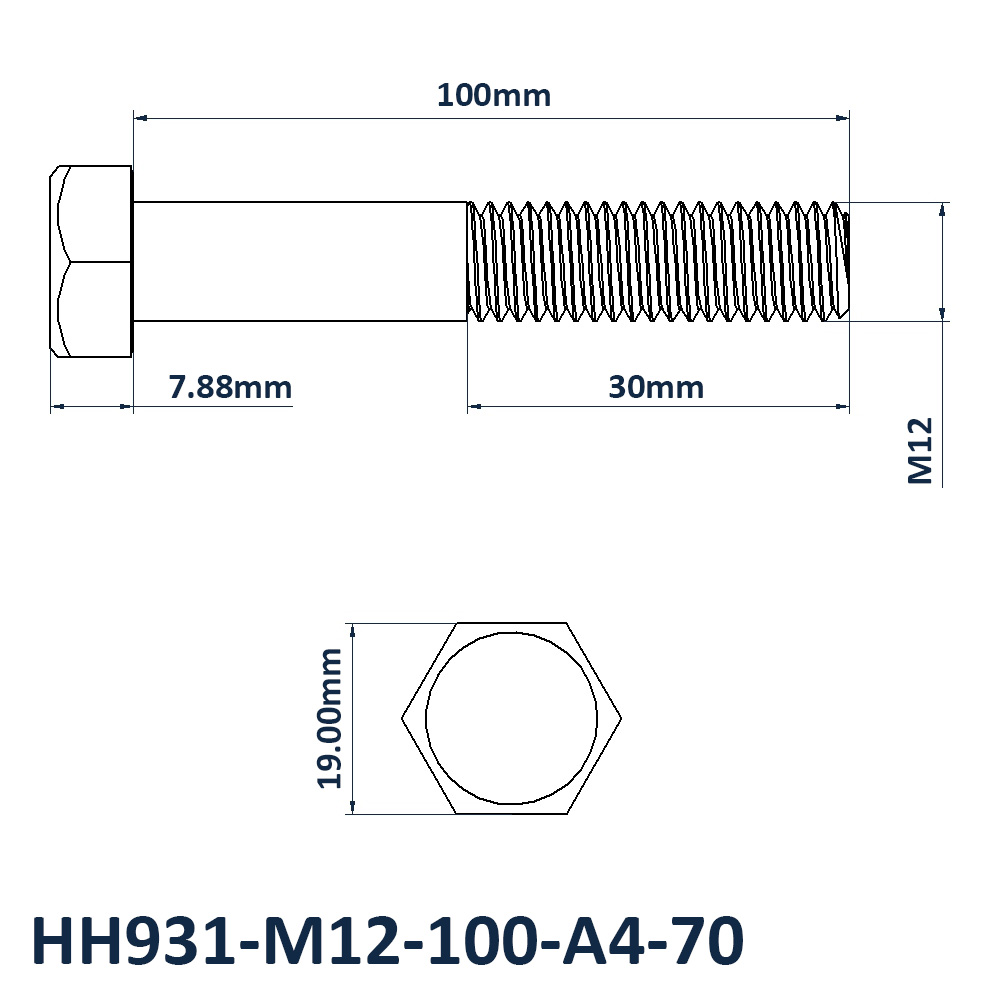

M12 x 100mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M12
- Length: 100mm
- Threaded Length: 30mm
- Pitch: 1.75mm
- Across Flats: 19mm
- Head Height: 7.9mm
- Material: A4-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
