M6 x 100mm Hex Bolt - Part Threaded (DIN 931) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.33 | £0.39 |
| 100 - 999 | £0.31 | £0.37 |
| 1000 + | £0.28 | £0.34 |
Product Specification
| Thread Size | M6 |
| Pitch | 1.00mm |
| Length | 100mm |
| Threaded Length | 18mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 10mm |
| Head Height | 4.2mm |
| Head Style | Hex Head |
| Standard | DIN 931 |
Frequently Bought Together
Total Price: £0.00
M6 x 100mm Hex Head Bolt DIN 931 | A4-70 Stainless Steel
This M6 x 100mm metric hex bolt supports marine and coastal hardware by combining a high-torque hex head with a part threaded shank. The 1.00mm pitch, 10mm across flats and 4.2mm head height give clear installation reference points. The result is a hex head machine bolt that suits precise replacement work as well as new build assemblies.
Use with suitable washers to distribute load and with matching nuts where a through-bolted joint is required. The 18mm threaded section gives enough engagement for matched hardware while the 100mm overall length supports through-bolting and spaced components.
Common Applications
- Joining dockside equipment in marine and coastal hardware
- Building external brackets using M6 metric hardware
- Aligning stainless assemblies where A4-70 Stainless Steel is specified
- Replacing wash-down fixtures requiring DIN 931 part threaded bolts

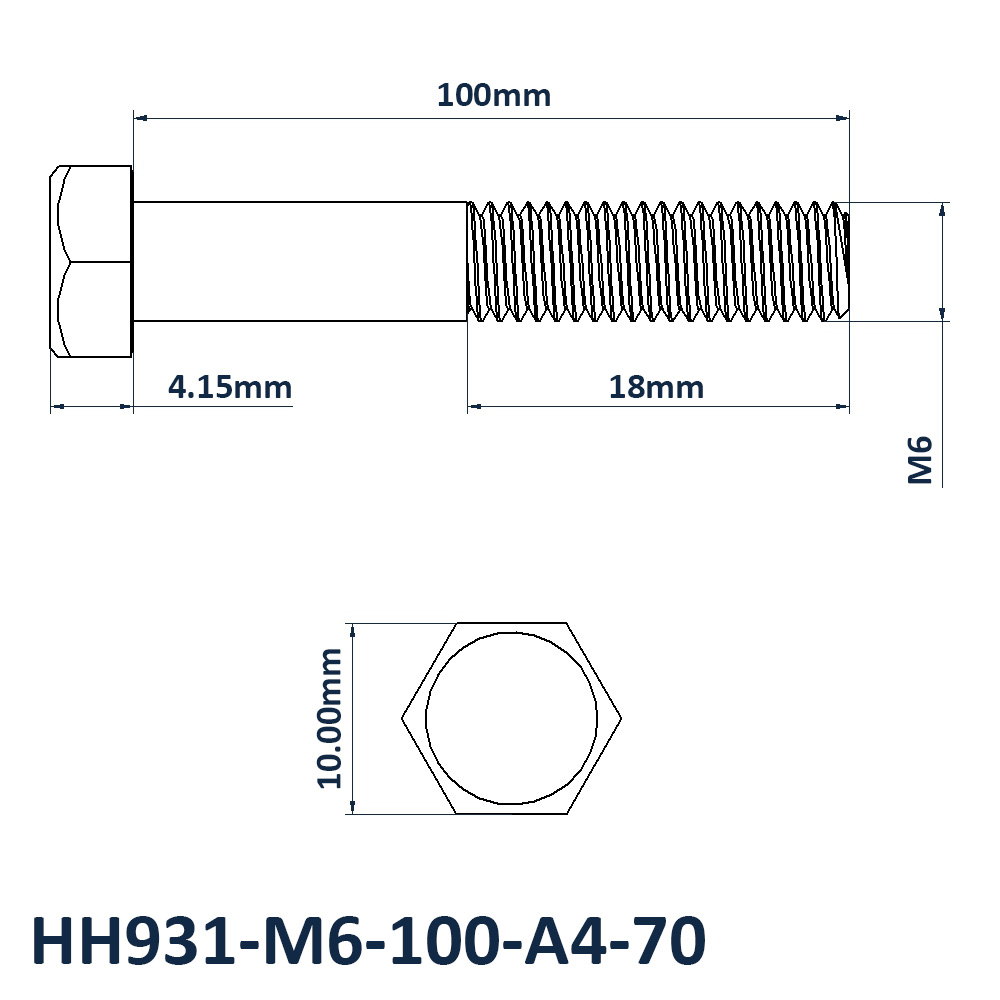

M6 x 100mm Hex Head Bolt DIN 931 Dimensions
- Thread Size: M6
- Length: 100mm
- Threaded Length: 18mm
- Pitch: 1.00mm
- Across Flats: 10mm
- Head Height: 4.2mm
- Material: A4-70 Stainless Steel
- Standard: DIN 931
- Head Style: Hex Head
Compatible Fasteners
Most commonly used with Washers and Nuts, these products are used to hold fasteners in place and join two or more parts together. We also offer Socket Head Screws
Our hex head screws are also available as fully threaded Hex Head Screws.
View our full Hex Head Bolts DIN 931 range.
