M5 x 16mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.06 | £0.07 |
| 100 - 999 | £0.06 | £0.07 |
| 1000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M5 |
| Length | 16mm |
| Pitch | 0.80mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 3.70mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 16mm Hex Set Screw | DIN 933 | A4-70 Stainless Steel
For machine service repairs, this M5 x 16mm Hex Set Screw provides a practical hex head fixing with thread coverage across the full length.
The A4-70 stainless steel grade is selected for outdoor, marine and washdown environments where resistance to corrosion is a key requirement. The hex head design gives better tool contact than a low profile drive when installers need reliable torque transfer during maintenance or assembly.
Common Applications
- Construction fixings, steel support plates and equipment bases
- Temporary fixtures, prototypes and adjustable mechanical test builds
- Washdown areas, coastal equipment and stainless steel fabrication
- Fabricated brackets, channel sections and structural steel details
Key Benefits For Assembly Work
- 0.8mm pitch provides predictable thread compatibility across standard metric components
- 3.7mm head height helps with clearance planning during equipment design
- A4 stainless steel hex set screw wording gives this SKU a clear use case within the broader DIN 933 set screw range

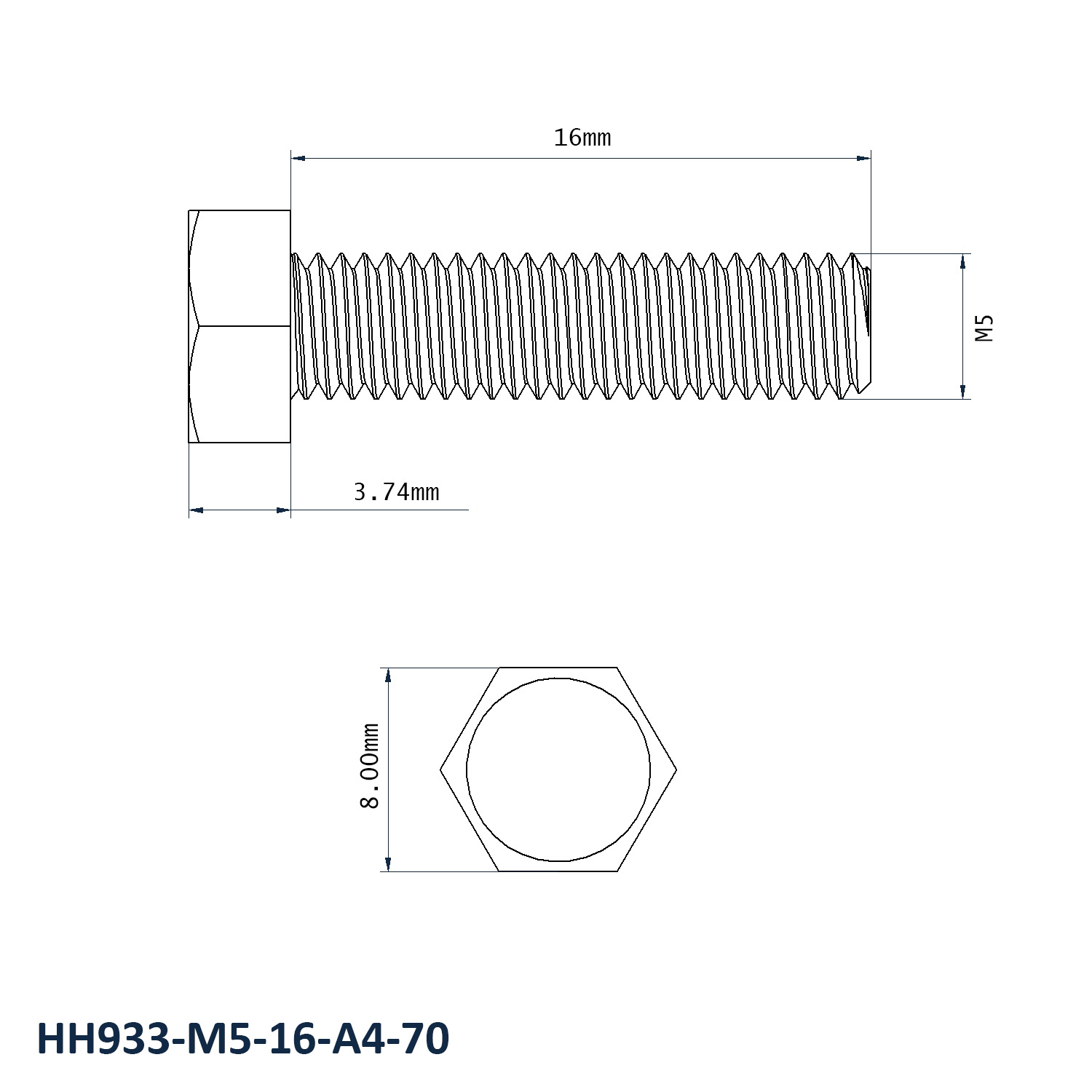

M5 x 16mm Hex Set Screw Dimensions
- Thread Size: M5
- Length: 16mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 3.7mm
- Material: A4-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
