M5 x 10mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.05 | £0.06 |
| 100 - 999 | £0.05 | £0.06 |
| 1000 + | £0.03 | £0.04 |
Product Specification
| Thread Size | M5 |
| Length | 10mm |
| Pitch | 0.80mm |
| Material | A4-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 3.70mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 10mm Hex Set Screw | DIN 933 | A4-70 Stainless Steel
This M5 x 10mm Hex Set Screw combines a fully threaded body with a hex head drive, giving installers a secure fixing for fabricated steel brackets.
The A4-70 stainless steel grade is selected for outdoor, marine and washdown environments where resistance to corrosion is a key requirement. Because the screw is threaded for its full 10mm length, it is useful where the fixing depth may change across brackets, plates or spacers.
Common Applications
- Marine hardware, outdoor brackets and exposed corrosion-prone assemblies
- Fabricated brackets, channel sections and structural steel details
- Inspection benches, test rigs and adjustable jig construction
- Marine fittings, exposed brackets and corrosion-sensitive installations
Why Choose This Fully Threaded Hex Screw?
- Fully threaded 10mm body helps support consistent engagement through the joint
- 8mm across flats head allows fitting with common spanners and socket tools
- Its compact length is useful where protrusion must be kept low or where the screw is working through thin plates and close-fitting components.

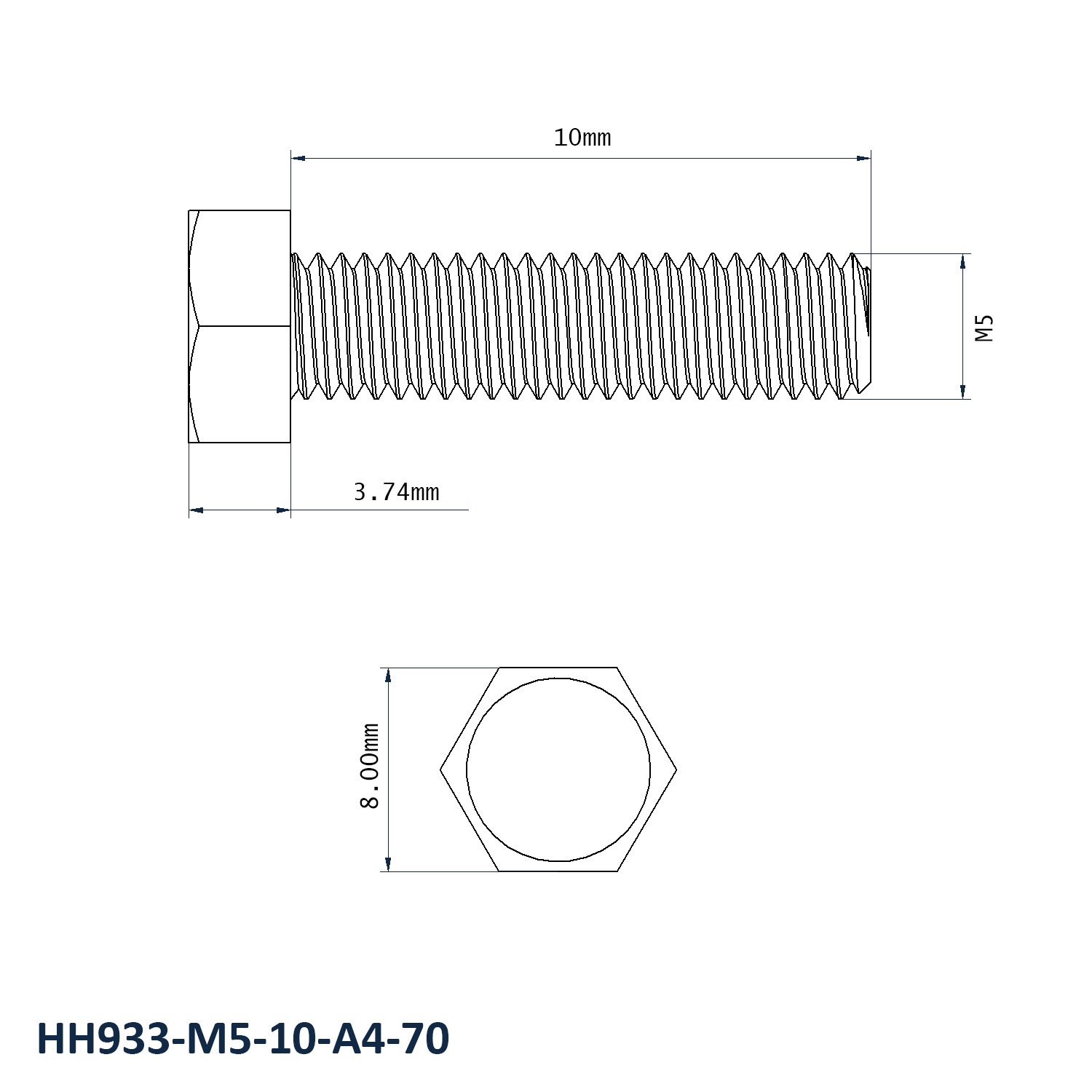

M5 x 10mm Hex Set Screw Dimensions
- Thread Size: M5
- Length: 10mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 3.7mm
- Material: A4-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
