M5 x 20mm Set Screw - Hex Head (DIN 933) | A2-70 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.04 | £0.05 |
| 100 - 999 | £0.03 | £0.04 |
| 1000 + | £0.03 | £0.03 |
Product Specification
| Thread Size | M5 |
| Length | 20mm |
| Pitch | 0.80mm |
| Material | A2-70 Stainless Steel |
| Across Flats | 8mm |
| Head Height | 3.70mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M5 x 20mm Hex Set Screw | DIN 933 | A2-70 Stainless Steel
This M5 x 20mm Hex Set Screw combines a fully threaded body with a hex head drive, giving installers a secure fixing for construction brackets.
The A2-70 stainless steel finish provides dependable corrosion resistance for machinery builds, enclosure work and general engineering use. The M5 thread size makes it easy to match against compatible nuts, washers and tapped components without changing the installation method.
Common Applications
- General engineering where a hex head screw is easier to access than an internal drive
- Fabricated brackets, channel sections and structural steel details
- Retail display frames, commercial furniture and modular support rails
- Automation cell guarding, robot perimeter frames and production safety panels
Key Benefits For Assembly Work
- Fully threaded 20mm body helps support consistent engagement through the joint
- 8mm across flats head allows fitting with common spanners and socket tools
- The shorter body suits brackets, covers and service panels where a neat fixing is required without excess thread beyond the joint.

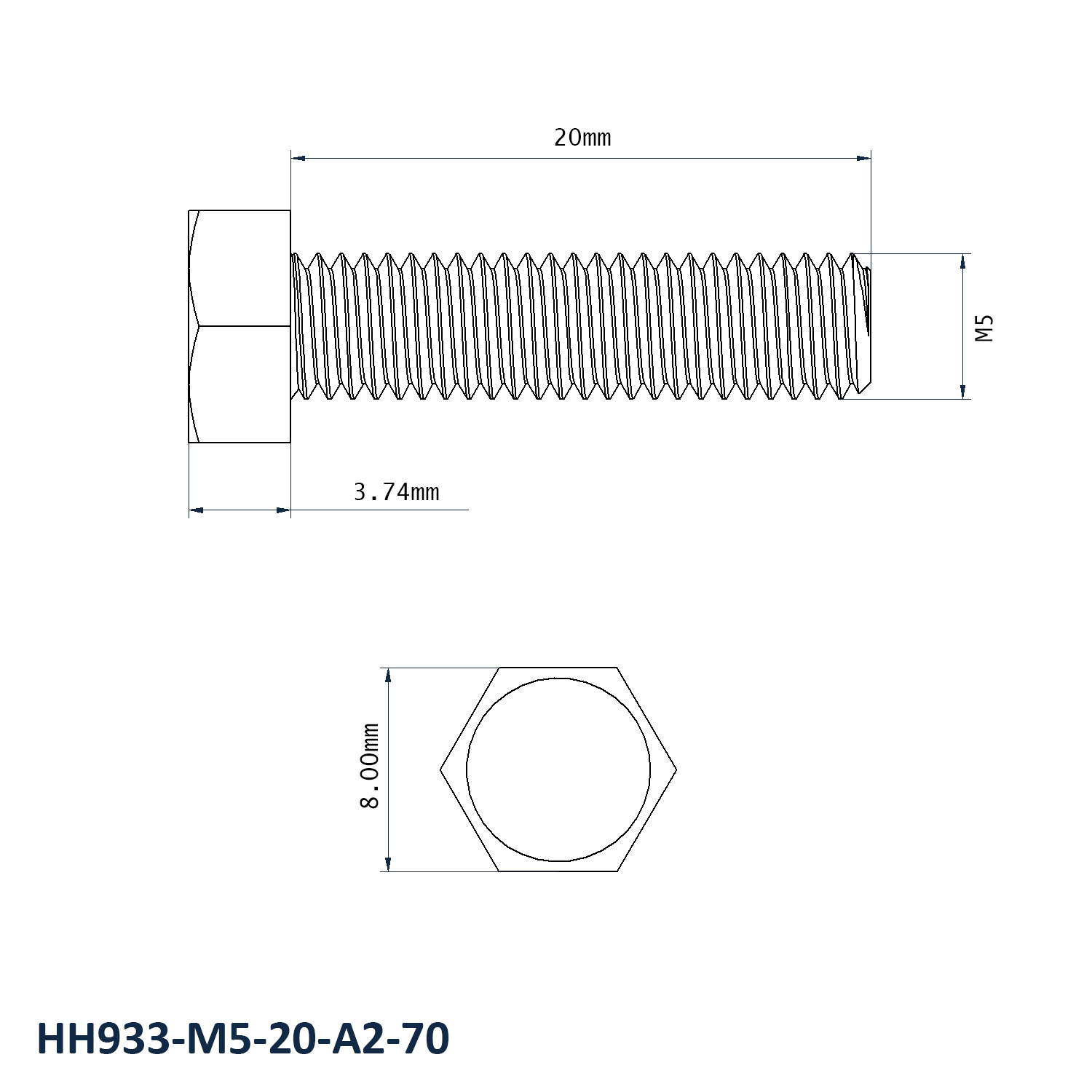

M5 x 20mm Hex Set Screw Dimensions
- Thread Size: M5
- Length: 20mm
- Pitch: 0.8mm
- Across Flats: 8mm
- Head Height: 3.7mm
- Material: A2-70 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
