M8 x 90mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.94 | £1.13 |
| 100 - 999 | £0.80 | £0.96 |
| 1000 + | £0.42 | £0.51 |
£1.13 / each
.png)
Product Specification
| Thread Size | M8 |
| Length | 90mm |
| Pitch | 1.25mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 13mm |
| Head Height | 5.50mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M8 x 90mm Hex Set Screw | DIN 933 | A4-80 Stainless Steel
The M8 x 90mm Hex Set Screw is a fully threaded DIN 933 fastener for applications where a standard spanner or socket needs to apply controlled tightening force.
The A4-80 stainless steel specification offers strong corrosion resistance with a higher tensile grade for exposed equipment, marine projects and demanding external assemblies. The 13mm across flats head gives a clear external drive point, while the 1.25mm pitch supports predictable matching with compatible nuts and threaded parts.
Common Applications
- External plant, chemical handling areas and marine-grade maintenance work
- Automotive fixtures, trailer repairs and plant equipment brackets
- Lightweight panel work, plastic assemblies and non-metallic fixings
- Temporary fixtures, prototypes and adjustable mechanical test builds
Key Benefits For Assembly Work
- Suitable for joining two or more parts with compatible nuts, washers or tapped holes
- M8 thread size helps simplify matching with existing fastener systems
- The longer shank is well suited to deeper assemblies, spacer packs and components that need extended thread engagement.

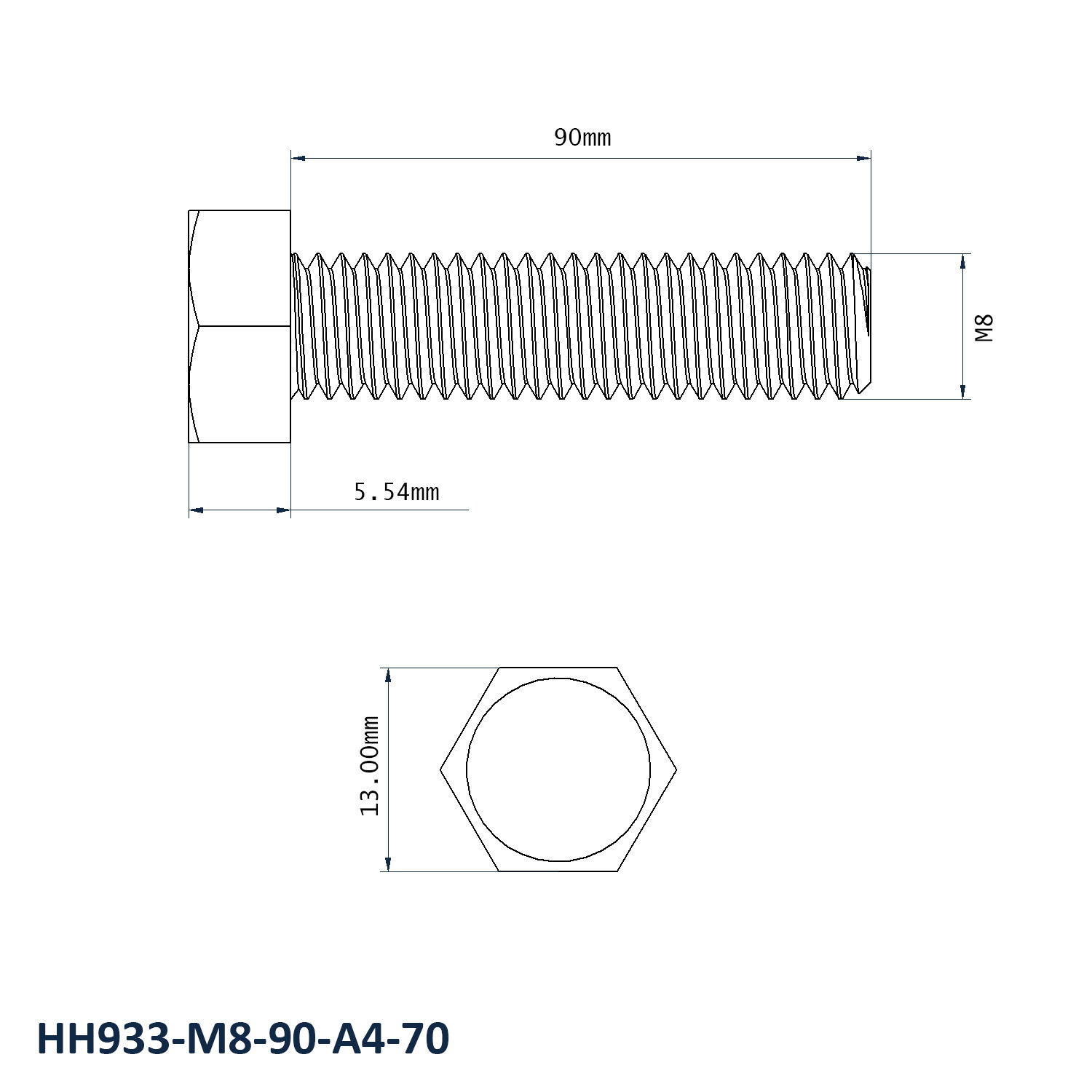

M8 x 90mm Hex Set Screw Dimensions
- Thread Size: M8
- Length: 90mm
- Pitch: 1.25mm
- Across Flats: 13mm
- Head Height: 5.5mm
- Material: A4-80 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
