M14 x 95mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £3.58 | £4.30 |
| 100 - 999 | £3.04 | £3.65 |
| 1000 + | £1.61 | £1.93 |
£4.30 / each
Product Specification
| Thread Size | M14 |
| Length | 95mm |
| Pitch | 2.00mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 22mm |
| Head Height | 9.10mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M14 x 95mm Hex Set Screw | DIN 933 | A4-80 Stainless Steel
The M14 x 95mm size gives this Hex Set Screw a useful fixing profile for automation cell guarding, with a hex head that can be tightened using conventional workshop tooling.
The A4-80 stainless steel specification offers strong corrosion resistance with a higher tensile grade for exposed equipment, marine projects and demanding external assemblies. Its DIN 933 format is especially useful where a fastener needs to pass through one component and clamp securely into a nut, tapped hole or insert.
Common Applications
- Automation cell guarding, robot perimeter frames and production safety panels
- Temporary fixtures, prototypes and adjustable mechanical test builds
- Marine hardware, outdoor brackets and exposed corrosion-prone assemblies
- Machinery guarding, motor mounts and equipment service panels
Key Benefits For Assembly Work
- 2mm pitch provides predictable thread compatibility across standard metric components
- 9.1mm head height helps with clearance planning during equipment design
- A4 stainless steel hex set screw wording gives this SKU a clear use case within the broader DIN 933 set screw range

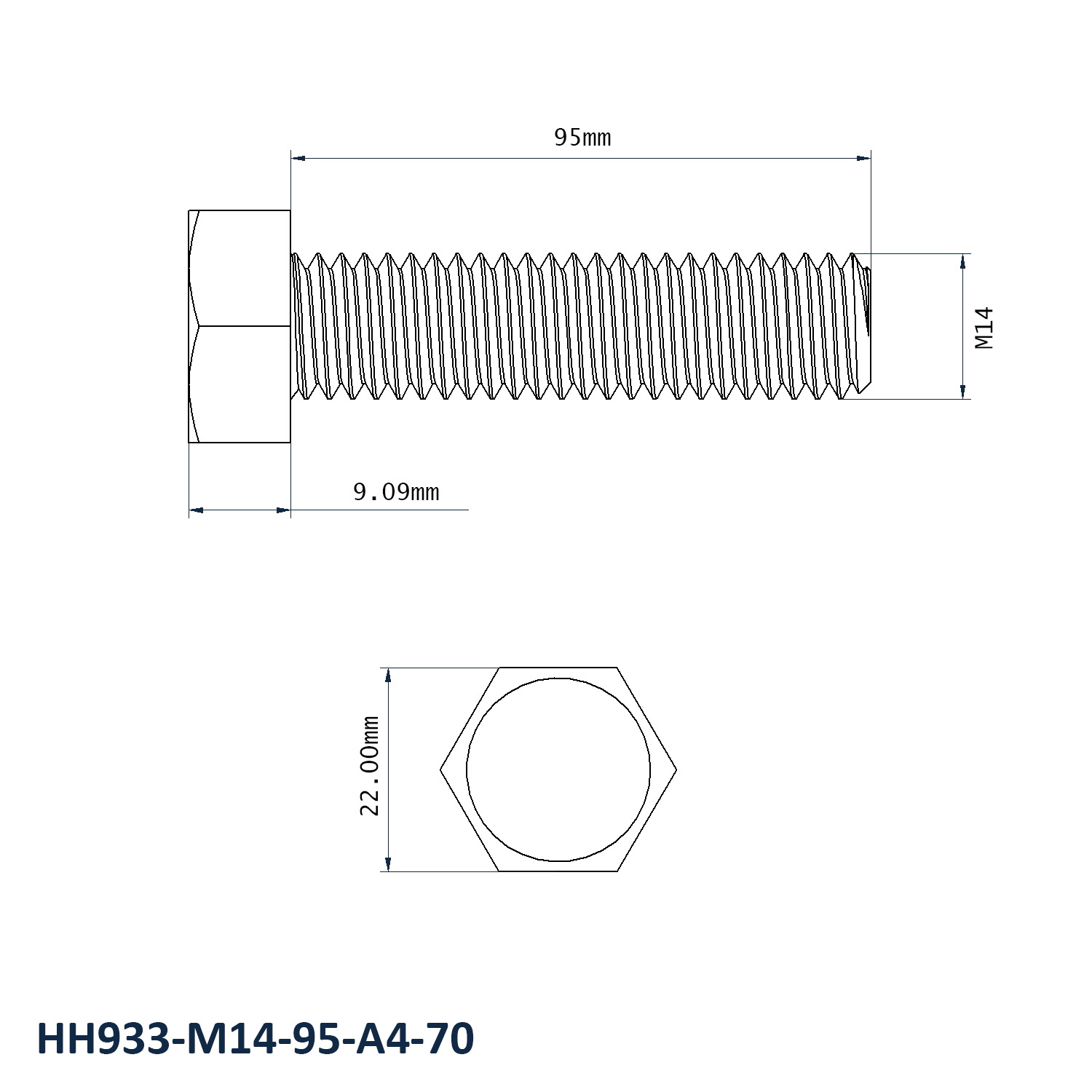

M14 x 95mm Hex Set Screw Dimensions
- Thread Size: M14
- Length: 95mm
- Pitch: 2mm
- Across Flats: 22mm
- Head Height: 9.1mm
- Material: A4-80 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
