M16 x 25mm Set Screw - Hex Head (DIN 933) | Marine Grade A4-80 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £2.04 | £2.45 |
| 100 - 999 | £1.73 | £2.08 |
| 1000 + | £0.92 | £1.10 |
£2.45 / each
.png)
Product Specification
| Thread Size | M16 |
| Length | 25mm |
| Pitch | 2.00mm |
| Material | A4-80 Stainless Steel |
| Across Flats | 24mm |
| Head Height | 10.30mm |
| Standard | DIN 933 |
| Head Style | Hex Head |
Frequently Bought Together
Total Price: £0.00
M16 x 25mm Hex Set Screw | DIN 933 | A4-80 Stainless Steel
This M16 x 25mm DIN 933 Hex Set Screw offers a dependable fixing choice for production line equipment, particularly where a fully threaded screw is preferred over a partially threaded bolt.
The A4-80 stainless steel specification offers strong corrosion resistance with a higher tensile grade for exposed equipment, marine projects and demanding external assemblies. The 10.3mm head height and 24mm across flats dimension make it easy to check tool access before fitting into machinery or framework.
Common Applications
- External plant, chemical handling areas and marine-grade maintenance work
- Inspection benches, test rigs and adjustable jig construction
- Laboratory frames, equipment stands and specialist instrument brackets
- Machinery guarding, motor mounts and equipment service panels
Installation Benefits
- Suitable for joining two or more parts with compatible nuts, washers or tapped holes
- M16 thread size helps simplify matching with existing fastener systems
- The shorter body suits brackets, covers and service panels where a neat fixing is required without excess thread beyond the joint.

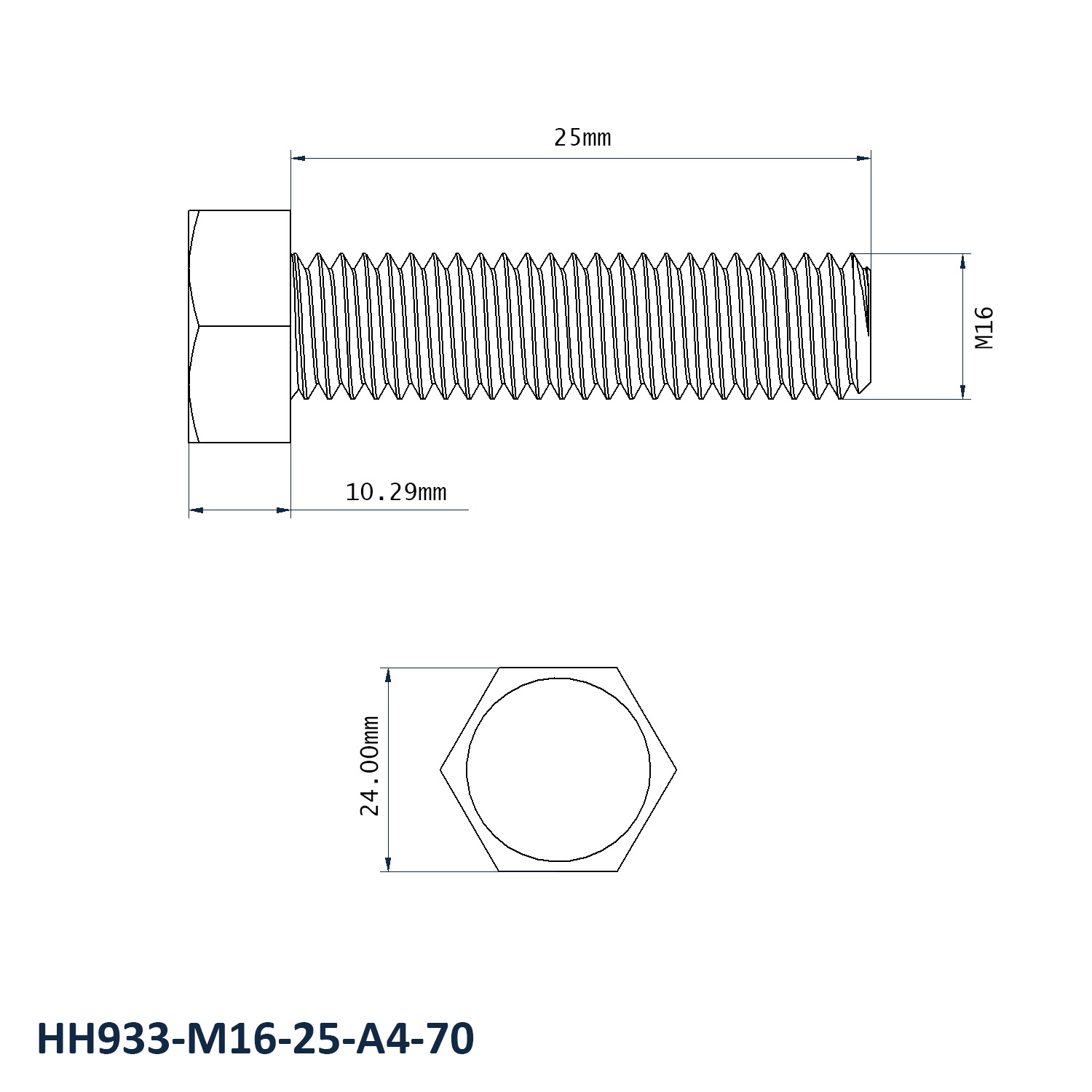

M16 x 25mm Hex Set Screw Dimensions
- Thread Size: M16
- Length: 25mm
- Pitch: 2mm
- Across Flats: 24mm
- Head Height: 10.3mm
- Material: A4-80 Stainless Steel
- Standard: DIN 933
- Head Style: Hex Head
Most commonly used in conjunction with Washers and Nuts, these products help hold fasteners in place when joining two or more parts together. We also offer Socket Head Screws
Need a partially threaded alternative? View our Hex Head Bolts range for DIN 931 style fixings.
View our full Hex Set Screws DIN 933 range.
