12.7mm Liquid Tight Hole Plug (Break Through) - 1.6mm-6.4mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.93 | £1.12 |
| 250 - 499 | £0.89 | £1.07 |
| 500 - 999 | £0.77 | £0.92 |
| 1000 - 2499 | £0.66 | £0.79 |
| 2500 - 4999 | £0.59 | £0.71 |
| 5000 + | £0.40 | £0.48 |
Product Specification
| Mounting Hole Diameter | 12.7mm |
| Panel Thickness | 1.6mm-6.4mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 2mm-5.1mm |
| Head Diameter | 23.4mm |
| Overall Height | 15.9mm |
| Thickness At Locking Finger Steps | 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm |
Frequently Bought Together
Total Price: £0.00

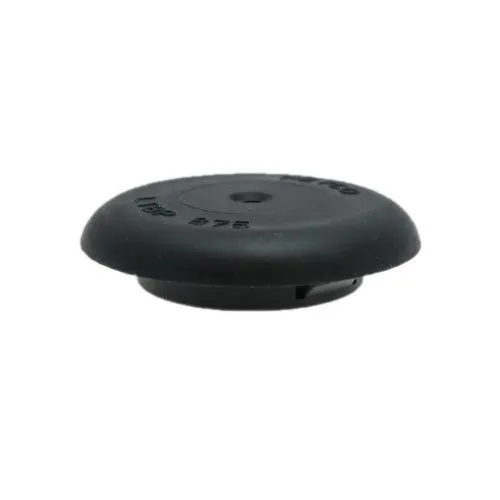

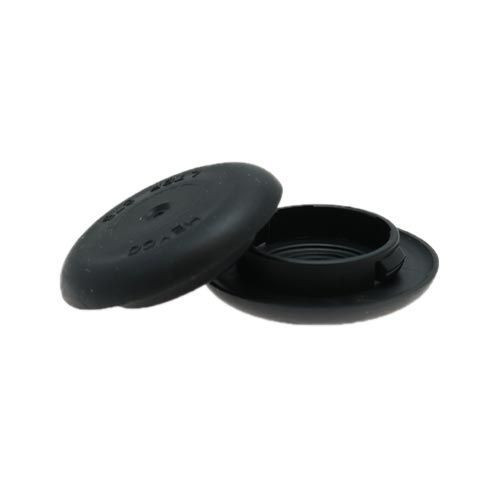

12.7mm Liquid Tight Break Through Plug | 2mm-5.1mm Cable Range | Nylon & TPE
Suitable for compact electrical assemblies with restricted access behind the panel, this sealed cable entry plug is sized for a 12.7mm mounting hole with a cable range of 2mm-5.1mm. The stepped locking finger detail helps the plug hold correctly in the panel while the centre membrane provides the break-through function.
Its stepped finger profile provides incremental seating points, helping the plug adapt to supported panel thicknesses. This is useful for equipment manufacturers working across multiple metal or plastic enclosure formats. This version suits panel thicknesses from 1.6mm-6.4mm, giving a wider fitting window for thicker cabinet walls, moulded boxes and fabricated housings.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Sealing compact cut-outs on control cabinets
- Routing cables into small machine guards
- Protecting access points on instrumentation housings
- Maintaining panel finish on production line equipment

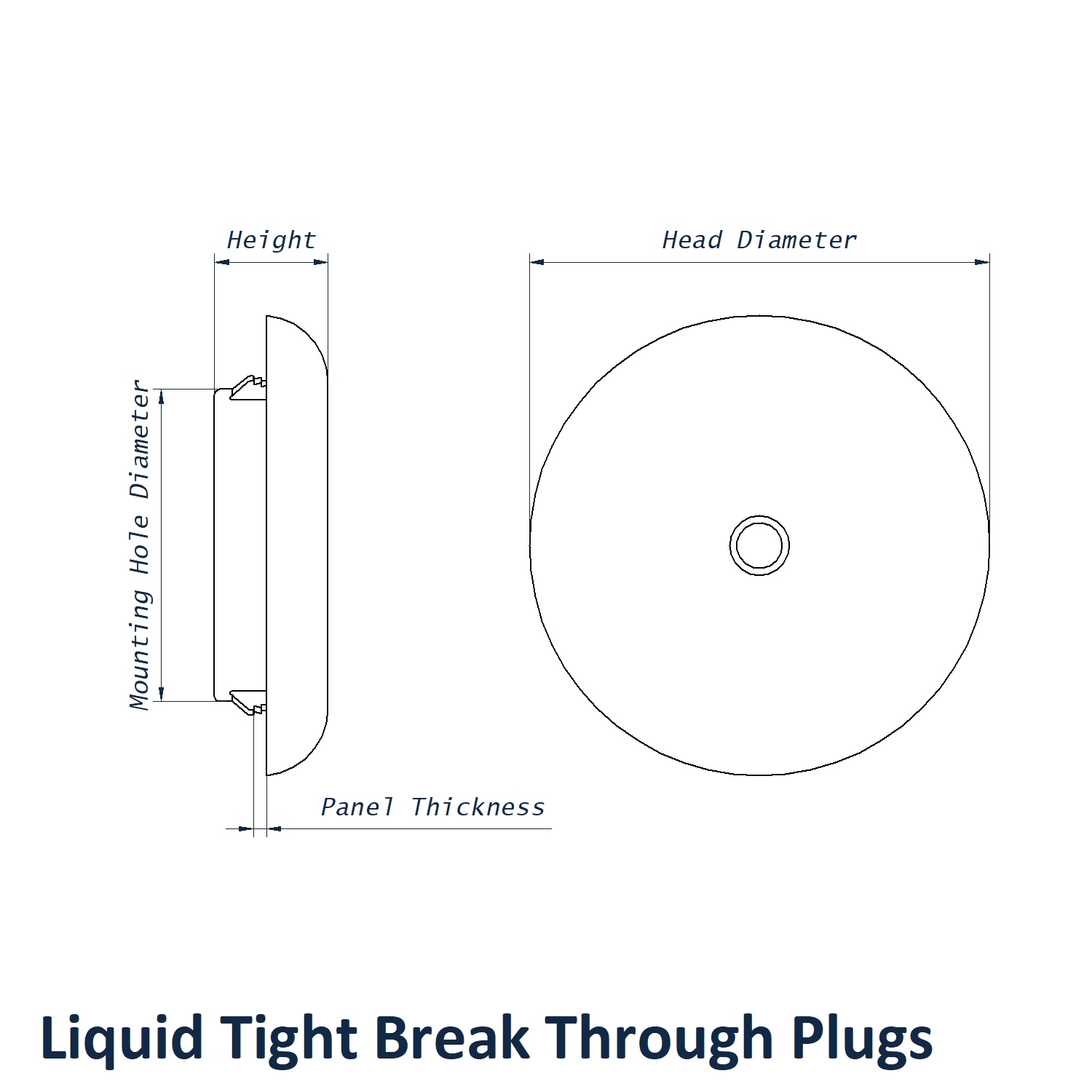

12.7mm x 15.9mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 12.7mm
- Cable Diameter Range: 2mm-5.1mm
- Head Diameter: 23.4mm
- Overall Height: 15.9mm
- Panel Thickness: 1.6mm-6.4mm
- Thickness At Locking Finger Steps: 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
