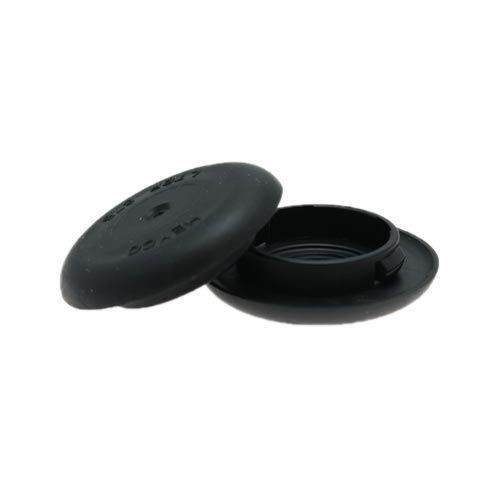

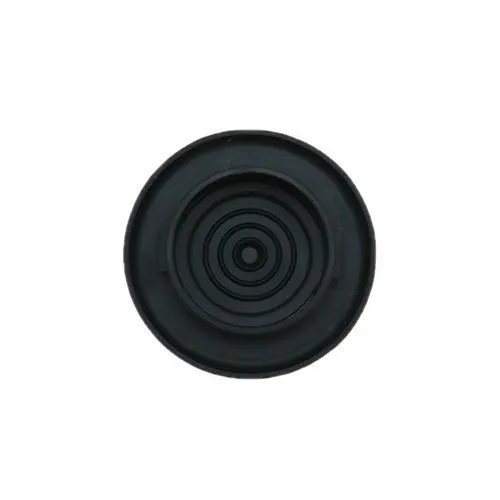

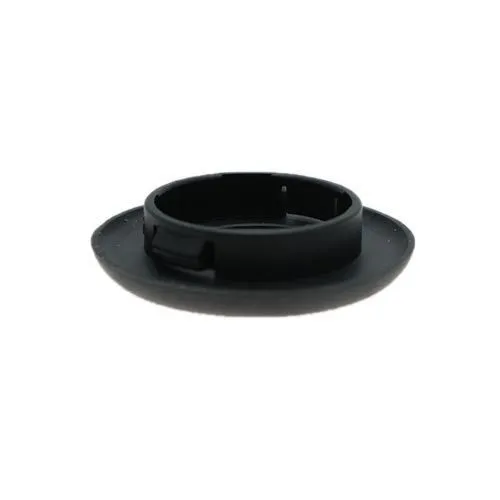

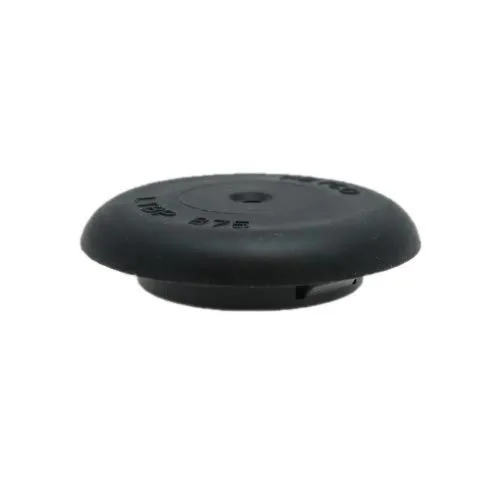

25.4mm Liquid Tight Hole Plug (Break Through) - 1.6mm-6.4mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.06 | £1.27 |
| 250 - 499 | £1.01 | £1.21 |
| 500 - 999 | £0.87 | £1.04 |
| 1000 - 2499 | £0.75 | £0.90 |
| 2500 - 4999 | £0.67 | £0.80 |
| 5000 + | £0.46 | £0.55 |
Product Specification
| Mounting Hole Diameter | 25.4mm |
| Panel Thickness | 1.6mm-6.4mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 5.1mm-18.2mm |
| Head Diameter | 36.3mm |
| Overall Height | 15.9mm |
| Thickness At Locking Finger Steps | 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm |
Frequently Bought Together
Total Price: £0.00
25.4mm Liquid Tight Break Through Plug | 5.1mm-18.2mm Cable Range | Nylon & TPE
Specified for automation panels where spare cable entries must remain protected, this control panel cable plug gives panel builders a flexible way to seal a spare entry without losing future routing options. The cable diameter range of 5.1mm-18.2mm makes it suitable for a controlled break-through around matching cables.
For OEM manufacture, the same plug type can support closed-hole protection and cable-through use. This simplifies stock control where spare panel apertures may be used differently between equipment variants. This version suits panel thicknesses from 1.6mm-6.4mm, giving a wider fitting window for thicker cabinet walls, moulded boxes and fabricated housings.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Sealing medium-sized cable routes on automation panels
- Reducing water and dirt entry on junction boxes
- Supporting OEM cabinet variants with spare entries
- Providing liquid tight protection around routed cables

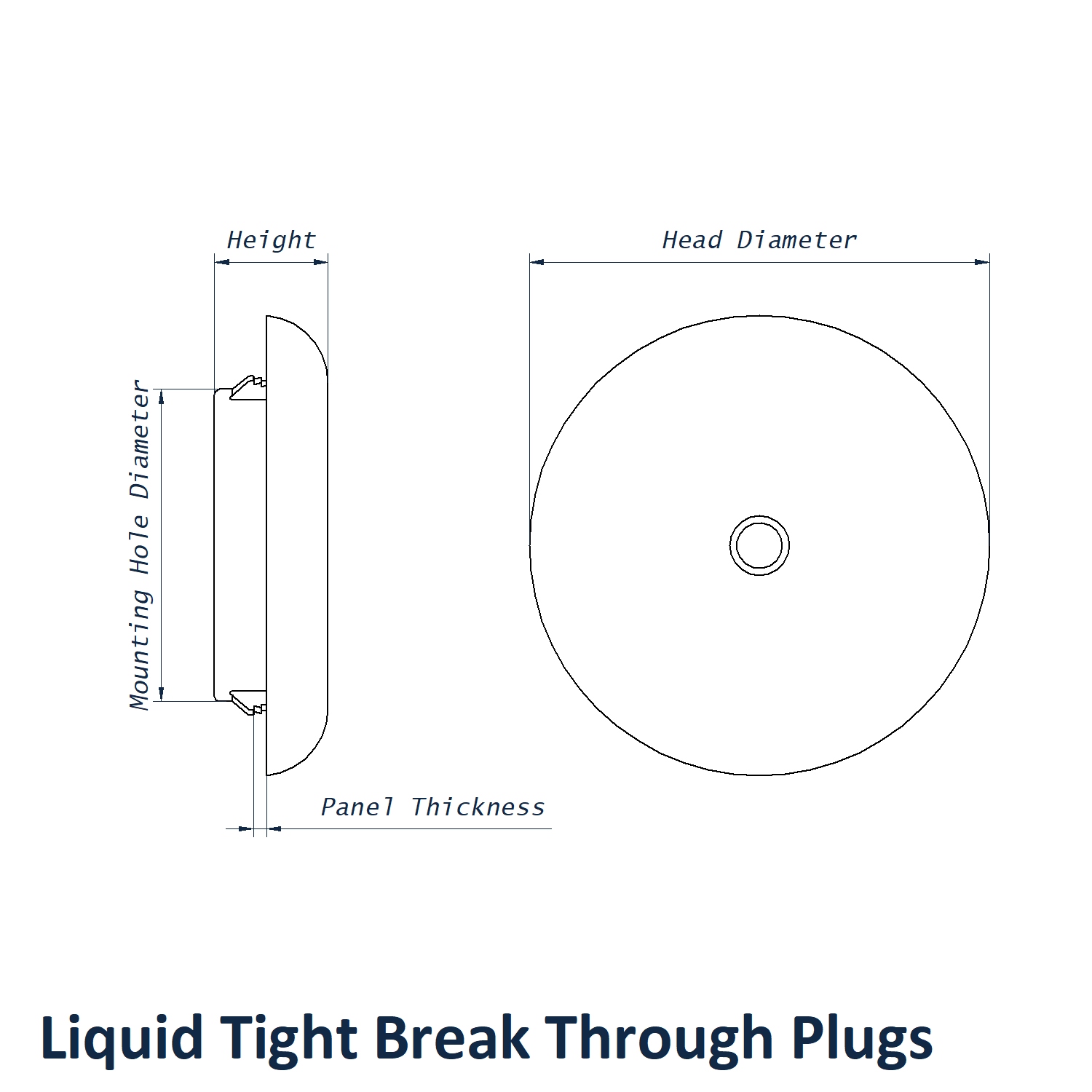

25.4mm x 15.9mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 25.4mm
- Cable Diameter Range: 5.1mm-18.2mm
- Head Diameter: 36.3mm
- Overall Height: 15.9mm
- Panel Thickness: 1.6mm-6.4mm
- Thickness At Locking Finger Steps: 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
