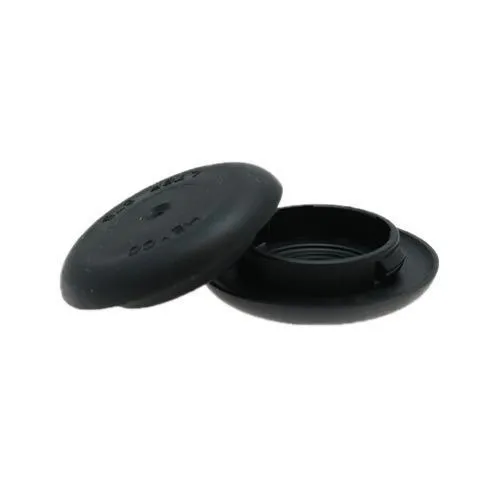

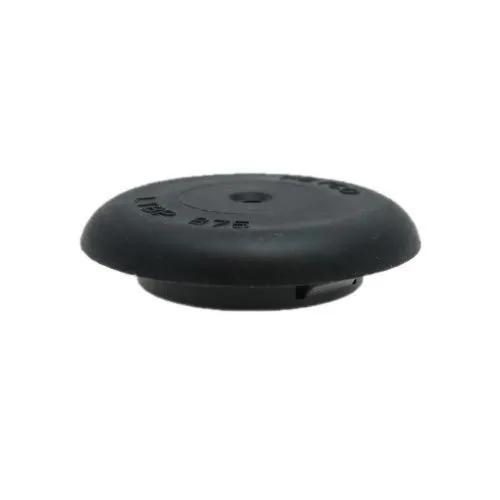

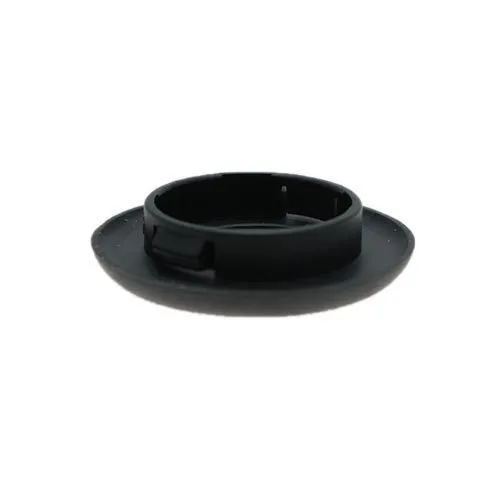

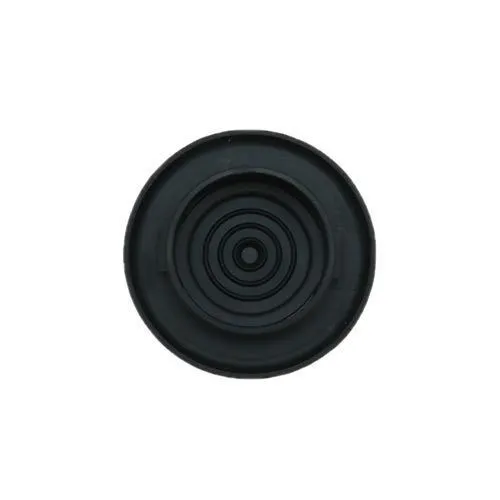

34.9mm Liquid Tight Hole Plug (Break Through) - 1.6mm-6.4mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.48 | £1.78 |
| 250 - 499 | £1.41 | £1.69 |
| 500 - 999 | £1.23 | £1.48 |
| 1000 - 2499 | £1.08 | £1.30 |
| 2500 + | £0.98 | £1.18 |
Product Specification
| Mounting Hole Diameter | 34.9mm |
| Panel Thickness | 1.6mm-6.4mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 7.6mm-24.1mm |
| Head Diameter | 45.7mm |
| Overall Height | 17.0mm |
| Thickness At Locking Finger Steps | 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm |
Frequently Bought Together
Total Price: £0.00
34.9mm Liquid Tight Break Through Plug | 7.6mm-24.1mm Cable Range | Nylon & TPE
A strong option for heavier cable routes in outdoor electrical boxes, this large liquid tight panel plug covers larger panel openings while keeping the break-through cable entry function available. The Nylon & TPE construction is suitable for electrical, industrial and equipment protection work.
For larger cut-outs, the flexible membrane gives a controlled break-through point while the Nylon body keeps the plug seated. This supports robust sealing across industrial cabinets and outdoor electrical equipment. This version suits panel thicknesses from 1.6mm-6.4mm, giving a wider fitting window for thicker cabinet walls, moulded boxes and fabricated housings.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Sealing larger enclosure cut-outs for heavier cable routes
- Supporting outdoor power and control cabinets
- Protecting panels during transport and installation
- Providing flexible cable bushing function when opened
34.9mm x 17.0mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 34.9mm
- Cable Diameter Range: 7.6mm-24.1mm
- Head Diameter: 45.7mm
- Overall Height: 17.0mm
- Panel Thickness: 1.6mm-6.4mm
- Thickness At Locking Finger Steps: 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
