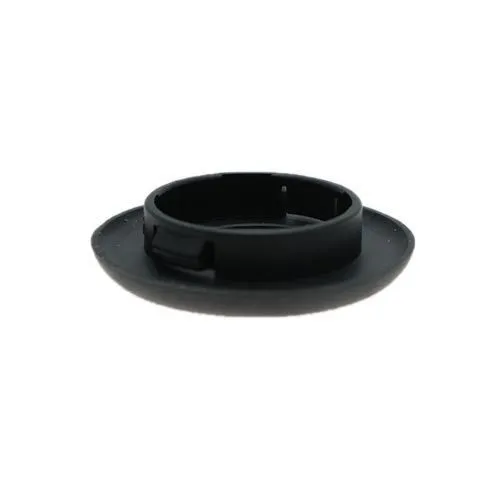

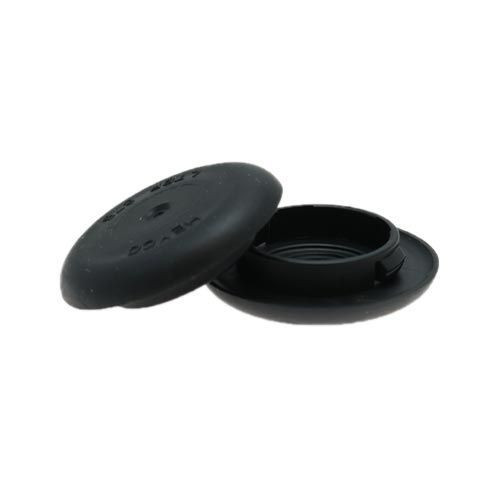

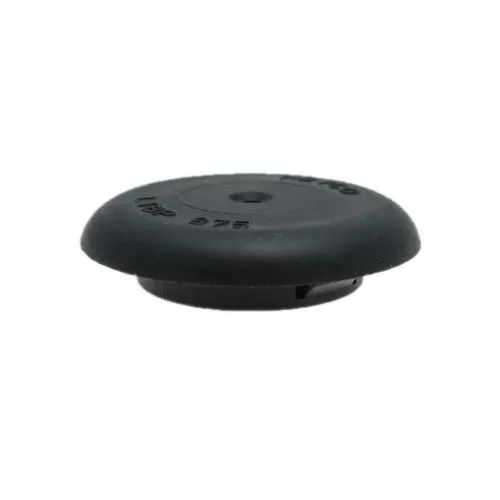

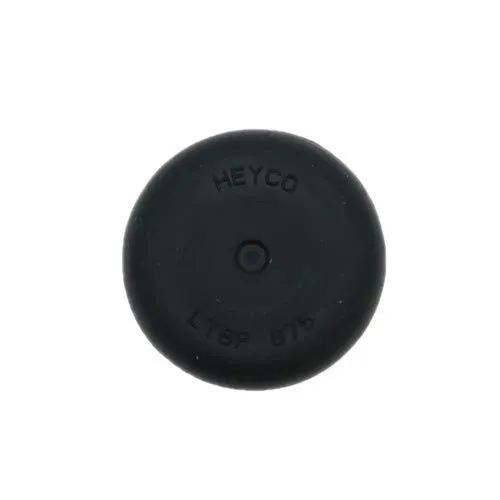

15.9mm Liquid Tight Hole Plug (Break Through) - 1.6mm-6.4mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £0.97 | £1.16 |
| 250 - 499 | £0.92 | £1.10 |
| 500 - 999 | £0.79 | £0.95 |
| 1000 - 2499 | £0.68 | £0.82 |
| 2500 - 4999 | £0.61 | £0.73 |
| 5000 + | £0.42 | £0.50 |
Product Specification
| Mounting Hole Diameter | 15.9mm |
| Panel Thickness | 1.6mm-6.4mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 3.3mm-9.5mm |
| Head Diameter | 26.2mm |
| Overall Height | 15.9mm |
| Thickness At Locking Finger Steps | 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm |
Frequently Bought Together
Total Price: £0.00
15.9mm Liquid Tight Break Through Plug | 3.3mm-9.5mm Cable Range | Nylon & TPE
Providing a dual-purpose solution for fast panel builds where tool-free fitting keeps installation efficient, this push-fit break through plug can be left intact as a sealed plug or opened by cable insertion. The Nylon & TPE build gives a useful balance of rigidity, grip and flexible sealing around the cable route.
The design gives maintenance teams a clean way to close a hole during commissioning before final cable layouts are agreed. If a cable route is later needed, the membrane can be opened while the surrounding plug body remains in place. This version suits panel thicknesses from 1.6mm-6.4mm, giving a wider fitting window for thicker cabinet walls, moulded boxes and fabricated housings.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Closing panel holes before final wiring
- Supporting field modification of cable routes
- Protecting cabinet interiors from moisture
- Providing push-fit sealing on electrical housings
15.9mm x 15.9mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 15.9mm
- Cable Diameter Range: 3.3mm-9.5mm
- Head Diameter: 26.2mm
- Overall Height: 15.9mm
- Panel Thickness: 1.6mm-6.4mm
- Thickness At Locking Finger Steps: 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
