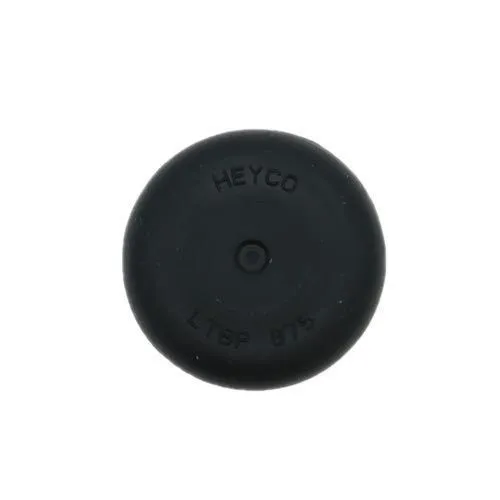

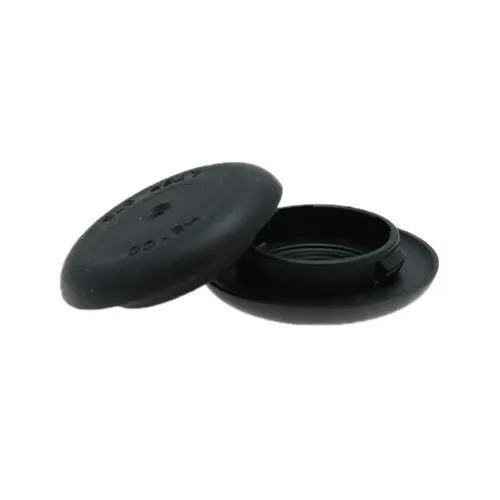

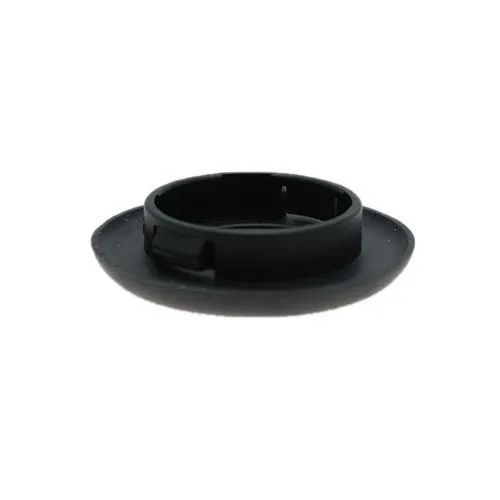

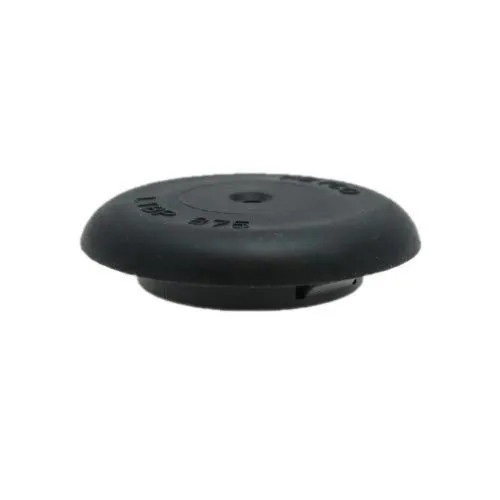

38.1mm Liquid Tight Hole Plug (Break Through) - 1.6mm-6.4mm Panel | Nylon & TPE
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 249 | £1.52 | £1.83 |
| 250 - 499 | £1.45 | £1.74 |
| 500 - 999 | £1.27 | £1.52 |
| 1000 - 2499 | £1.11 | £1.33 |
| 2500 + | £1.01 | £1.21 |
Product Specification
| Mounting Hole Diameter | 38.1mm |
| Panel Thickness | 1.6mm-6.4mm |
| Material | Nylon & TPE |
| Cable Diameter Range | 9.5mm-26.9mm |
| Head Diameter | 49.0mm |
| Overall Height | 17.0mm |
| Thickness At Locking Finger Steps | 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm |
Frequently Bought Together
Total Price: £0.00
38.1mm Liquid Tight Break Through Plug | 9.5mm-26.9mm Cable Range | Nylon & TPE
Used across plant rooms, vehicle builds and exposed service equipment, this weather-resistant cable entry plug supports sealed panel finishing and cable entry flexibility in one component. The head diameter of 49.0mm helps cover the mounting area cleanly while the membrane assists with liquid tight cable routing.
The component is suited to both original assembly and maintenance replacement. Its combination of push-fit installation, flexible sealing and liquid tight performance makes it a useful part for UK electrical and machinery teams. This version suits panel thicknesses from 1.6mm-6.4mm, giving a wider fitting window for thicker cabinet walls, moulded boxes and fabricated housings.
What Are Liquid Tight Break Through Plugs?
Liquid tight break through plugs are co-moulded sealing parts used to close panel holes while retaining the option for cable entry. The centre membrane can remain intact as a closed seal or be pierced by a cable to form a protected pass-through, helping electrical enclosures resist water, dust and contamination.
Common Applications
- Covering large service holes in electrical equipment
- Routing larger cables through sealed panel openings
- Protecting machinery enclosures from spray and dust
- Supporting maintenance teams with quick push-fit replacement

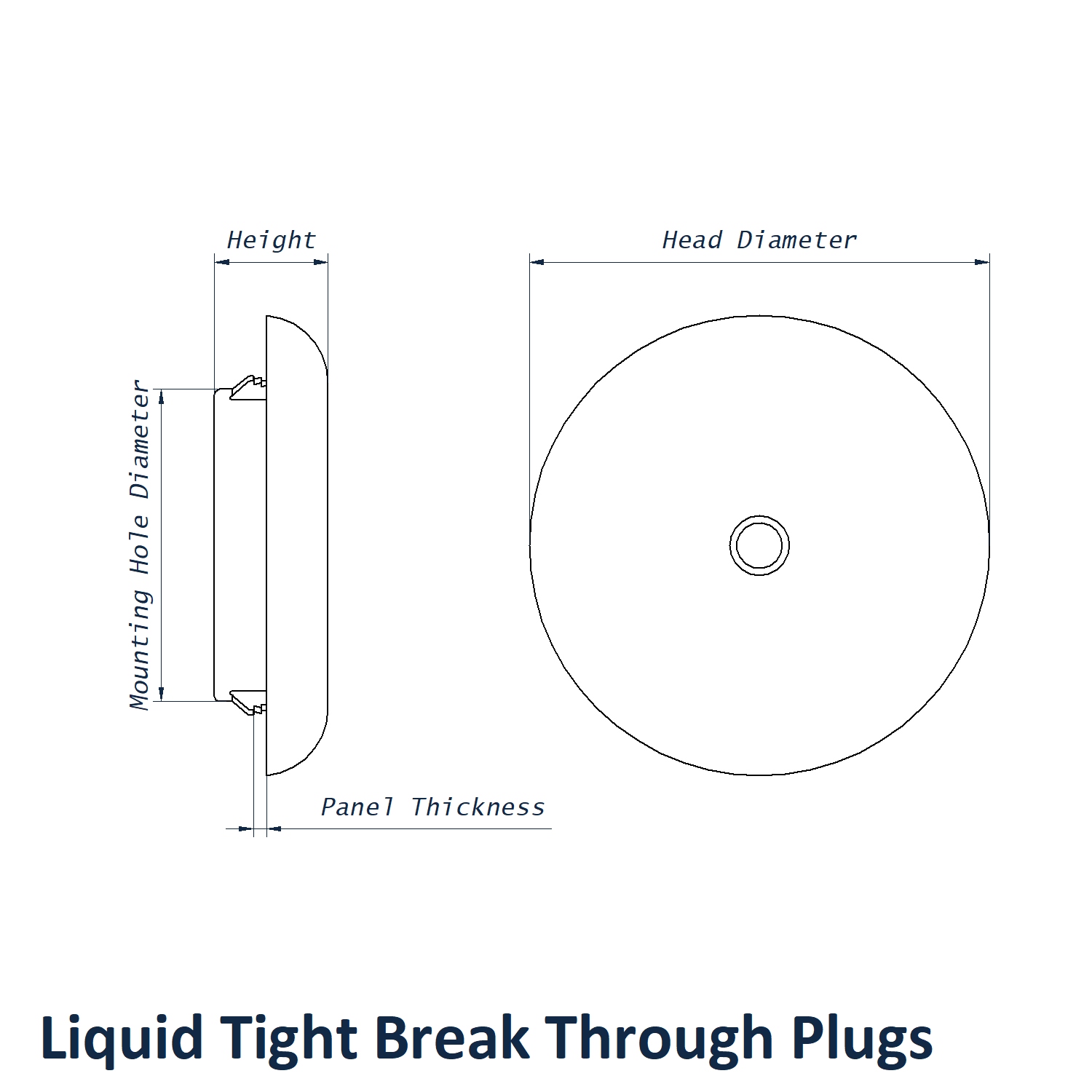

38.1mm x 17.0mm Liquid Tight Break Through Plug Dimensions
- Mounting Hole Diameter: 38.1mm
- Cable Diameter Range: 9.5mm-26.9mm
- Head Diameter: 49.0mm
- Overall Height: 17.0mm
- Panel Thickness: 1.6mm-6.4mm
- Thickness At Locking Finger Steps: 1.6mm/ 2mm/ 2.4mm/ 3.2mm/ 4mm/ 5.1mm/ 6.4mm
- Material: Nylon & TPE
Sealing Performance
- IP67 and IP68 rated protection when correctly fitted
- Break-through membrane for closed-hole or cable-through use
- Temperature resistance from -40°C to +100°C
- HB flammability rating
- UL 635 and UL File E15331 recognised under the Component Program
View our full Liquid Tight Break Through Plugs range.
Product Support and Trade Orders
For help matching liquid tight break through plugs to panel thickness, cable diameter or enclosure protection requirements, speak with the Vital Parts team on 01233 713581. We can support sizing checks, samples where available and repeat trade orders for electrical, engineering and OEM projects.
