M10 x 22mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Product code:
LSC7984-M10-22-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £2.56 | £3.07 |
| 10 - 24 | £2.05 | £2.46 |
| 25 - 49 | £1.53 | £1.84 |
| 50 - 99 | £1.28 | £1.54 |
| 100 - 499 | £1.15 | £1.38 |
| 500 - 999 | £1.02 | £1.23 |
| 1000 + | £0.77 | £0.92 |
£3.07
/ each
Quantity:
Product Specification
| Thread Size | M10 |
| Length | 22mm |
| Threaded Length | Fully Threaded |
| Pitch | 1.50mm |
| Head Diameter | 16.0mm |
| Head Height | 6.0mm |
| Drive | H7 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M10 x 22mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Designed for restricted head clearance, this M10 x 22mm low head socket cap screw provides a compact fixing where a standard cap head would sit too high.
With a 6mm head height and 16mm head diameter, the low head design reduces snag points while the H7 drive keeps installation controlled.
Common Applications
- Agricultural equipment applications for joining workshop jigs and fixtures with M10 thread
- Retaining hvac ducting plates using a 22mm low head stainless fixing
- Food processing equipment assemblies where low head height helps prevent fouling
- Fastening commercial equipment panels where A4 stainless material is specified

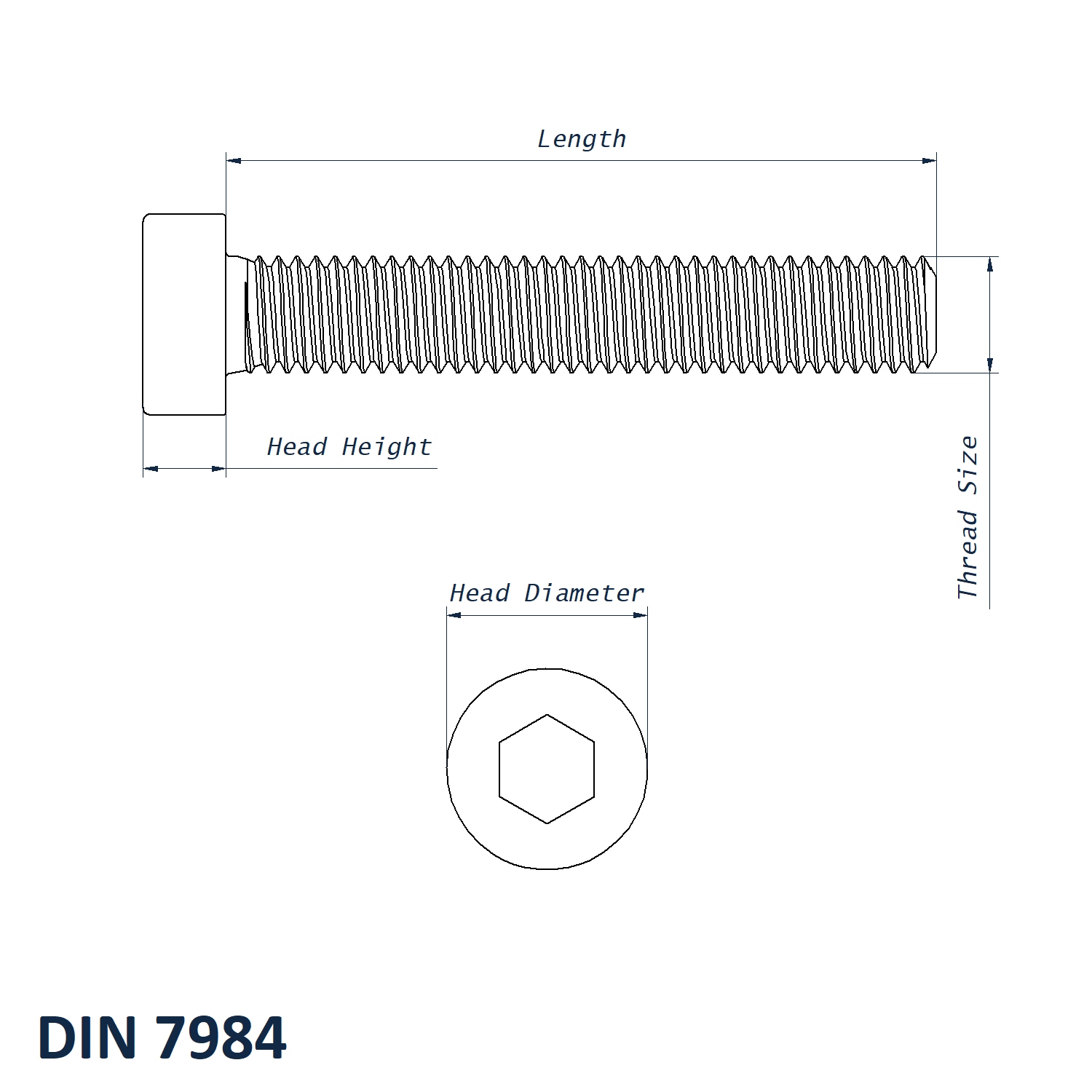

M10 x 22mm Low Head Socket Cap Screw Dimensions
- Thread Size: M10
- Length: 22mm
- Threaded Length: Fully Threaded
- Pitch: 1.50mm
- Head Diameter: 16.0mm
- Head Height: 6.0mm
- Drive: H7
- Material: A4-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
Need help or buying in bulk?
For help choosing DIN 7984 low head socket cap screws, bulk pricing or lead time checks, call 01233 713581.
