M10 x 100mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.15 | £3.78 |
| 10 - 24 | £2.67 | £3.21 |
| 25 - 49 | £2.19 | £2.63 |
| 50 - 99 | £1.72 | £2.06 |
| 100 + | £1.53 | £1.84 |
Product Specification
| Thread Size | M10 |
| Length | 100mm |
| Threaded Length | 26mm |
| Pitch | 1.50mm |
| Head Diameter | 16.0mm |
| Head Height | 6.0mm |
| Drive | H7 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M10 x 100mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Designed for restricted head clearance, this M10 x 100mm low head socket cap screw provides a compact fixing where a standard cap head would sit too high.
The A2-70 stainless grade provides dependable corrosion resistance for general engineering, machinery and interior or sheltered external applications. The H7 drive accepts a matching Allen key or hex key, helping installers apply torque cleanly in production, servicing and repair work.
Common Applications
- Engineering applications for fixing low clearance machine guards with M10 thread
- Carrying out maintenance repairs using a 100mm low head stainless fixing
- Vehicle body building assemblies where quick top-side installation saves assembly time
- Retaining hvac ducting plates where A2 stainless material is specified

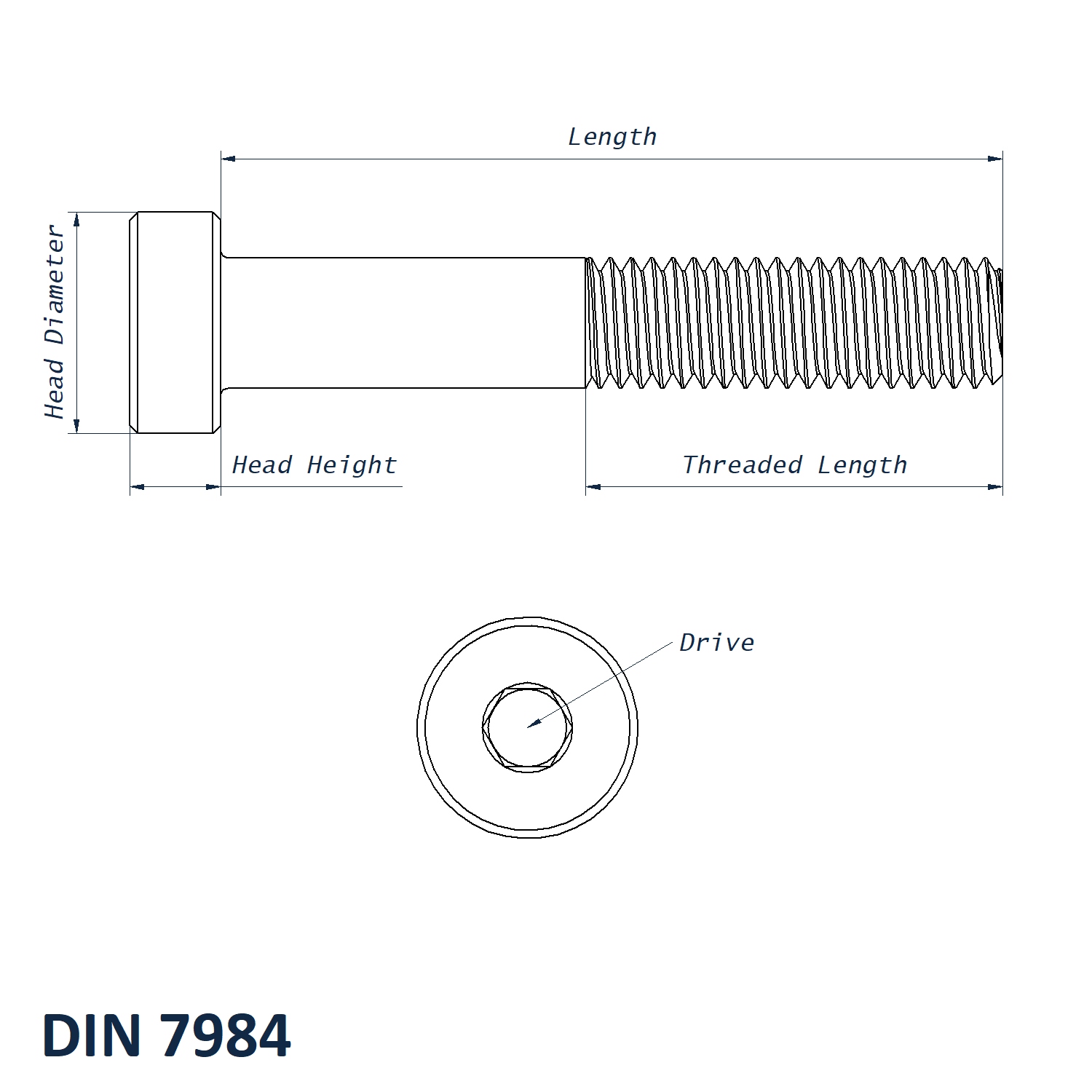

M10 x 100mm Low Head Socket Cap Screw Dimensions
- Thread Size: M10
- Length: 100mm
- Threaded Length: 26mm
- Pitch: 1.50mm
- Head Diameter: 16.0mm
- Head Height: 6.0mm
- Drive: H7
- Material: A2-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
Alternative Product Name
This size may also be searched for as M10 Thin Allen Key Caps, because it uses a reduced head profile and is tightened with an Allen key or hex key in low clearance assemblies.
View our full Low Head Socket Cap Screws DIN 7984 range.
