M10 x 22mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Product code:
LSC7984-M10-22-A2-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.65 | £1.98 |
| 10 - 24 | £1.32 | £1.58 |
| 25 - 49 | £0.99 | £1.19 |
| 50 - 99 | £0.82 | £0.99 |
| 100 - 499 | £0.74 | £0.89 |
| 500 - 999 | £0.66 | £0.79 |
| 1000 + | £0.49 | £0.59 |
£1.98
/ each
Quantity:
Product Specification
| Thread Size | M10 |
| Length | 22mm |
| Threaded Length | Fully Threaded |
| Pitch | 1.50mm |
| Head Diameter | 16.0mm |
| Head Height | 6.0mm |
| Drive | H7 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A2-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M10 x 22mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Developed for precise fastening where space is limited, this M10 x 22mm low head screw keeps the fixing compact without removing the benefit of hex socket drive.
Specified with M10 thread and 1.50mm pitch, this fixing helps maintain accurate alignment in mechanical builds where head clearance is a key constraint.
Common Applications
- Sheet metal fabrication applications for building OEM equipment housings with M10 thread
- Fixing low clearance machine guards using a 22mm low head stainless fixing
- Storage systems assemblies where corrosion resistance is needed in regular service
- Joining workshop jigs and fixtures where A2 stainless material is specified

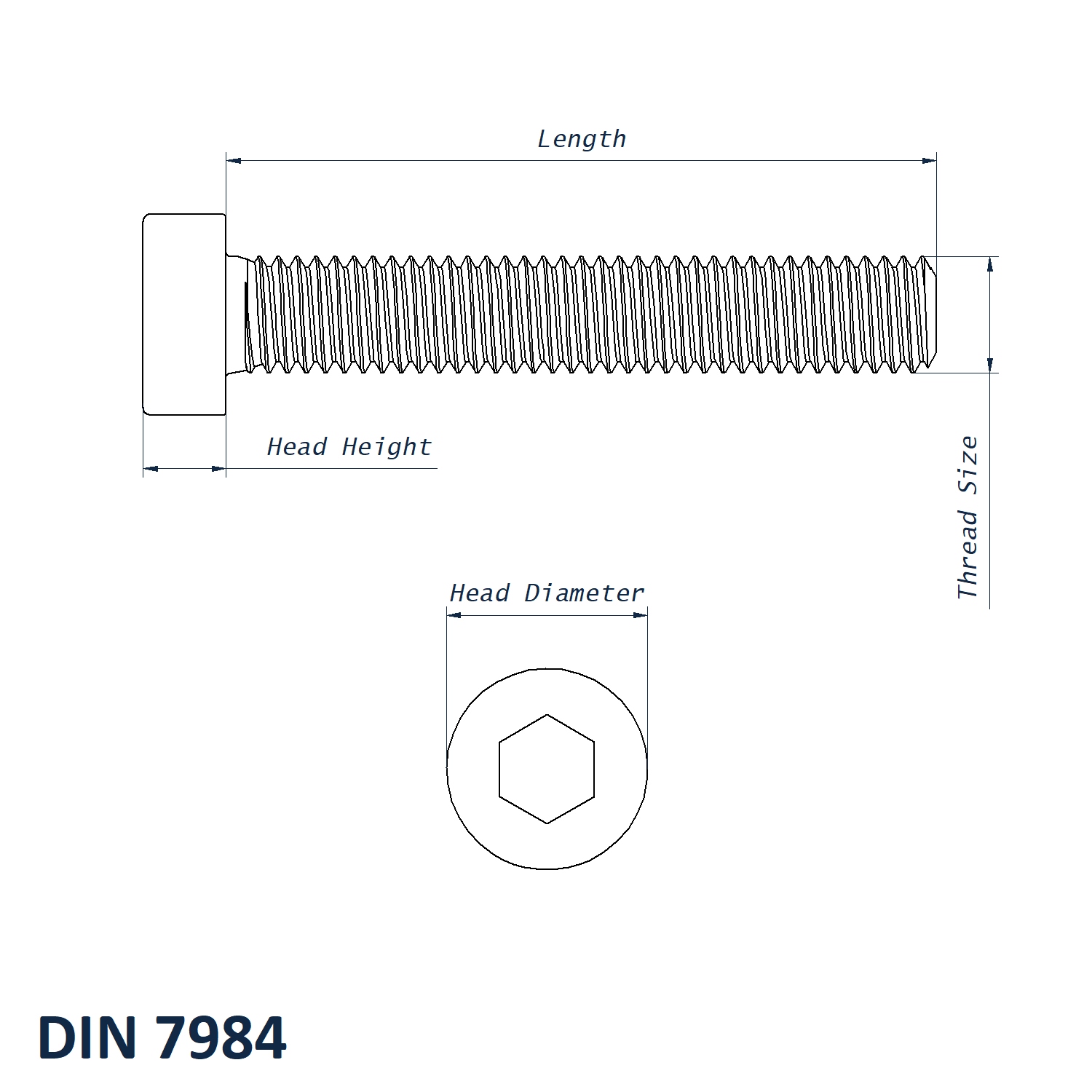

M10 x 22mm Low Head Socket Cap Screw Dimensions
- Thread Size: M10
- Length: 22mm
- Threaded Length: Fully Threaded
- Pitch: 1.50mm
- Head Diameter: 16.0mm
- Head Height: 6.0mm
- Drive: H7
- Material: A2-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
