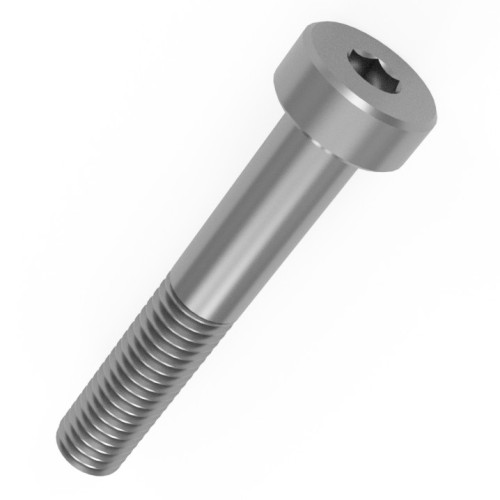

M12 x 100mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £5.73 | £6.88 |
| 10 - 24 | £3.83 | £4.59 |
| 25 - 49 | £2.87 | £3.44 |
| 50 - 99 | £2.67 | £3.21 |
| 100 + | £2.39 | £2.87 |
Product Specification
| Thread Size | M12 |
| Length | 100mm |
| Threaded Length | 30mm |
| Pitch | 1.75mm |
| Head Diameter | 18.0mm |
| Head Height | 7.0mm |
| Drive | H8 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A2-70 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M12 x 100mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Suitable for access panels, guards and housings, this M12 x 100mm low head Allen screw is used where clearance over the fastener is restricted.
The A2-70 stainless grade provides dependable corrosion resistance for general engineering, machinery and interior or sheltered external applications. The shallow cap head is useful where covers, sliders or surrounding components pass close to the fixing point.
Common Applications
- Agricultural equipment applications for fixing vehicle panels with M12 thread
- Mounting low profile support rails using a 100mm low head stainless fixing
- Food processing equipment assemblies where accurate alignment helps keep covers seated correctly
- Building oem equipment housings where A2 stainless material is specified

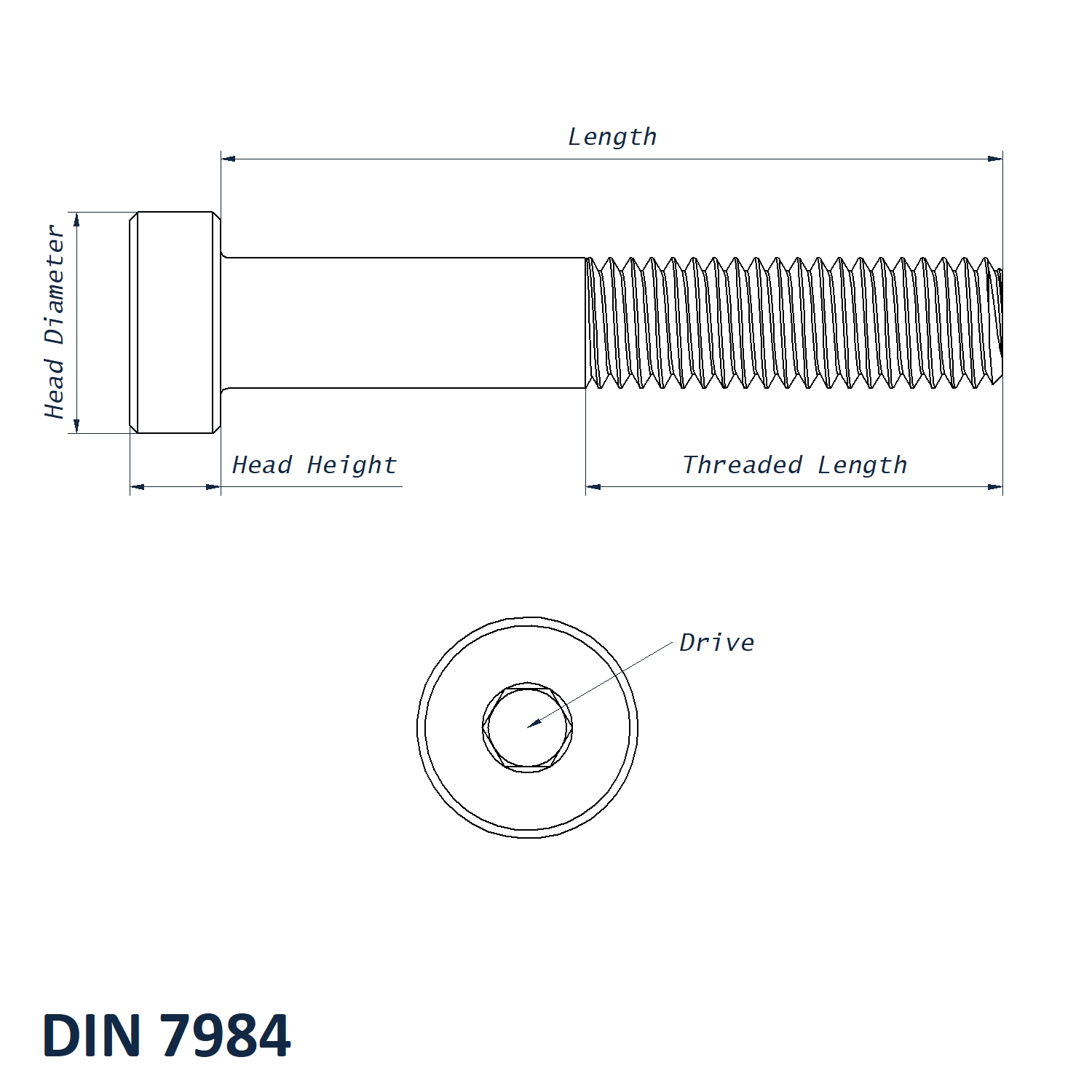

M12 x 100mm Low Head Socket Cap Screw Dimensions
- Thread Size: M12
- Length: 100mm
- Threaded Length: 30mm
- Pitch: 1.75mm
- Head Diameter: 18.0mm
- Head Height: 7.0mm
- Drive: H8
- Material: A2-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
Alternative Product Name
This size may also be searched for as M12 Thin Allen Key Caps, because it uses a reduced head profile and is tightened with an Allen key or hex key in low clearance assemblies.
View our full Low Head Socket Cap Screws DIN 7984 range.
