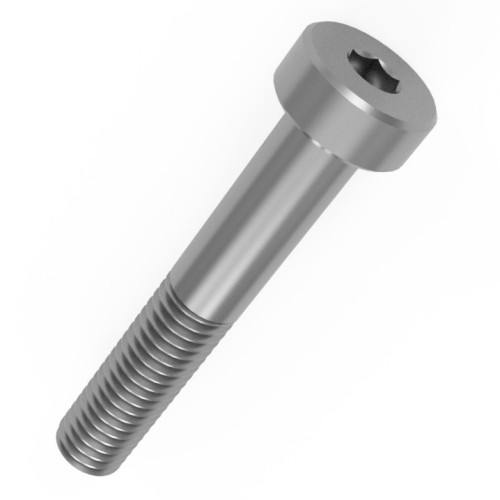

M12 x 16mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Product code:
LSC7984-M12-16-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £4.89 | £5.87 |
| 10 - 24 | £3.26 | £3.91 |
| 25 - 49 | £2.45 | £2.94 |
| 50 - 99 | £2.28 | £2.74 |
| 100 + | £2.04 | £2.45 |
£5.87
/ each
Quantity:
Product Specification
| Thread Size | M12 |
| Length | 16mm |
| Threaded Length | Fully Threaded |
| Pitch | 1.75mm |
| Head Diameter | 18.0mm |
| Head Height | 7.0mm |
| Drive | H8 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M12 x 16mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Manufactured to DIN 7984, this M12 x 16mm low profile socket screw gives a neat fastening option for assemblies with limited space above the head.
The Fully Threaded threaded length and 1.75mm pitch support consistent engagement, making this screw practical for repeat assembly work and maintenance access.
Common Applications
- Laboratory equipment applications for servicing fabricated assemblies with M12 thread
- Fastening marine access plates using a 16mm low head stainless fixing
- Signage assemblies where corrosion resistance is needed in regular service
- Mounting signage frames where A4 stainless material is specified

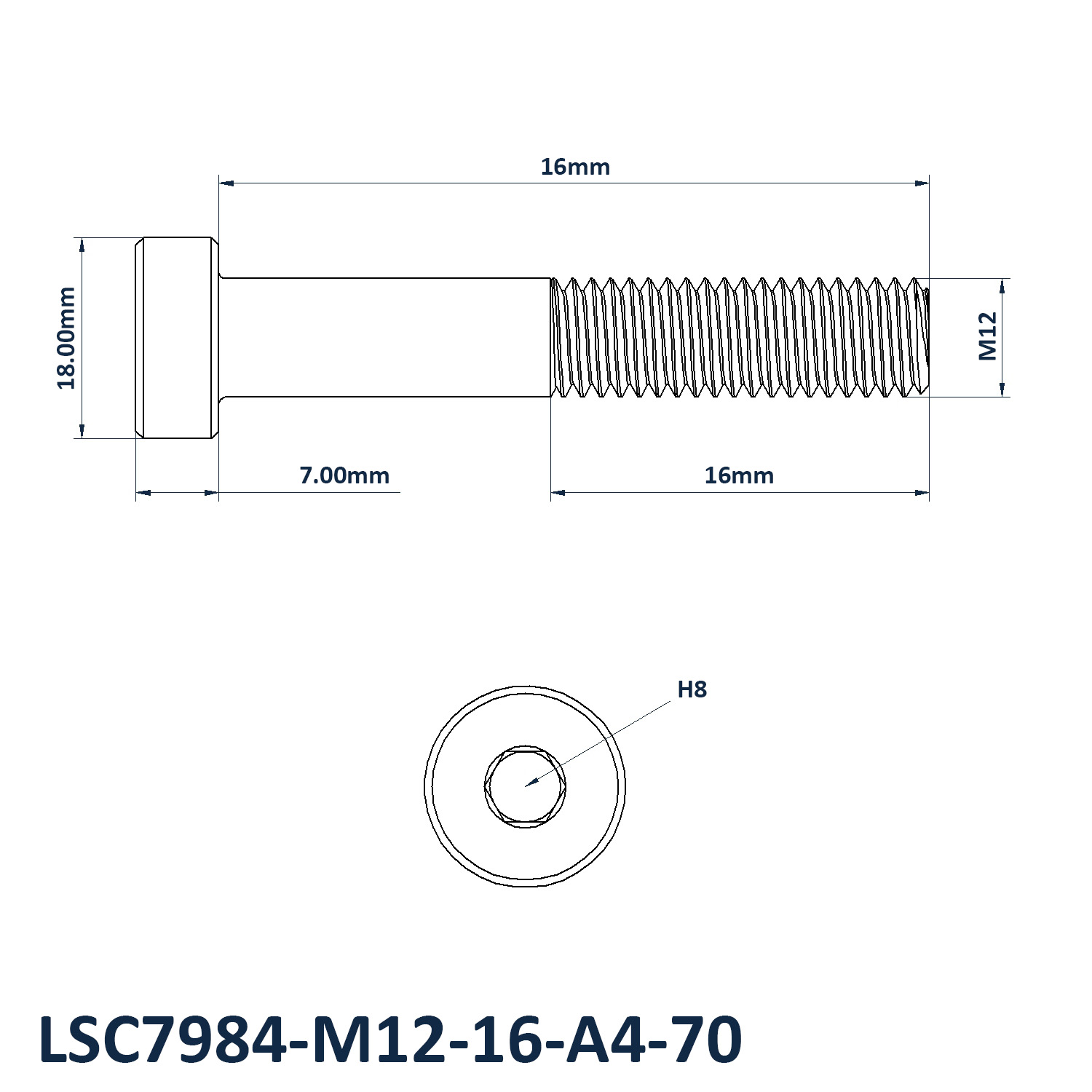

M12 x 16mm Low Head Socket Cap Screw Dimensions
- Thread Size: M12
- Length: 16mm
- Threaded Length: Fully Threaded
- Pitch: 1.75mm
- Head Diameter: 18.0mm
- Head Height: 7.0mm
- Drive: H8
- Material: A4-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
Need help or buying in bulk?
For help choosing DIN 7984 low head socket cap screws, bulk pricing or lead time checks, call 01233 713581.
