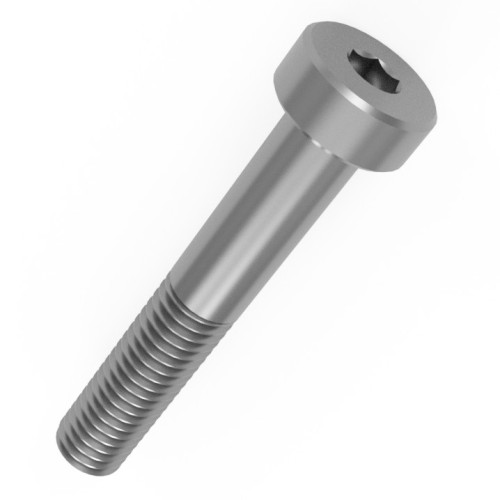

M12 x 20mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Product code:
LSC7984-M12-20-A4-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £3.13 | £3.76 |
| 10 - 24 | £2.09 | £2.51 |
| 25 - 49 | £1.57 | £1.88 |
| 50 - 99 | £1.47 | £1.76 |
| 100 + | £1.31 | £1.57 |
£3.76
/ each
Quantity:
Product Specification
| Thread Size | M12 |
| Length | 20mm |
| Threaded Length | Fully Threaded |
| Pitch | 1.75mm |
| Head Diameter | 18.0mm |
| Head Height | 7.0mm |
| Drive | H8 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A4-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M12 x 20mm Low Hex Socket Cap Screw (DIN 7984) | Marine Grade A4 Stainless Steel
Engineered for neat installation in space-limited applications, this M12 x 20mm cap head machine screw uses a low head form with a H8 socket drive.
With a 7mm head height and 18mm head diameter, the low head design reduces snag points while the H8 drive keeps installation controlled.
Common Applications
- HVAC applications for securing access panels with M12 thread
- Fixing vehicle panels using a 20mm low head stainless fixing
- Laboratory equipment assemblies where compact clamping is more important than a full height cap head
- Mounting electrical cabinet fittings where A4 stainless material is specified

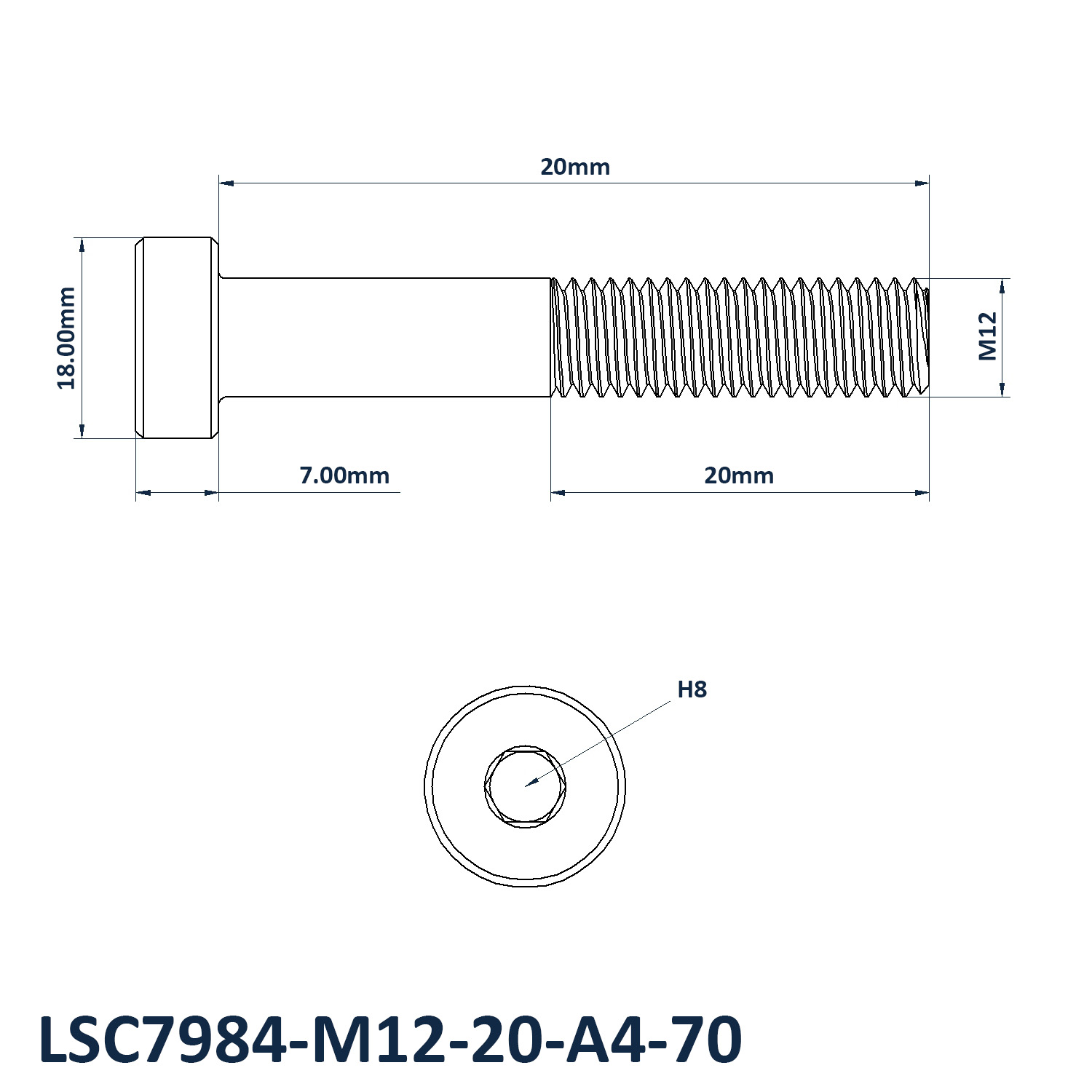

M12 x 20mm Low Head Socket Cap Screw Dimensions
- Thread Size: M12
- Length: 20mm
- Threaded Length: Fully Threaded
- Pitch: 1.75mm
- Head Diameter: 18.0mm
- Head Height: 7.0mm
- Drive: H8
- Material: A4-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
Need help or buying in bulk?
For help choosing DIN 7984 low head socket cap screws, bulk pricing or lead time checks, call 01233 713581.
