M5 x 22mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Product code:
LSC7984-M5-22-A2-70
View All Specifications
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £1.26 | £1.51 |
| 10 - 24 | £1.00 | £1.20 |
| 25 - 49 | £0.80 | £0.96 |
| 50 - 99 | £0.60 | £0.72 |
| 100 - 499 | £0.40 | £0.48 |
| 500 - 999 | £0.30 | £0.36 |
| 1000 + | £0.20 | £0.24 |
£1.51
/ each
Quantity:
Product Specification
| Thread Size | M5 |
| Length | 22mm |
| Threaded Length | 16mm |
| Pitch | 0.80mm |
| Head Diameter | 8.5mm |
| Head Height | 3.5mm |
| Drive | H3 |
| Standard | DIN 7984 |
| Head Style | Cap Head |
| Material | A2-70 Stainless Steel |
Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.
Frequently Bought Together
+
+
Total Price: £0.00
M5 x 22mm Low Hex Socket Cap Screw (DIN 7984) | A2 Stainless Steel
Offering a controlled low profile finish, this M5 x 22mm socket cap screw to DIN 7984 is suited to machinery and equipment with tight clearances.
The A2-70 stainless grade provides dependable corrosion resistance for general engineering, machinery and interior or sheltered external applications. Its DIN 7984 form is selected where a reduced head height is needed without changing to a countersunk fixing.
Common Applications
- Engineering applications for holding plastic housings with M5 thread
- Securing trailer body hardware using a 22mm low head stainless fixing
- Vehicle body building assemblies where quick top-side installation saves assembly time
- Servicing fabricated assemblies where A2 stainless material is specified

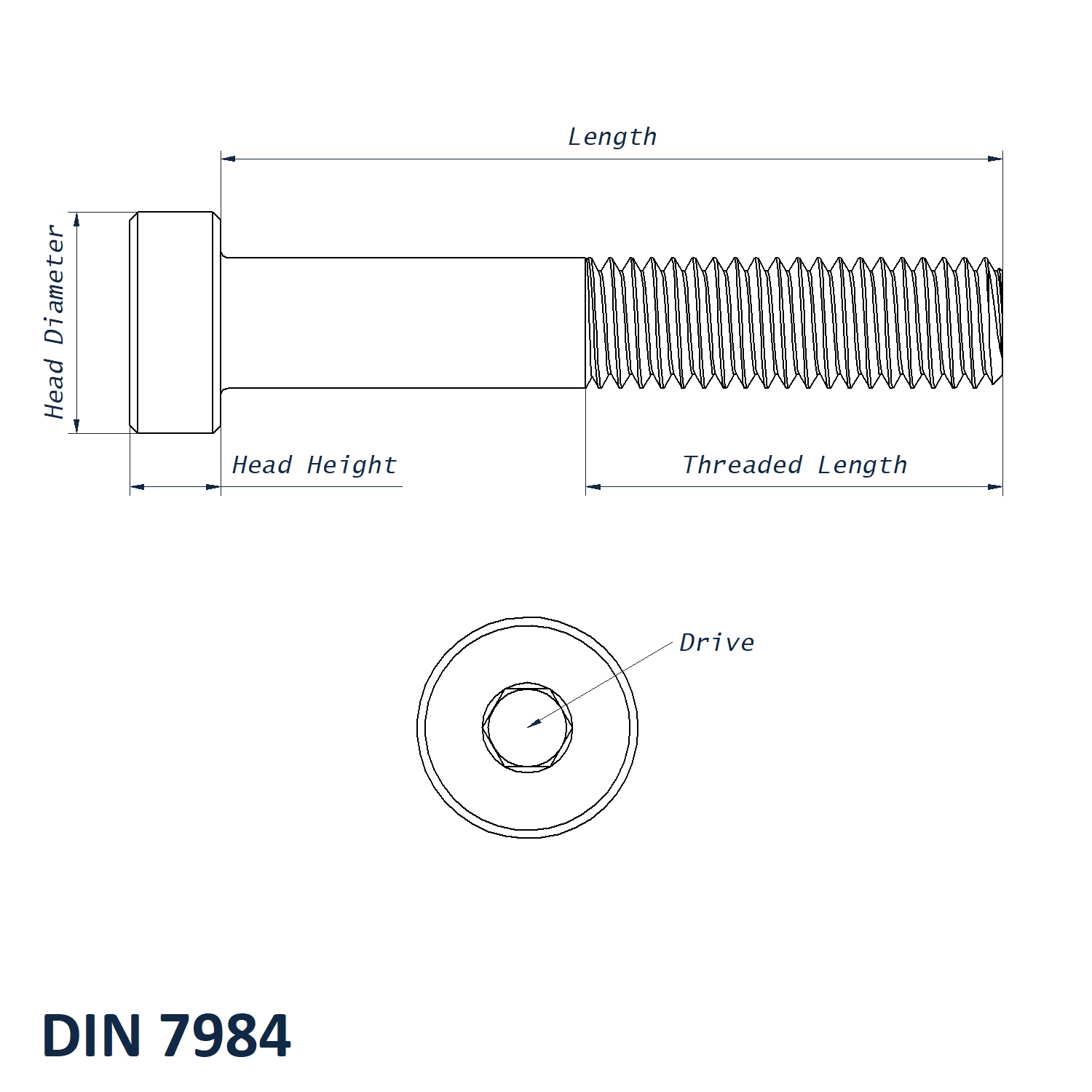

M5 x 22mm Low Head Socket Cap Screw Dimensions
- Thread Size: M5
- Length: 22mm
- Threaded Length: 16mm
- Pitch: 0.80mm
- Head Diameter: 8.5mm
- Head Height: 3.5mm
- Drive: H3
- Material: A2-70 Stainless Steel
- Standard: DIN 7984
- Head Style: Cap Head
View our full Low Head Socket Cap Screws DIN 7984 range.
Need help or buying in bulk?
For help choosing DIN 7984 low head socket cap screws, bulk pricing or lead time checks, call 01233 713581.
