M105 x 150.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £309.21 | £371.05 |
| 100 - 499 | £274.85 | £329.82 |
| 500 - 999 | £260.38 | £312.46 |
| 1000 - 4999 | £247.37 | £296.84 |
| 5000 + | £224.88 | £269.85 |
£371.05 / each
Product Specification

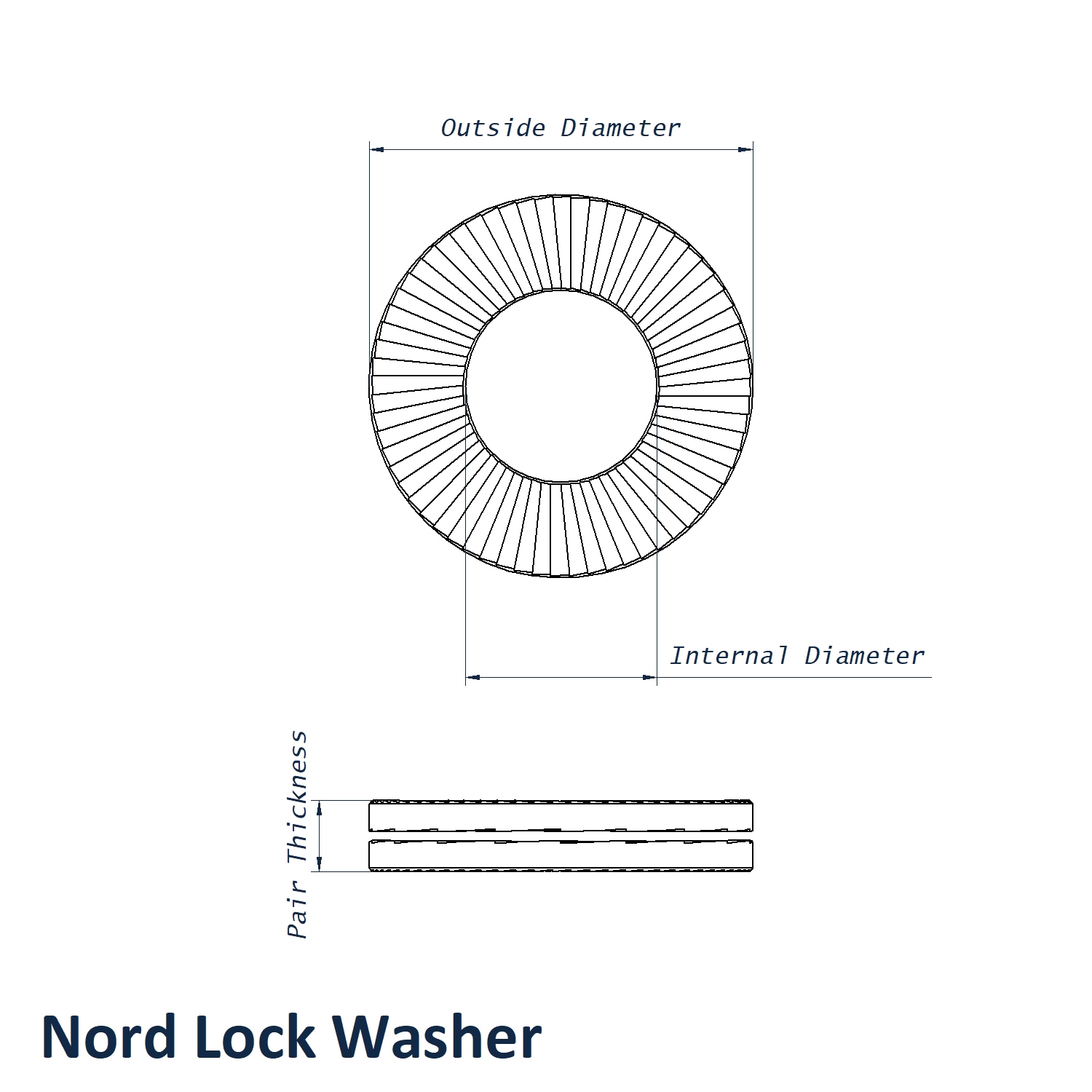

| Size | M105 |
| Internal Diameter | 108.4mm |
| Outside Diameter | 150.0mm |
| Thickness | 9.50mm |
| Material | Delta Protekt® Hardened Steel |
Frequently Bought Together
Total Price: £0.00
M105 x 150.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel | Vital Parts - NL-M105-150-DPT
For machinery and equipment subject to dynamic loading, this M105 x 150.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel offers a reliable vibration-resistant washer. Specified at 108.4mm inside diameter, 150.0mm outside diameter and 9.50mm thick, this size is intended for M105 bolted assemblies. A hardened steel core provides the required strength, while the Delta Protekt® coating helps protect the washer in exposed industrial conditions. The controlled locking action helps maintain clamping force in assemblies exposed to movement or impact.
What Are Nord-Lock® Washers?
The locking function is created by two complementary washer faces. Serrations embed against the bolt, nut and clamped component, while the internal cams form a wedge. Correct installation converts potential rotational movement into increased preload, helping the fastening remain secure.
Common Applications
- Large Drives: Useful on gearboxes, couplings and transmission equipment where clamp load must be maintained.
- Structural Machinery: Helps protect substantial steel assemblies and fabricated equipment from rotational loosening.
- Heavy Plant: Supports critical bolted joints on excavators, crushers and large production machinery.
- Mining Equipment: Helps secure high-load connections exposed to shock, vibration and abrasive operating conditions.
Technical Specifications:
- Size: M105
- Internal Diameter: 108.4mm
- Outside Diameter: 150.0mm
- Thickness: 9.50mm
- Material: Delta Protekt® Hardened Steel
Related Fastening Products
Explore our wider ranges of washers, bolts and screws and nuts for complete fastening assemblies.
For help confirming the correct Nord-Lock® washer size or discussing larger order quantities, contact our technical team on 01233 713581.
