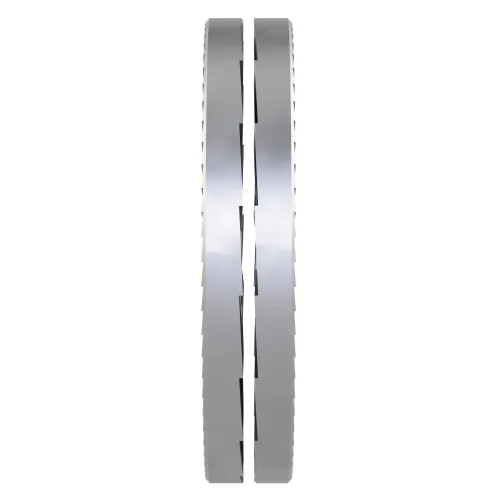

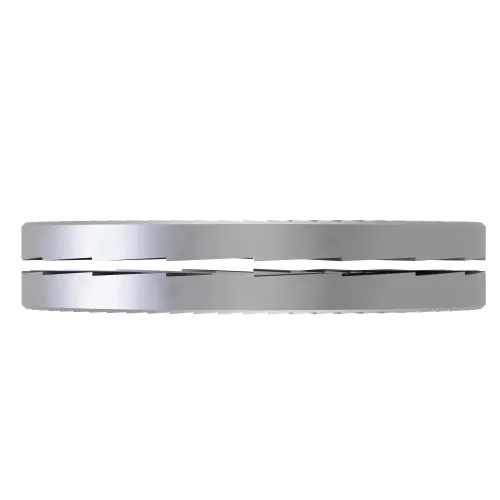

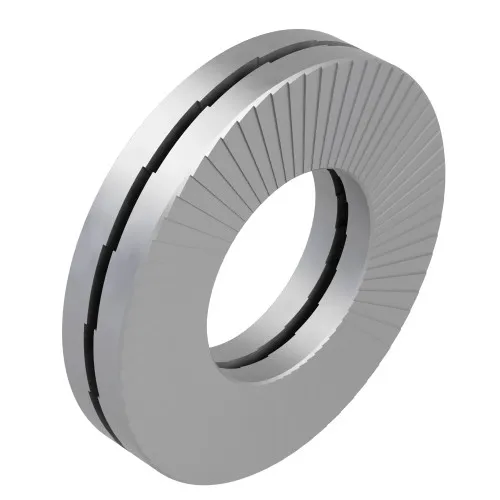

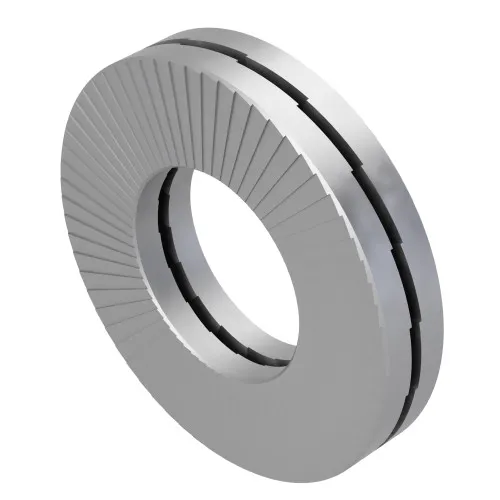

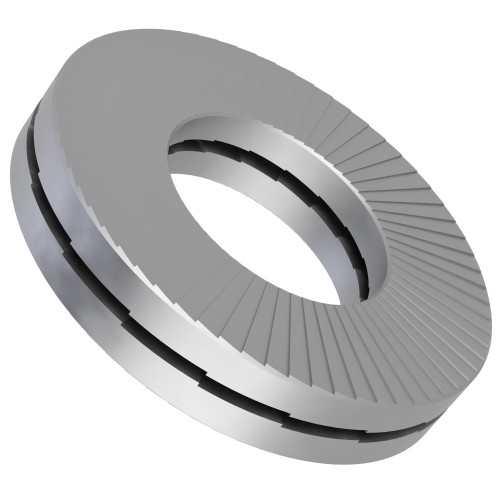

M110 x 155.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £316.57 | £379.88 |
| 100 - 499 | £281.40 | £337.68 |
| 500 - 999 | £266.58 | £319.90 |
| 1000 - 4999 | £253.26 | £303.91 |
| 5000 + | £230.23 | £276.28 |
£379.88 / each

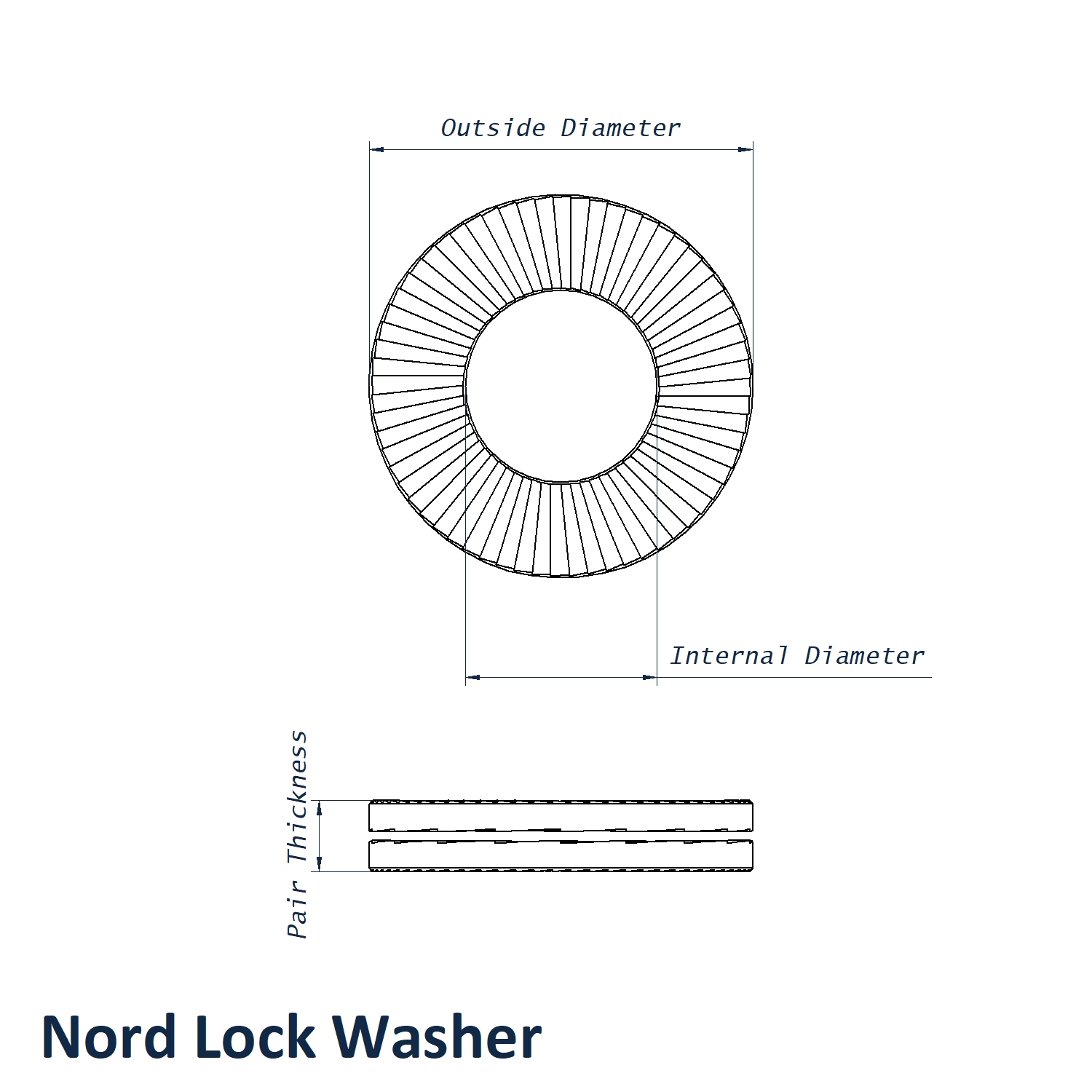

Product Specification
| Size | M110 |
| Internal Diameter | 113.4mm |
| Outside Diameter | 155.0mm |
| Thickness | 9.50mm |
| Material | Delta Protekt® Hardened Steel |
Frequently Bought Together
Total Price: £0.00
M110 x 155.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel | Vital Parts - NL-M110-155-DPT
This industrial M110 x 155.0mm Nord-Lock® Washer | Delta Protekt® Hardened Steel is suited to bolted connections that require a vibration-resistant safety washer for bolted joints. It is sized for M110 fasteners and has a 113.4mm internal diameter, 155.0mm outside diameter and 9.50mm overall thickness. Manufactured from hardened steel and protected by Delta Protekt®, this washer is intended for high-strength steel bolting applications. It provides a reusable mechanical locking method for many correctly specified bolted connections.
What Are Nord-Lock® Washers?
These anti-vibration washers work in pairs. The inward-facing cams create the locking mechanism and the outward-facing teeth hold against the surrounding surfaces. As the cam angle is greater than the thread pitch angle, the bolt would need to stretch before it could rotate loose, helping the assembly retain clamp force.
Common Applications
- Structural Machinery: Helps protect substantial steel assemblies and fabricated equipment from rotational loosening.
- Large Drives: Useful on gearboxes, couplings and transmission equipment where clamp load must be maintained.
- Rail and Transport: Provides dependable locking on heavy brackets, equipment mounts and serviceable vehicle systems.
- Energy Equipment: Suitable for turbine auxiliaries, generators and other mechanically loaded plant assemblies.
Technical Specifications:
- Size: M110
- Internal Diameter: 113.4mm
- Outside Diameter: 155.0mm
- Thickness: 9.50mm
- Material: Delta Protekt® Hardened Steel
Complete Your Assembly
Pair this product with suitable items from our bolts and screws, nuts and broader washer range.
Need guidance with washer selection or a bulk requirement? Our team can help you specify a suitable option for your application on 01233 713581.
