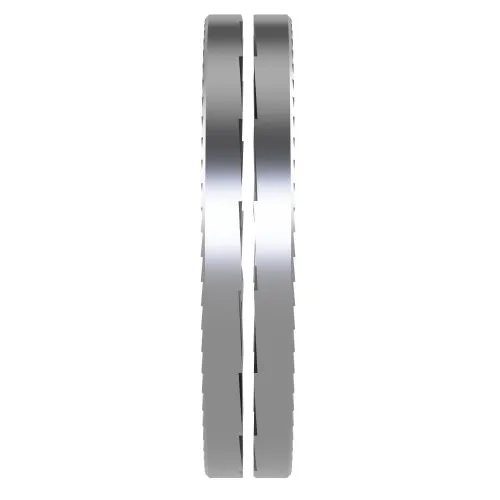

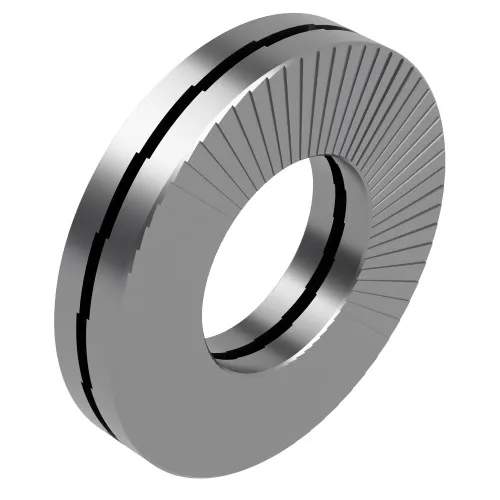

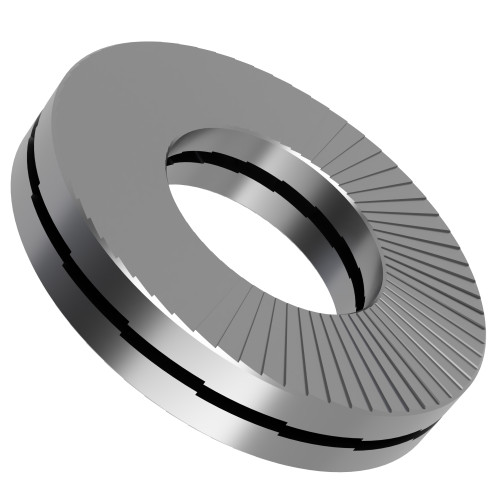

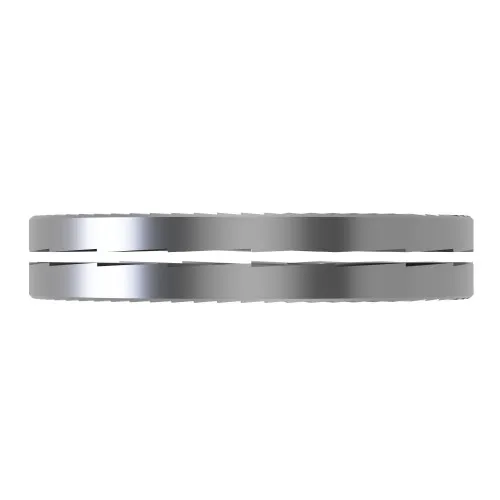

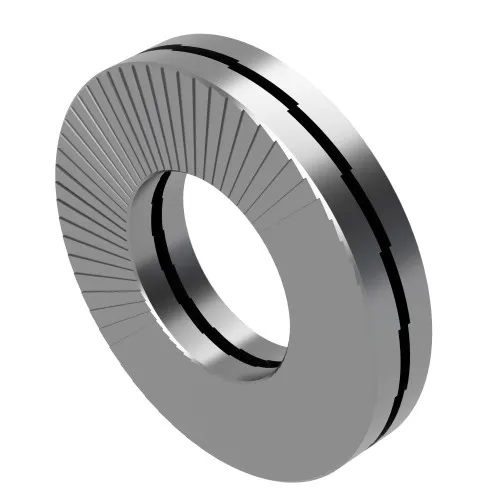

M24 x 48.5mm Nord-Lock® Washer | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £25.12 | £30.15 |
| 100 - 499 | £22.33 | £26.80 |
| 500 - 999 | £21.16 | £25.39 |
| 1000 - 4999 | £20.10 | £24.12 |
| 5000 + | £18.27 | £21.93 |
£30.15 / each
Product Specification

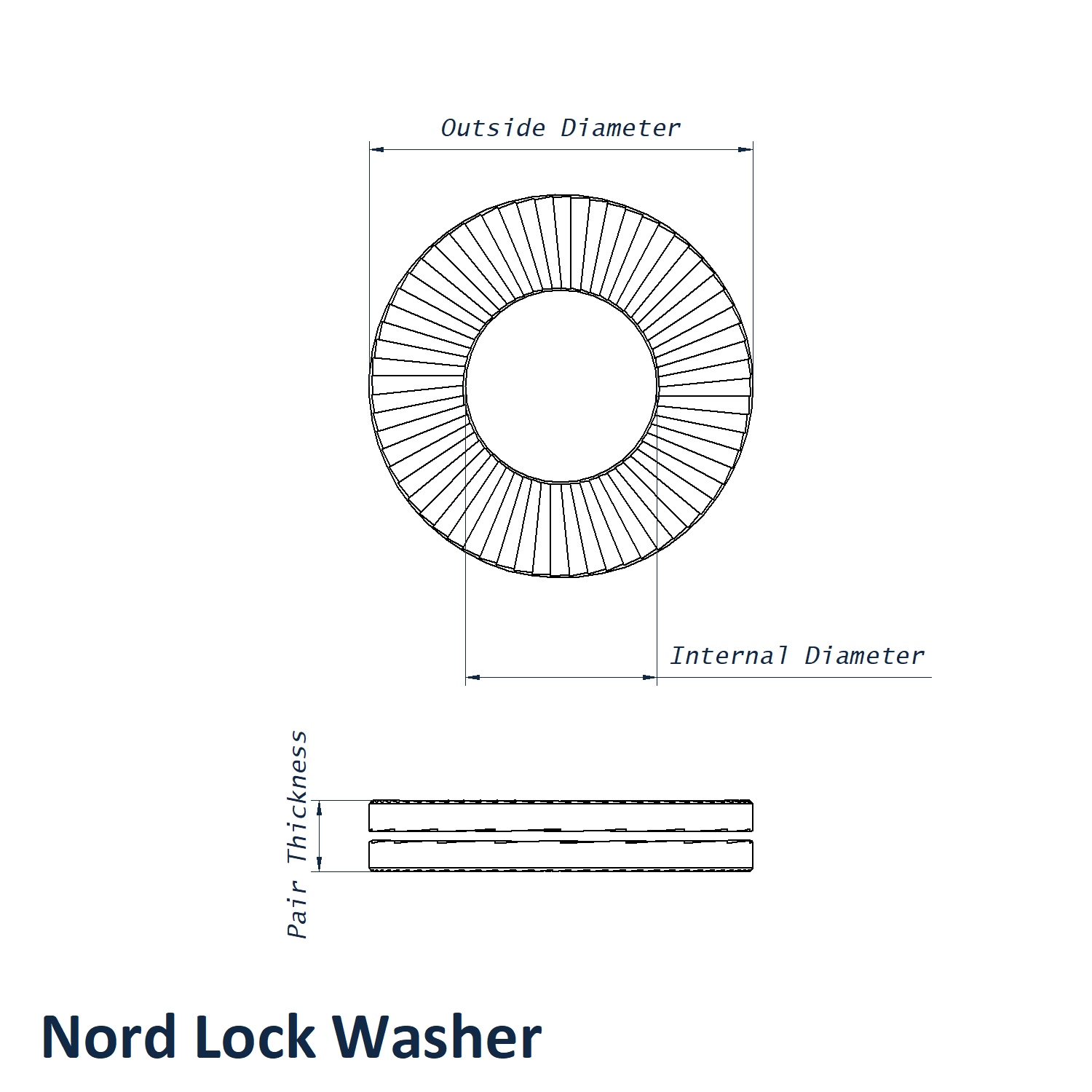

| Size | M24 |
| Internal Diameter | 25.3mm |
| Outside Diameter | 48.5mm |
| Thickness | 4.50mm |
| Material | A4 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M24 x 48.5mm Nord-Lock® Washer | A4 Stainless Steel | Vital Parts - NL-M24-48.5-A4
This M24 x 48.5mm Nord-Lock® Washer | A4 Stainless Steel provides a secure wedge-locking washer for assemblies where maintaining clamp load is essential. It is sized for M24 fasteners and has a 25.3mm internal diameter, 48.5mm outside diameter and 4.50mm overall thickness. Manufactured from A4 stainless steel, it is suited to applications where a durable, corrosion-resistant locking solution is required. It provides a reusable mechanical locking method for many correctly specified bolted connections.
What Are Nord-Lock® Washers?
These anti-vibration washers work in pairs. The inward-facing cams create the locking mechanism and the outward-facing teeth hold against the surrounding surfaces. As the cam angle is greater than the thread pitch angle, the bolt would need to stretch before it could rotate loose, helping the assembly retain clamp force.
Common Applications
- Outdoor Machinery: Provides corrosion-resistant joint security on heavy exposed equipment and fabricated assemblies.
- Stainless Process Plant: Helps secure substantial bolted connections on frames, vessels and support equipment.
- Industrial Infrastructure: Helps protect large corrosion-resistant bolted joints exposed to vibration and cyclic operation.
- Pumping Equipment: Useful for retaining clamp load on sizeable stainless pump, pipework and drive assemblies.
Technical Specifications:
- Size: M24
- Internal Diameter: 25.3mm
- Outside Diameter: 48.5mm
- Thickness: 4.50mm
- Material: A4 Stainless Steel
Complete Your Assembly
Pair this product with suitable items from our bolts and screws, nuts and broader washer range.
Need guidance with washer selection or a bulk requirement? Our team can help you specify a suitable option for your application on 01233 713581.
