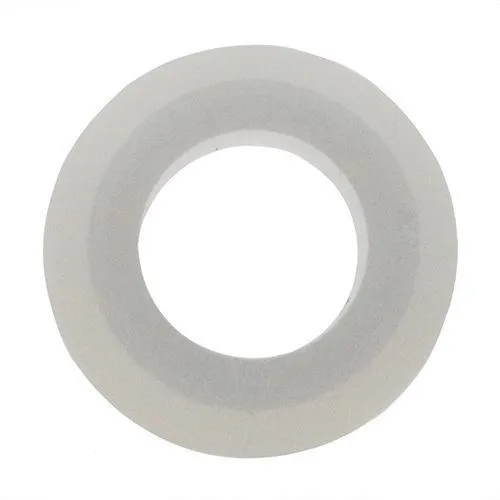

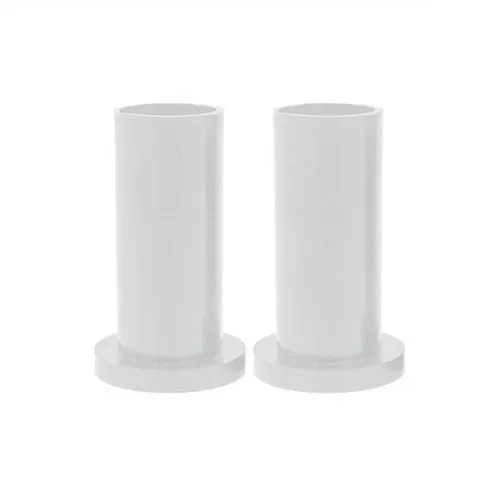

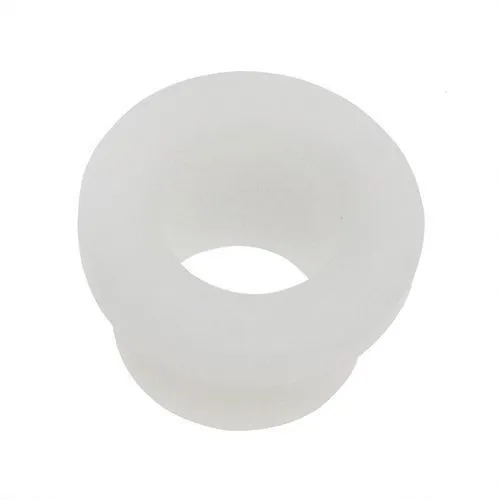

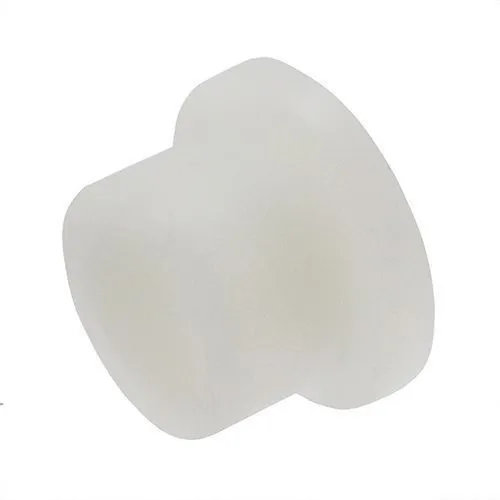

Flanged Nylon Bushes - NYB078
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.20 | £0.24 |
| 2 - 999 | £0.20 | £0.24 |
| 1000 - 4999 | £0.19 | £0.23 |
| 5000 + | £0.19 | £0.23 |
Product Specification
| Internal Diameter | 6.6mm |
| Outside Diameter | 7.9mm |
| Flange Diameter | 13.0mm |
| Shaft Length | 9.5mm |
| Colour | Natural |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
6.6mm ID x 7.9mm OD x 9.5mm Shaft Length x 13.0mm Flange Flanged Nylon Bush | Natural Nylon
Designed for accurate spacing through metal panels and fabricated brackets, this 6.6mm ID sleeve bushing has a 6.6mm internal diameter, 7.9mm outside diameter, 9.5mm shaft length and 13.0mm flange diameter. The natural finish and polyamide nylon body make it suitable for electrical enclosure work where a neat, non-metallic spacing component is required.
The top-hat flange helps spread contact around the hole edge, while the sleeve section provides separation through the bore. The design also makes it relevant for sleeve bushings, especially where the installer wants fast fitting and a consistent shoulder.
What Are Flanged Nylon Bushes?
Flanged nylon bushes are top-hat shaped plastic components used to line a hole, space components apart or insulate a fixing from the surrounding material. In this size, the 6.6mm internal diameter supports the pass-through or fixing, while the 13.0mm flange helps cover the surrounding face of the hole.
Common Applications
- Electrical enclosure screw isolation
- Control panel cable or wire pass-throughs
- Sheet metal bracket spacing
- OEM equipment panel assemblies
6.6mm ID x 7.9mm OD x 9.5mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 6.6mm
- Outside Diameter: 7.9mm
- Flange Diameter: 13.0mm
- Shaft Length: 9.5mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
Use the full range page to compare internal diameter, outside diameter, flange diameter and shaft length before selecting a bush for your panel or fixing assembly. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
For help checking nylon bush sizing, flange clearance or bulk requirements, speak with the Vital Parts team on 01233 713581. We can help with product guidance, samples where available and support for repeat trade orders.
