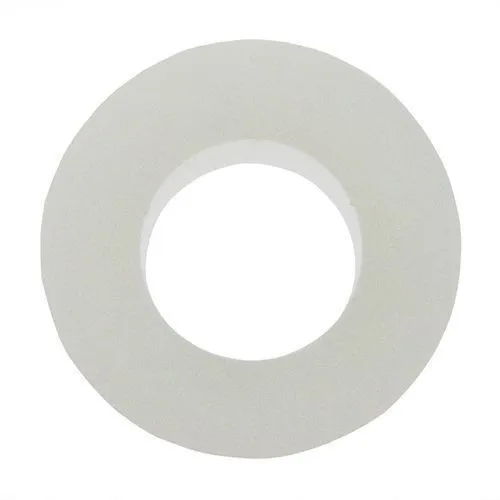

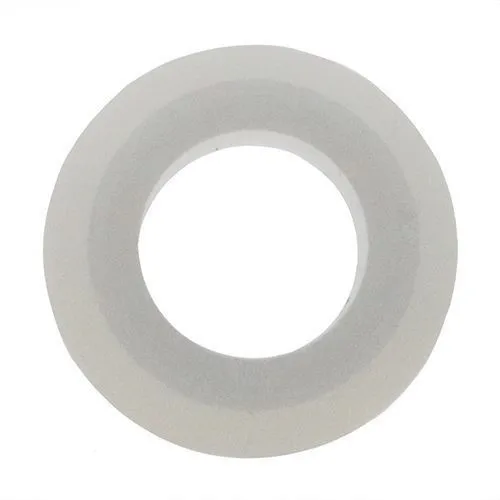

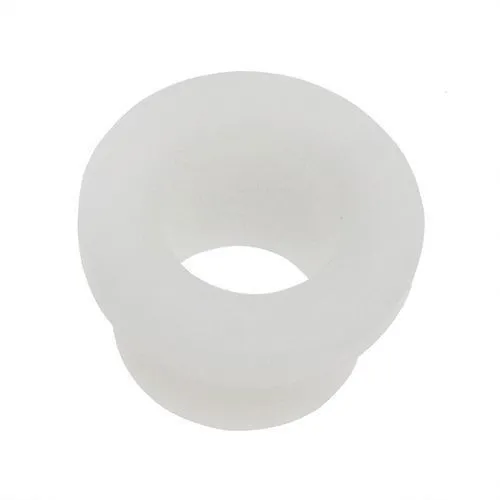

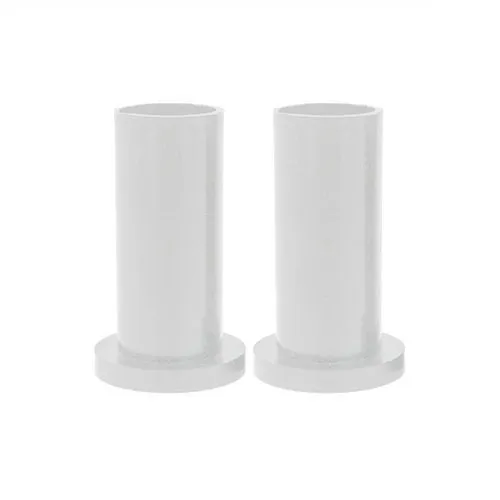

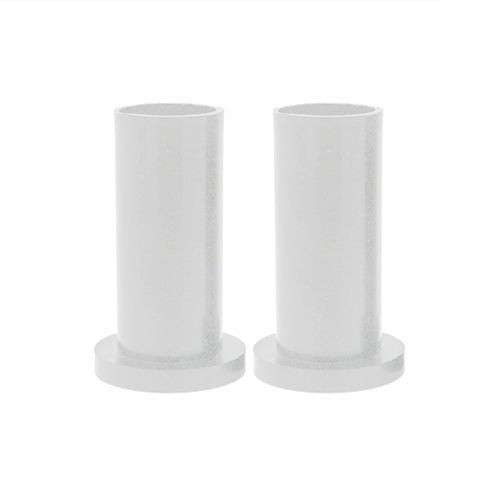

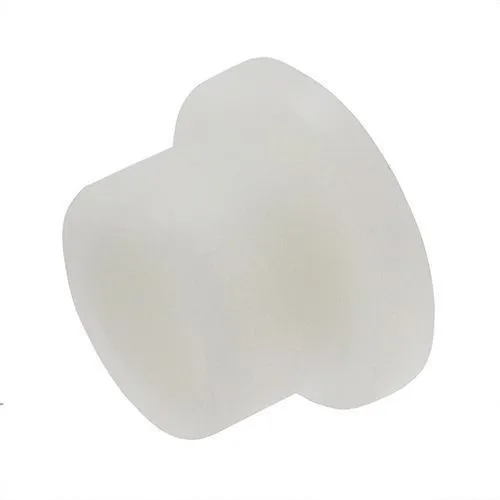

Flanged Nylon Bushes - NYB083
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.24 | £0.29 |
| 2 - 999 | £0.24 | £0.29 |
| 1000 - 4999 | £0.21 | £0.25 |
| 5000 + | £0.17 | £0.21 |
Product Specification
| Internal Diameter | 8.1mm |
| Outside Diameter | 9.1mm |
| Flange Diameter | 15.7mm |
| Shaft Length | 6.4mm |
| Colour | Natural |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
8.1mm ID x 9.1mm OD x 6.4mm Shaft Length x 15.7mm Flange Flanged Nylon Bush | Natural Nylon
This 8.1mm ID electrical insulation bush is sized with a 8.1mm internal bore, 9.1mm outside diameter, 6.4mm shaft length and 15.7mm flange diameter for use around larger fasteners, sleeves, shafts and equipment mounting points. It gives UK engineers a simple flanged insert for providing a lightweight plastic interface between two joined components.
For OEM assembly teams, the consistent flange and shank dimensions help simplify repeat fitting across matched panel holes. The design also makes it relevant for insulation sleeves, especially where the installer wants fast fitting and a consistent shoulder.
What Are Flanged Nylon Bushes?
A shoulder washer bush works by placing a flanged nylon sleeve between the fixing and the panel, helping reduce direct contact and surface wear. In this size, the 8.1mm internal diameter supports the pass-through or fixing, while the 15.7mm flange helps cover the surrounding face of the hole.
Common Applications
- Laboratory equipment housings
- Production line sensor brackets
- Packaging machine guard panels
- Electrical backplate spacing
8.1mm ID x 9.1mm OD x 6.4mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 8.1mm
- Outside Diameter: 9.1mm
- Flange Diameter: 15.7mm
- Shaft Length: 6.4mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
The full range contains multiple bore and flange sizes, helping buyers match the nylon bush to the screw, shaft, cable or panel hole being protected. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
If you are matching a flanged bush to a panel hole, fastener or shaft, contact Vital Parts on 01233 713581 for sizing support, sample availability and trade quantity advice.
