Flanged Nylon Bushes - NYB085
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.92 | £1.10 |
| 2 - 999 | £0.84 | £1.01 |
| 1000 - 4999 | £0.78 | £0.93 |
| 5000 + | £0.71 | £0.85 |
£1.10 / each
.png)
Product Specification
| Internal Diameter | 8.2mm |
| Outside Diameter | 9.9mm |
| Flange Diameter | 14.0mm |
| Shaft Length | 16.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

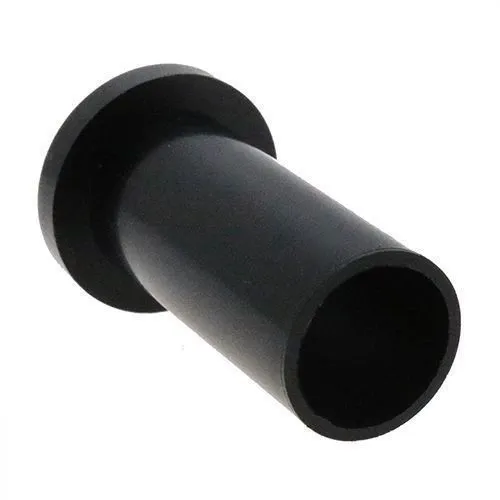

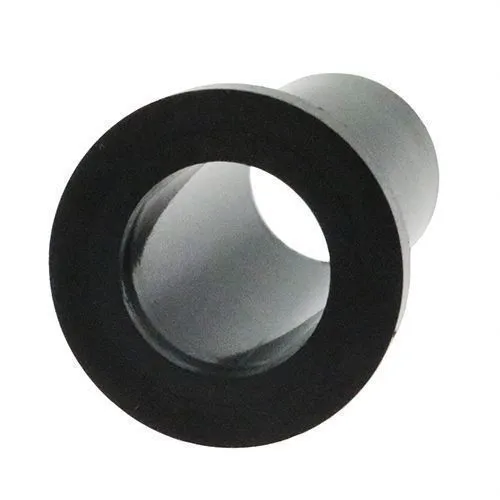

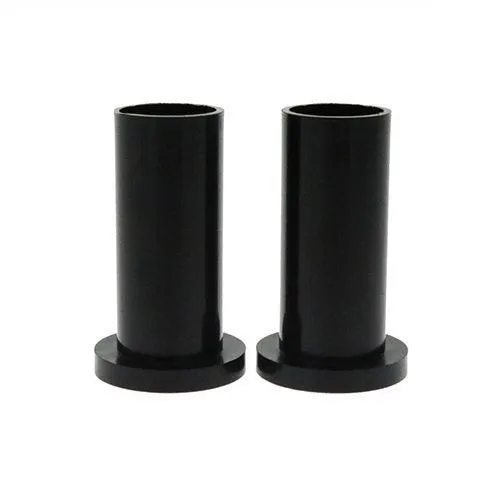

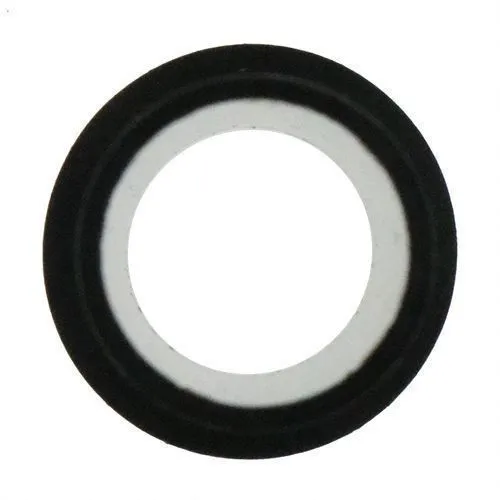

8.2mm ID x 9.9mm OD Nylon Flanged Bushing | 16mm Shaft | Black
Designed to separate and protect components in visible fastener insulation on dark assemblies, this Nylon Flanged Bushing uses a 8.2mm bore with a 9.9mm outside diameter. The sleeve helps isolate the passing component while the flange creates a wider contact face at the panel or mounting surface.
What Are Nylon Flanged Bushes?
A Nylon Shoulder Bushing uses a cylindrical sleeve to pass through a hole with a flange that remains on the surface. This geometry allows the bush to insulate a compatible fastener, provide a controlled spacing point and help absorb light vibration or movement within the assembly.
Common Applications
- Control Panels: Insulates compatible fasteners and mounting points in electrical control equipment and enclosure assemblies.
- Panel Protection: Provides a sleeve around a mounting hole which can help protect the hole edge from the passing screw or shaft.
- Fastener Isolation: Separates metal screws or pins from the surrounding panel material to reduce direct conductive contact.
- Electrical Screw Insulation: Creates a non-conductive sleeve around compatible screws and fasteners passing through panels or equipment housings.
8.2mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 8.2mm
- Outside Diameter: 9.9mm
- Flange Diameter: 14.0mm
- Shaft Length: 16.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- Black finish provides a discreet appearance for darker housings, panels and equipment assemblies.
- 8.2mm internal diameter provides the bore size for the compatible screw, pin or passing component.
- 16.0mm shaft length defines the depth of the insulating sleeve through the assembly.
- Flanged shoulder design supports both insulation and component spacing within one moulded part.
See alternative flanged bush sizes in the Nylon Bushes category. If you need help selecting an insulating bush for a screw, panel or PCB assembly, call Vital Parts on 01233 713581.
