Flanged Nylon Bushes - NYB092
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £1.17 | £1.40 |
| 2 - 999 | £1.17 | £1.40 |
| 1000 - 4999 | £1.00 | £1.20 |
| 5000 + | £0.83 | £1.00 |
Product Specification
| Internal Diameter | 10.0mm |
| Outside Diameter | 16.0mm |
| Flange Diameter | 21.0mm |
| Shaft Length | 8.0mm |
| Colour | Natural |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

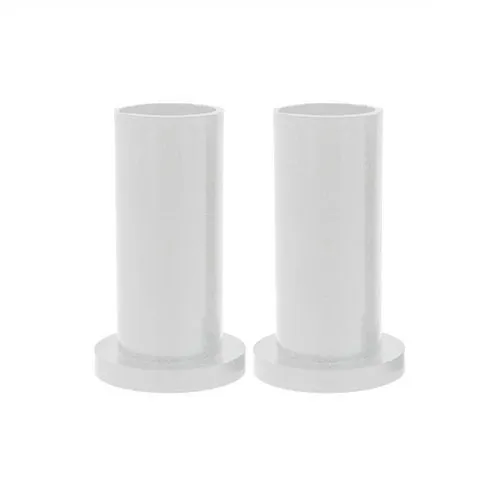

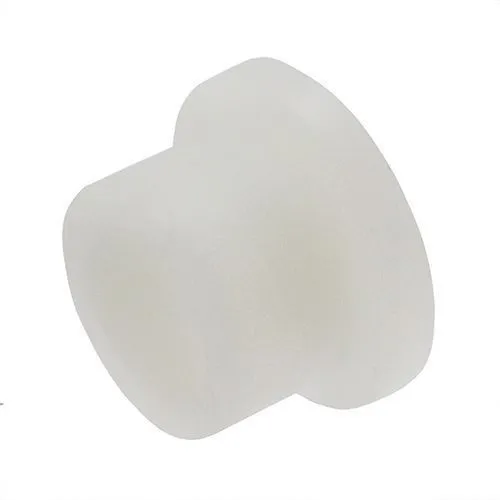

10.0mm ID x 16.0mm OD x 8.0mm Shaft Length x 21.0mm Flange Flanged Nylon Bush | Natural Nylon
This 10.0mm ID nylon bush is sized with a 10.0mm internal bore, 16.0mm outside diameter, 8.0mm shaft length and 21.0mm flange diameter for use around larger fasteners, sleeves, shafts and equipment mounting points. It gives UK engineers a simple flanged insert for reducing wear around screws, pins and small shafts in repeated-use assemblies.
Using a plastic bush between mating parts can help reduce surface marking and limit direct contact between metal components. In use, it works well as a plastic bushings where the flange needs to provide a defined stop and a cleaner external face.
What Are Flanged Nylon Bushes?
Flanged nylon bushes are top-hat shaped plastic components used to line a hole, space components apart or insulate a fixing from the surrounding material. In this size, the 10.0mm internal diameter supports the pass-through or fixing, while the 21.0mm flange helps cover the surrounding face of the hole.
Common Applications
- Component alignment during assembly
- Vibration reduction between plates
- Insulated screw clearance
- Cable loom support points
10.0mm ID x 16.0mm OD x 8.0mm Shaft Length Natural Nylon Bush Dimensions
- Internal Diameter: 10.0mm
- Outside Diameter: 16.0mm
- Flange Diameter: 21.0mm
- Shaft Length: 8.0mm
- Colour: Natural
- Material: Polyamide
Nylon Bush Size Selection
The full range contains multiple bore and flange sizes, helping buyers match the nylon bush to the screw, shaft, cable or panel hole being protected. View our full Nylon Bushes - Natural range.
Product Support and Trade Orders
If you are matching a flanged bush to a panel hole, fastener or shaft, contact Vital Parts on 01233 713581 for sizing support, sample availability and trade quantity advice.
