Flanged Nylon Bushes - NYB063
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.45 | £0.54 |
| 2 - 999 | £0.41 | £0.49 |
| 1000 - 4999 | £0.38 | £0.45 |
| 5000 + | £0.35 | £0.42 |
£0.54 / each
.png)
Product Specification
| Internal Diameter | 6.1mm |
| Outside Diameter | 7.8mm |
| Flange Diameter | 12.0mm |
| Shaft Length | 15.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

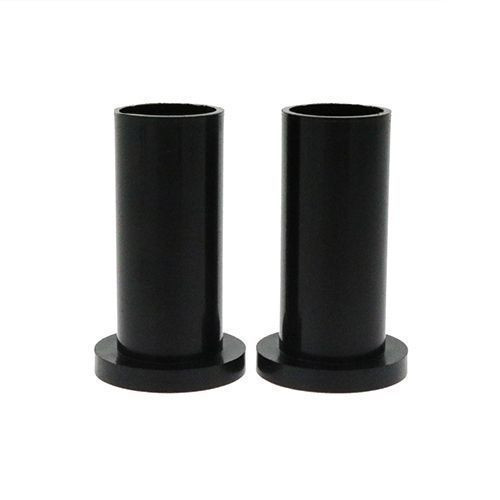

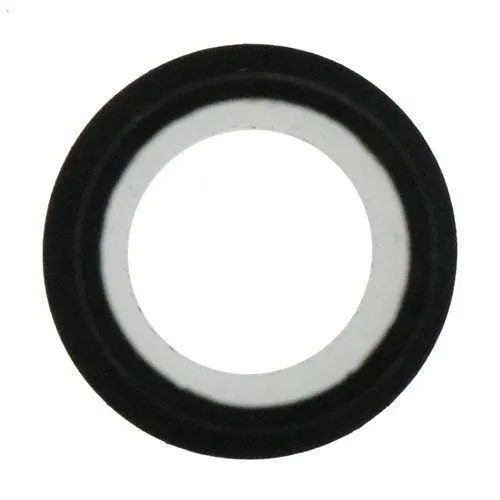

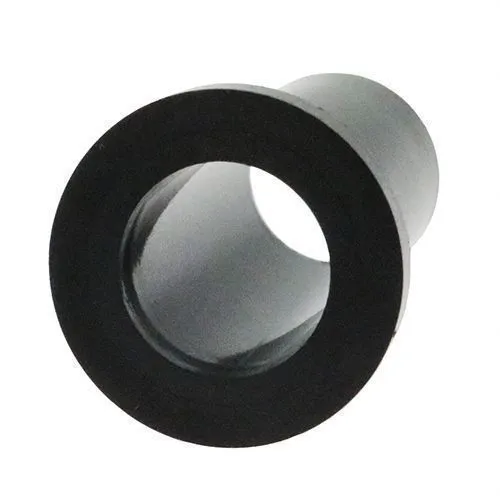

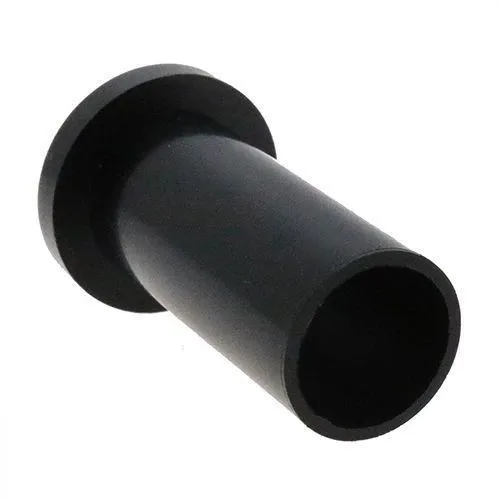

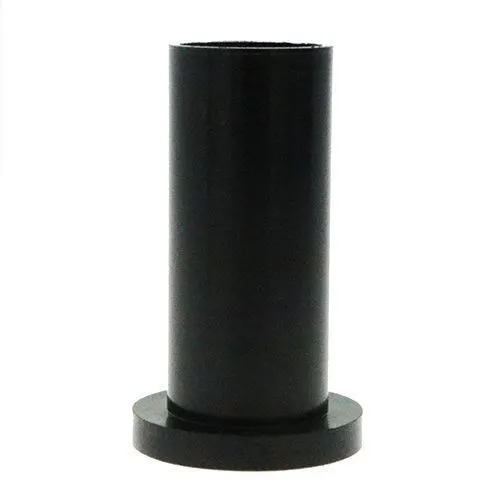

6.1mm ID x 7.8mm OD Nylon Flanged Bushing | 15mm Shaft | Black
Designed to separate and protect components in industrial electrical equipment, this Nylon Flanged Bushing uses a 6.1mm bore with a 7.8mm outside diameter. The sleeve helps isolate the passing component while the flange creates a wider contact face at the panel or mounting surface.
What Are Nylon Flanged Bushes?
A Nylon Shoulder Bushing uses a cylindrical sleeve to pass through a hole with a flange that remains on the surface. This geometry allows the bush to insulate a compatible fastener, provide a controlled spacing point and help absorb light vibration or movement within the assembly.
Common Applications
- Electronic Equipment: Provides lightweight separation around screws, pins and mounting points within electronic housings.
- Instrument Assemblies: Supports insulated mounting and component spacing in measuring, control and instrumentation equipment.
- Equipment Housings: Provides an insulating bush through suitable holes in machinery covers, enclosures and equipment panels.
- PCB Spacing: Helps maintain separation between circuit boards, panels and supporting components where a flanged spacer is suitable.
6.1mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 6.1mm
- Outside Diameter: 7.8mm
- Flange Diameter: 12.0mm
- Shaft Length: 15.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- Flanged profile provides a defined bearing face while the sleeve passes through the mounting hole.
- Flanged shoulder design supports both insulation and component spacing within one moulded part.
- Suitable as a screw insulator, shoulder washer or flanged spacer in correctly sized assemblies.
- 12.0mm flange diameter creates a wider bearing surface against the panel or component.
Explore the wider Nylon Flanged Bushes range for different bore sizes, body diameters and shaft lengths. For product selection assistance, contact our technical sales team on 01233 713581.
