Flanged Nylon Bushes - NYB061
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.15 | £0.18 |
| 2 - 999 | £0.15 | £0.18 |
| 1000 - 4999 | £0.14 | £0.17 |
| 5000 + | £0.14 | £0.17 |
£0.18 / each
.png)
Product Specification
| Internal Diameter | 5.2mm |
| Outside Diameter | 6.2mm |
| Flange Diameter | 12.0mm |
| Shaft Length | 10.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

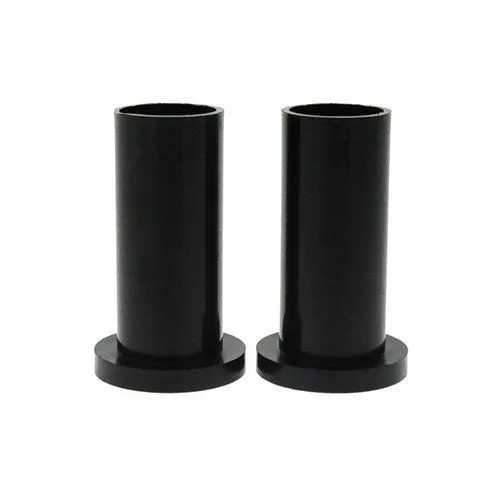

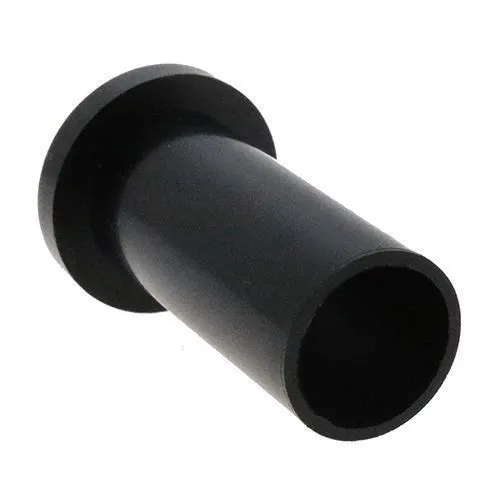

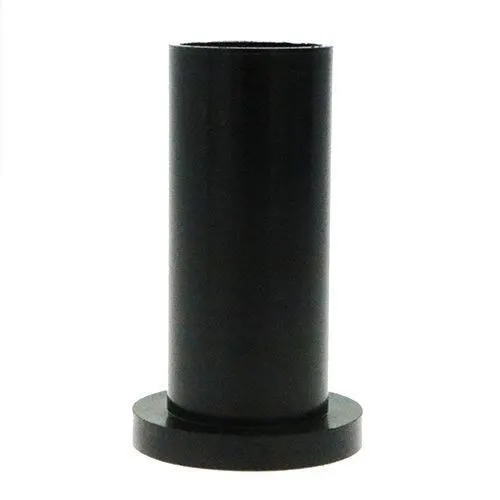

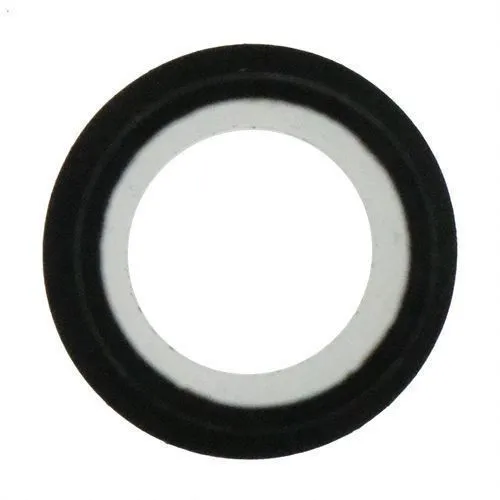

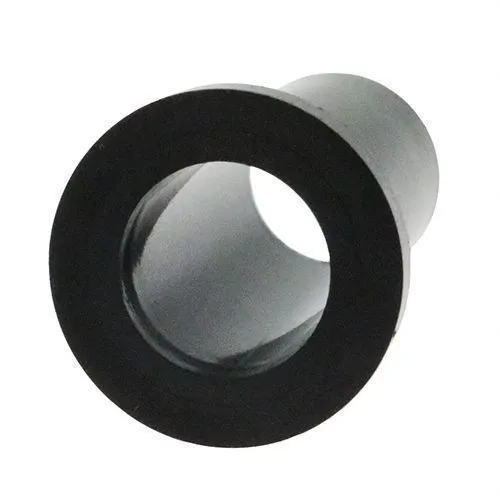

5.2mm ID x 6.2mm OD Nylon Flanged Bushing | 10mm Shaft | Black
Offering a simple insulating solution for visible fastener insulation on dark assemblies, this Nylon Flanged Bushing features a 5.2mm bore and 6.2mm outside diameter. The flange provides a seating surface while the sleeve surrounds the compatible screw, pin or cable path to reduce direct contact with the host component.
What Are Nylon Flanged Bushes?
Nylon Flanged Bushings provide a lightweight alternative to metal bushes where electrical isolation and low-friction separation are important. They are commonly used around screws and fasteners, through panels and within PCB or electronic assemblies where the sleeve and flange help locate and insulate the connection.
Common Applications
- Component Spacing: Maintains a defined gap between compatible parts where the flanged shoulder provides a controlled bearing surface.
- Light Mechanical Assemblies: Acts as a low-mass sleeve or shoulder spacer around compatible shafts, pins and fasteners.
- Electronic Equipment: Provides lightweight separation around screws, pins and mounting points within electronic housings.
- Instrument Assemblies: Supports insulated mounting and component spacing in measuring, control and instrumentation equipment.
5.2mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 5.2mm
- Outside Diameter: 6.2mm
- Flange Diameter: 12.0mm
- Shaft Length: 10.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- 12.0mm flange diameter creates a wider bearing surface against the panel or component.
- Flanged profile provides a defined bearing face while the sleeve passes through the mounting hole.
- Nylon construction can help damp light vibration, movement and shock between assembled components.
- 5.2mm internal diameter provides the bore size for the compatible screw, pin or passing component.
Browse the full Nylon Bushes, Screw Insulators and Shoulder Washers range for additional sizes in Black and Natural finishes. Technical sizing support is available on 01233 713581.
