Flanged Nylon Bushes - NYB060
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 999 | £0.35 | £0.42 |
| 1000 - 4999 | £0.32 | £0.38 |
| 5000 + | £0.27 | £0.32 |
£0.42 / each
.png)
Product Specification
| Internal Diameter | 5.2mm |
| Outside Diameter | 6.9mm |
| Flange Diameter | 12.0mm |
| Shaft Length | 8.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

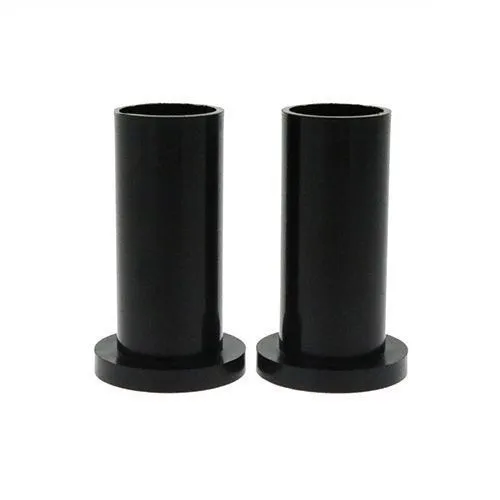

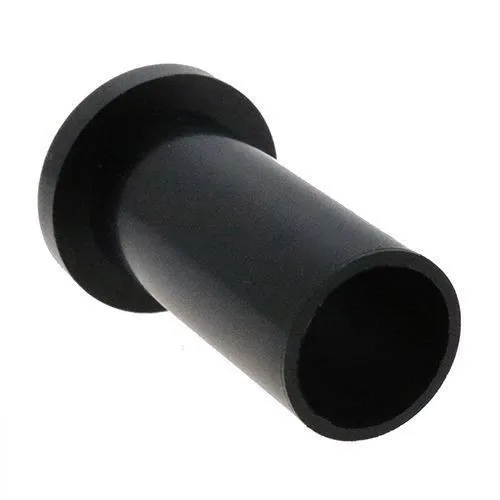

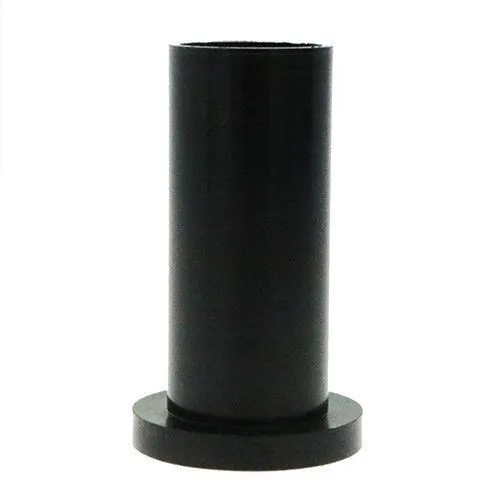

5.2mm ID x 6.9mm OD Nylon Flanged Bushing | 8mm Shaft | Black
Used within industrial electrical equipment, this Black Nylon Bush provides a flanged insulating sleeve with a 8.0mm shaft length and 12.0mm flange diameter. The heat-stabilised Nylon 6/6 material is suited to electrical and mechanical assemblies where lightweight isolation and positioning are important.
What Are Nylon Flanged Bushes?
Also known as screw insulators or shoulder washers, Nylon Flanged Bushes combine a sleeve with an integral flange. The non-conductive Nylon 6/6 material helps prevent direct electrical contact while the flange can maintain spacing between components and protect the edge of the mounting hole.
Common Applications
- Electronic Equipment: Provides lightweight separation around screws, pins and mounting points within electronic housings.
- Instrument Assemblies: Supports insulated mounting and component spacing in measuring, control and instrumentation equipment.
- Equipment Housings: Provides an insulating bush through suitable holes in machinery covers, enclosures and equipment panels.
- PCB Spacing: Helps maintain separation between circuit boards, panels and supporting components where a flanged spacer is suitable.
5.2mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 5.2mm
- Outside Diameter: 6.9mm
- Flange Diameter: 12.0mm
- Shaft Length: 8.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- 6.9mm outside diameter provides the main sleeve diameter for the mounting hole.
- 8.0mm shaft length defines the depth of the insulating sleeve through the assembly.
- Flanged shoulder design supports both insulation and component spacing within one moulded part.
- Suitable as a screw insulator, shoulder washer or flanged spacer in correctly sized assemblies.
Compare other dimensions and colours in the Vital Parts Nylon Bushes range. For support matching the internal diameter, outside diameter or shaft length to your application, speak with our team on 01233 713581.
