Flanged Nylon Bushes - NYB088
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 248 | £0.86 | £1.03 |
| 249 - 498 | £0.84 | £1.01 |
| 499 - 998 | £0.82 | £0.99 |
| 999 - 4998 | £0.81 | £0.97 |
| 4999 - 4999 | £0.79 | £0.95 |
| 5000 + | £0.78 | £0.93 |
£1.03 / each
.png)
Product Specification
| Internal Diameter | 8.5mm |
| Outside Diameter | 12.8mm |
| Flange Diameter | 25.0mm |
| Shaft Length | 9.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

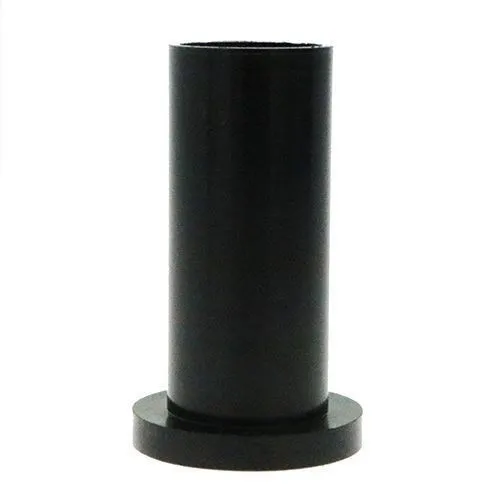

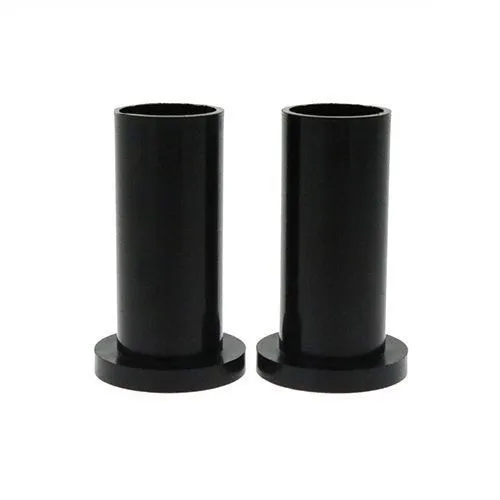

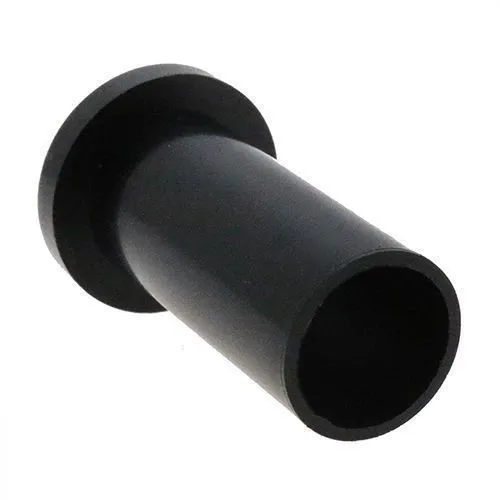

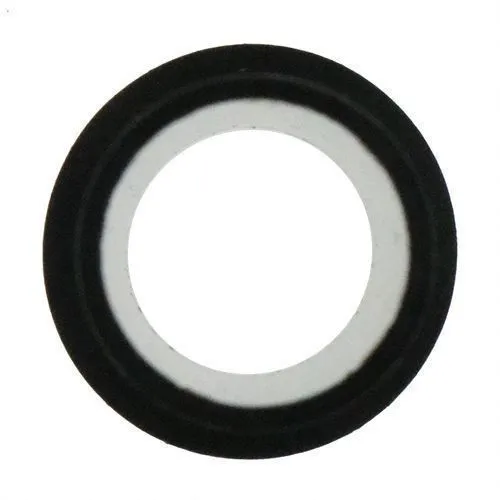

8.5mm ID x 12.8mm OD Nylon Flanged Bushing | 9mm Shaft | Black
Suitable for black instrument panels and control equipment, this Black Nylon Bush combines a 8.5mm bore with a 12.8mm outside diameter and 25.0mm flange diameter. Its flanged sleeve format can isolate screws or shafts from surrounding material while helping damp vibration, movement and light mechanical shock.
What Are Nylon Flanged Bushes?
Nylon Bushes are flanged insulating sleeves used to separate screws, shafts or other passing components from the surrounding material. The shoulder-style flange provides a bearing face while the cylindrical sleeve fits into the mounting hole which makes the component useful for electrical insulation, spacing and vibration damping.
Common Applications
- Automotive Electrical Systems: Provides non-conductive separation around suitable fasteners used in vehicle electrical and electronic assemblies.
- Equipment Housings: Provides an insulating bush through suitable holes in machinery covers, enclosures and equipment panels.
- Control Panels: Insulates compatible fasteners and mounting points in electrical control equipment and enclosure assemblies.
- Panel Protection: Provides a sleeve around a mounting hole which can help protect the hole edge from the passing screw or shaft.
8.5mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 8.5mm
- Outside Diameter: 12.8mm
- Flange Diameter: 25.0mm
- Shaft Length: 9.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- 12.8mm outside diameter provides the main sleeve diameter for the mounting hole.
- 9.0mm shaft length defines the depth of the insulating sleeve through the assembly.
- Flanged shoulder design supports both insulation and component spacing within one moulded part.
- Suitable as a screw insulator, shoulder washer or flanged spacer in correctly sized assemblies.
Compare other dimensions and colours in the Vital Parts Nylon Bushes range. For support matching the internal diameter, outside diameter or shaft length to your application, speak with our team on 01233 713581.
