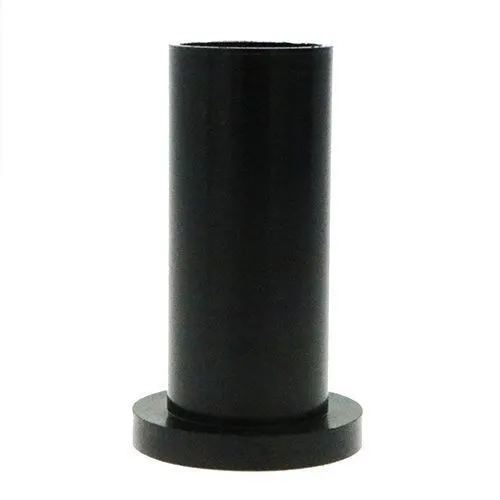

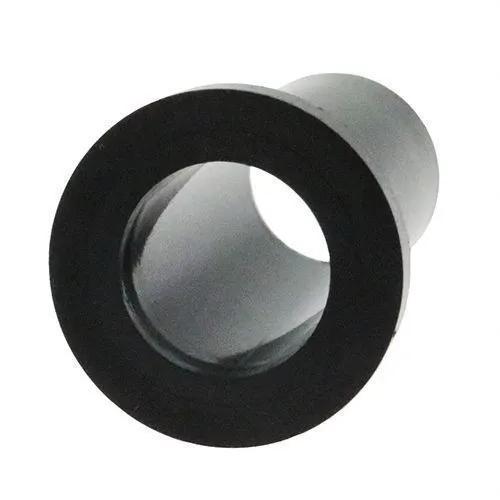

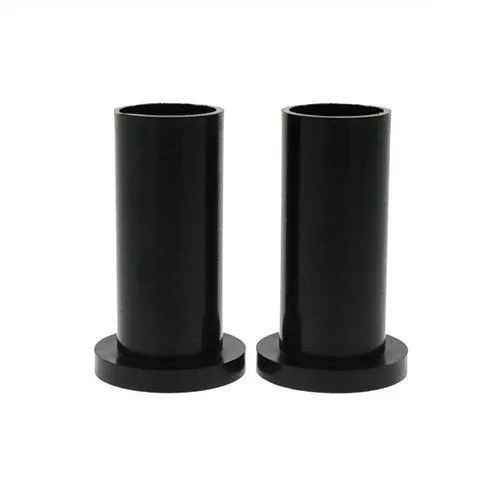

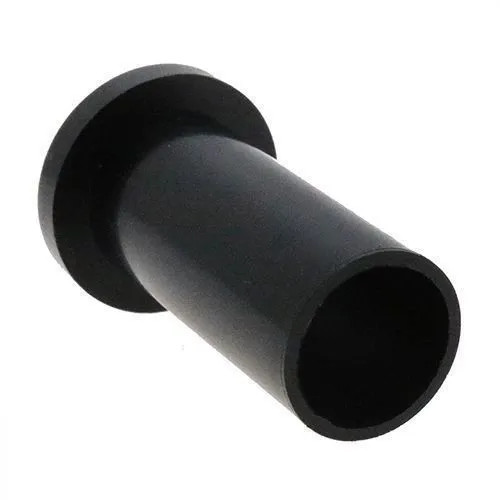

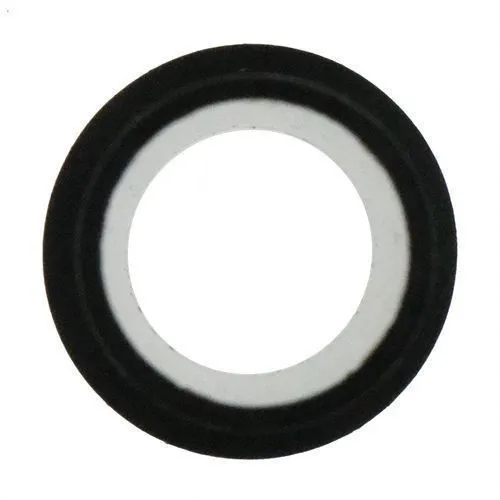

Flanged Nylon Bushes - NYB105
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.48 | £0.58 |
| 2 - 999 | £0.44 | £0.53 |
| 1000 - 4999 | £0.41 | £0.49 |
| 5000 + | £0.38 | £0.45 |
£0.58 / each
.png)
Product Specification
| Internal Diameter | 12.5mm |
| Outside Diameter | 16.0mm |
| Flange Diameter | 20.0mm |
| Shaft Length | 1.0mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00
12.5mm ID x 16mm OD Nylon Flanged Bushing | 1mm Shaft | Black
Built for industrial electrical equipment, this Nylon Shoulder Washer style bush combines a 12.5mm internal diameter with a 16.0mm outside diameter. The moulded flange and sleeve create a non-conductive interface that can help protect screws, reduce contact between materials and maintain component separation.
What Are Nylon Flanged Bushes?
Also known as screw insulators or shoulder washers, Nylon Flanged Bushes combine a sleeve with an integral flange. The non-conductive Nylon 6/6 material helps prevent direct electrical contact while the flange can maintain spacing between components and protect the edge of the mounting hole.
Common Applications
- Automotive Electrical Systems: Provides non-conductive separation around suitable fasteners used in vehicle electrical and electronic assemblies.
- Equipment Housings: Provides an insulating bush through suitable holes in machinery covers, enclosures and equipment panels.
- Control Panels: Insulates compatible fasteners and mounting points in electrical control equipment and enclosure assemblies.
- Panel Protection: Provides a sleeve around a mounting hole which can help protect the hole edge from the passing screw or shaft.
12.5mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 12.5mm
- Outside Diameter: 16.0mm
- Flange Diameter: 20.0mm
- Shaft Length: 1.0mm
- Colour: Black
- Material: Polyamide
Key Benefits
- Black finish provides a discreet appearance for darker housings, panels and equipment assemblies.
- 12.5mm internal diameter provides the bore size for the compatible screw, pin or passing component.
- 1.0mm shaft length defines the depth of the insulating sleeve through the assembly.
- Flanged shoulder design supports both insulation and component spacing within one moulded part.
See alternative flanged bush sizes in the Nylon Bushes category. If you need help selecting an insulating bush for a screw, panel or PCB assembly, call Vital Parts on 01233 713581.
