Flanged Nylon Bushes - NYB106
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 1 | £0.88 | £1.06 |
| 2 - 999 | £0.82 | £0.98 |
| 1000 - 4999 | £0.71 | £0.85 |
| 5000 + | £0.67 | £0.80 |
£1.06 / each
.png)
Product Specification
| Internal Diameter | 12.5mm |
| Outside Diameter | 14.5mm |
| Flange Diameter | 21.0mm |
| Shaft Length | 32.5mm |
| Colour | Black |
| Flange Thickness | N/A |
| Material | Polyamide |
Frequently Bought Together
Total Price: £0.00

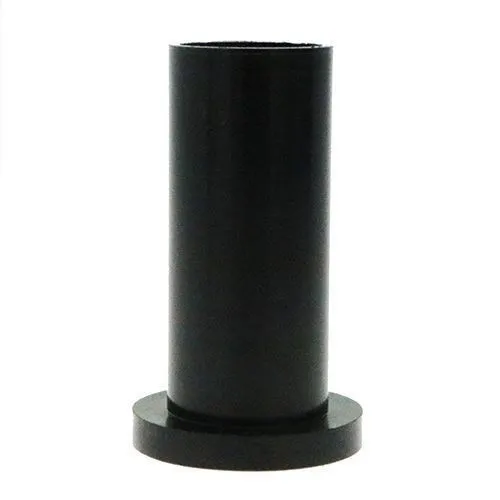

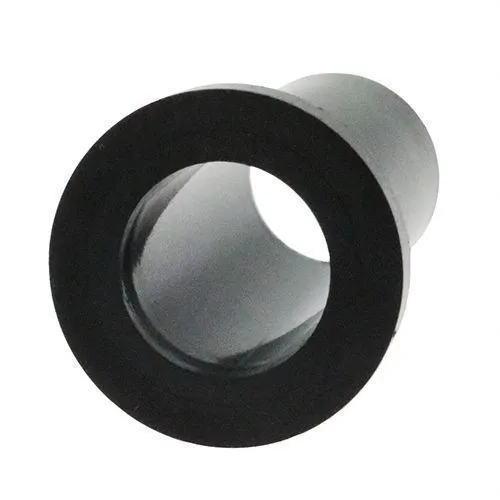

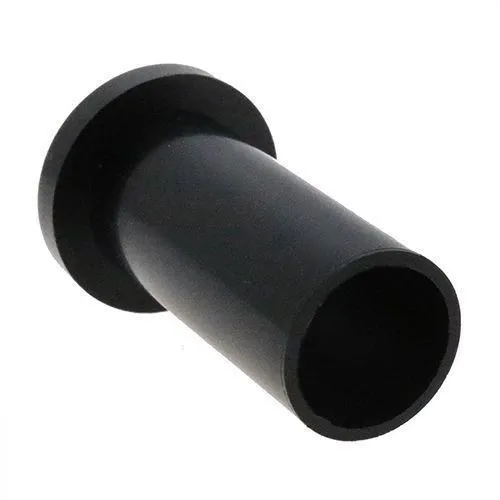

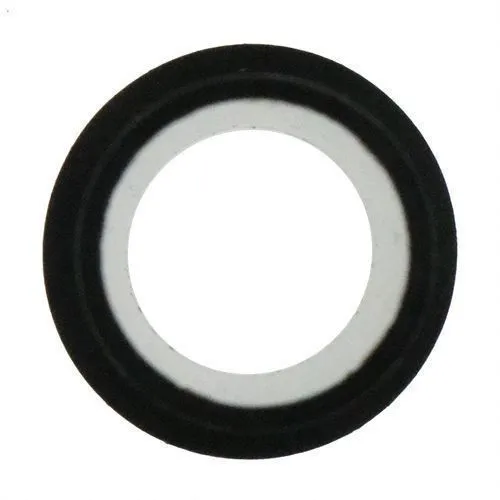

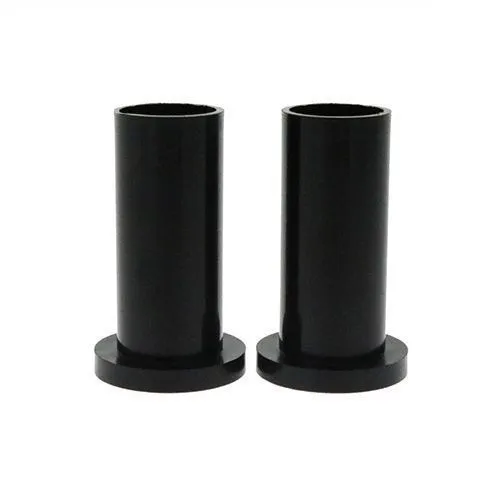

12.5mm ID x 14.5mm OD Nylon Flanged Bushing | 32.5mm Shaft | Black
Used within commercial electronics and equipment frames, this Black Nylon Bush provides a flanged insulating sleeve with a 32.5mm shaft length and 21.0mm flange diameter. The heat-stabilised Nylon 6/6 material is suited to electrical and mechanical assemblies where lightweight isolation and positioning are important.
What Are Nylon Flanged Bushes?
Also known as screw insulators or shoulder washers, Nylon Flanged Bushes combine a sleeve with an integral flange. The non-conductive Nylon 6/6 material helps prevent direct electrical contact while the flange can maintain spacing between components and protect the edge of the mounting hole.
Common Applications
- PCB Spacing: Helps maintain separation between circuit boards, panels and supporting components where a flanged spacer is suitable.
- Vibration Damping: Helps reduce direct contact and absorb light vibration or movement between assembled components.
- Component Spacing: Maintains a defined gap between compatible parts where the flanged shoulder provides a controlled bearing surface.
- Light Mechanical Assemblies: Acts as a low-mass sleeve or shoulder spacer around compatible shafts, pins and fasteners.
12.5mm ID Nylon Flanged Bushing Dimensions
- Internal Diameter: 12.5mm
- Outside Diameter: 14.5mm
- Flange Diameter: 21.0mm
- Shaft Length: 32.5mm
- Colour: Black
- Material: Polyamide
Key Benefits
- Suitable as a screw insulator, shoulder washer or flanged spacer in correctly sized assemblies.
- 14.5mm outside diameter provides the main sleeve diameter for the mounting hole.
- Flanged profile provides a defined bearing face while the sleeve passes through the mounting hole.
- Nylon construction can help damp light vibration, movement and shock between assembled components.
Explore the wider Nylon Flanged Bushes range for different bore sizes, body diameters and shaft lengths. For product selection assistance, contact our technical sales team on 01233 713581.
