4.2mm x 19mm Torx Pan Head Self Drilling Screw DIN 7504N | Steel BZP
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.05 | £0.06 |
| 2000 - 4999 | £0.04 | £0.05 |
| 5000 + | £0.03 | £0.03 |
£0.06 / each
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 19mm |
| Drive | T20 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | Steel BZP |
| Standard | DIN 7504N |
Frequently Bought Together
Total Price: £0.00

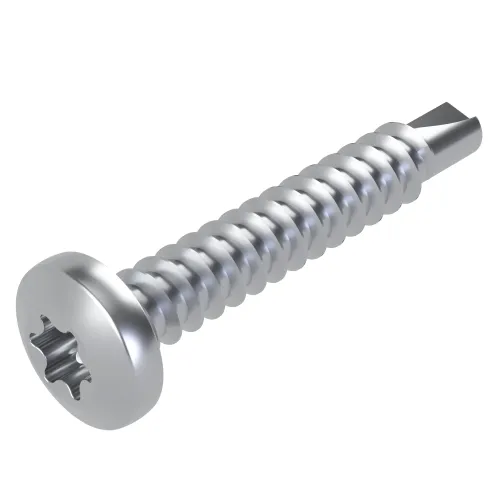

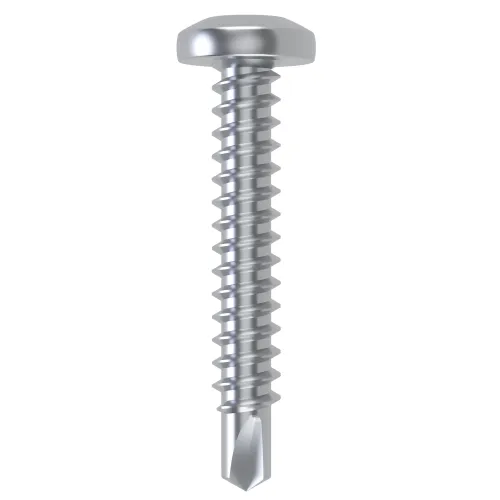

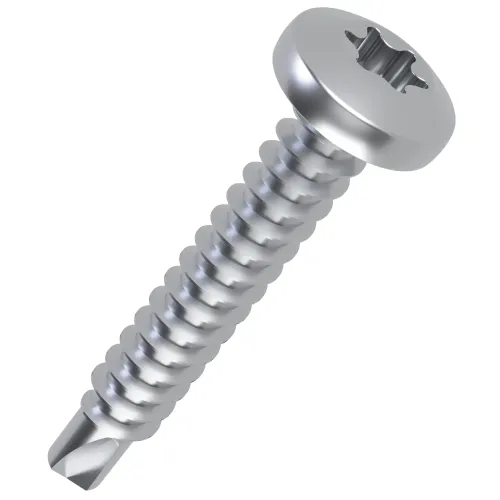

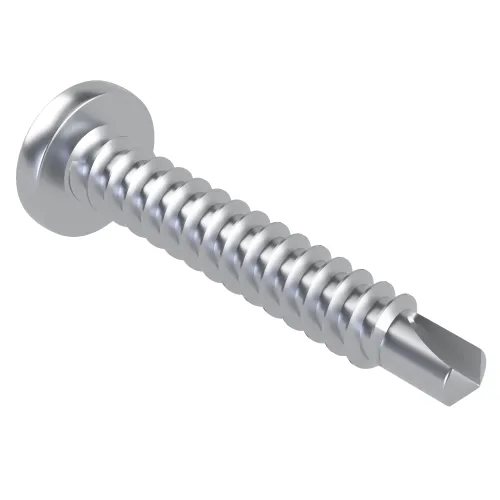

4.2mm x 19mm Torx Pan Head Self Drilling Screw | DIN 7504N | Steel BZP
For workshop fabrication, repairs and general metal assembly, this 4.2mm x 19mm Torx self drilling screw can cut through compatible sheet metal before its thread engages the receiving material. This allows drilling and fastening to be completed with one fastener in many suitable assemblies. The zinc-plated steel construction provides a practical finish for general indoor and protected engineering applications.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504N defines the pan head self drilling screw format used for this metric fastening option.
Common Applications
- Automotive and Transport: Secures compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Fastens suitable metal framing accessories, brackets, fixtures and sheet-metal components.
- Control Panels: Provides a quick fixing for covers, mounting plates and internal hardware on compatible metal panels.
- Workshop Fabrication: Supports repairs, prototype work and general assembly where self drilling into suitable metal is useful.
4.2mm x 19mm DIN 7504N Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 19mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: T20
- Standard: DIN 7504N
- Material: Steel BZP
Key Benefits
- 4.2mm thread diameter with 19mm thread length provides the main screw dimensions.
- 8.0mm head diameter provides the bearing width beneath the rounded head.
- Steel BZP construction provides the specified material and finish for the application.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
Browse the complete Pan Head Self Drilling Screw collection for other lengths, diameters and materials. Our wider Self Drilling Screws range includes additional head styles, drive types and fastening options. We can help you select the right fastener on 01233 713581.
