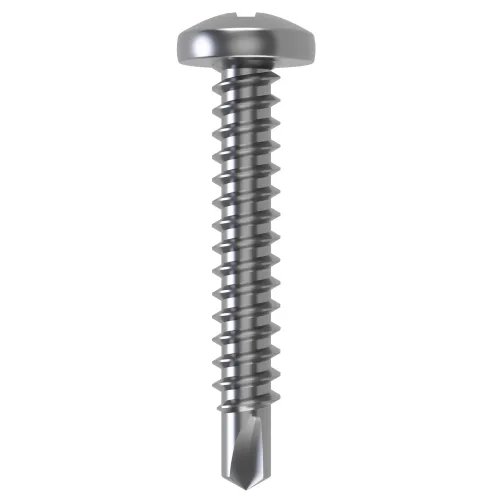

4.2mm x 25mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.08 | £0.10 |
| 2000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.05 | £0.06 |
£0.10 / each
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 25mm |
| Drive | PZ2 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A4 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
4.2mm x 25mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A4 Stainless Steel
Providing drilling and fastening in one operation, this 4.2mm x 25mm pan head self drilling screw is suited to electrical enclosures, access panels and mounting brackets. Its PZ2 drive, 8.0mm head diameter and 3.1mm head height provide the key installation dimensions for this fastener. The A4 Stainless Steel construction is suited to applications where increased resistance to moisture and corrosive environments is required.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Automotive and Transport: Secures compatible trim panels, brackets, housings and lightweight fabricated components.
- General Construction: Fastens suitable metal framing accessories, brackets, fixtures and sheet-metal components.
- Control Panels: Provides a quick fixing for covers, mounting plates and internal hardware on compatible metal panels.
- Workshop Fabrication: Supports repairs, prototype work and general assembly where self drilling into suitable metal is useful.
4.2mm x 25mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 25mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: PZ2
- Standard: DIN 7504MZ
- Material: A4 Stainless Steel
Key Benefits
- PZ2 drive matches the specified driver or bit for installation.
- A4 Stainless Steel construction provides the specified material and finish for the application.
- Flat underside of the pan head provides a broad clamping surface against panels and brackets.
- 4.2mm thread diameter with 25mm thread length provides the main screw dimensions.
Browse the complete Pan Head Self Drilling Screw collection for other lengths, diameters and materials. We also stock other self-drilling and self-threading fastening styles in our complete Self Drilling Screws range. We can help you select the right fastener on 01233 713581.
