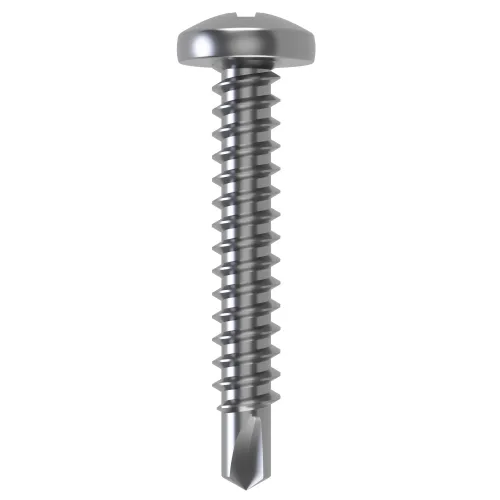

4.2mm x 60mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 500 - 1999 | £0.17 | £0.20 |
| 2000 - 4999 | £0.12 | £0.15 |
| 5000 + | £0.09 | £0.11 |
£0.20 / each
Product Specification
| Thread Size | 4.2mm |
| Thread Length | 60mm |
| Drive | PZ2 |
| Head Diameter | 8.0mm |
| Head Height | 3.1mm |
| Material | A4 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
4.2mm x 60mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A4 Stainless Steel
Providing drilling and fastening in one operation, this 4.2mm x 60mm pan head self drilling screw is suited to equipment covers and non-critical engineering assemblies. Its PZ2 drive, 8.0mm head diameter and 3.1mm head height provide the key installation dimensions for this fastener. The A4 Stainless Steel construction is suited to applications where increased resistance to moisture and corrosive environments is required.
What Are Pan Head Self Drilling Screws?
Self Drilling Screws use a hardened drill-shaped point to penetrate suitable metal before the screw thread engages. Pan head versions are useful where a visible low-profile head and good clamping area are preferred over a countersunk finish. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Sheet Metal Fabrication: Joins overlapping sheets, lightweight sections, covers and fabricated metal components.
- Electrical Enclosures: Secures panels, access covers, mounting plates and internal brackets in suitable enclosures.
- HVAC and Ventilation: Fastens ducting, vents, air-handling components and associated metal fittings.
- Machinery and Equipment: Provides a practical fixing for guards, casings, control panels and light equipment assemblies.
4.2mm x 60mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.2mm
- Thread Length: 60mm
- Head Height: 3.1mm
- Head Diameter: 8.0mm
- Drive: PZ2
- Standard: DIN 7504MZ
- Material: A4 Stainless Steel
Key Benefits
- 4.2mm thread diameter with 60mm thread length provides the main screw dimensions.
- 8.0mm head diameter provides the bearing width beneath the rounded head.
- A4 Stainless Steel construction provides the specified material and finish for the application.
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
View the full Pan Head Self Drilling Screws range to compare diameters, lengths, drive styles and materials. You can compare other self-drilling and self-threading screw options in our full Self Drilling Screws collection. If you need help choosing the correct screw for your material thickness, call us on 01233 713581.
