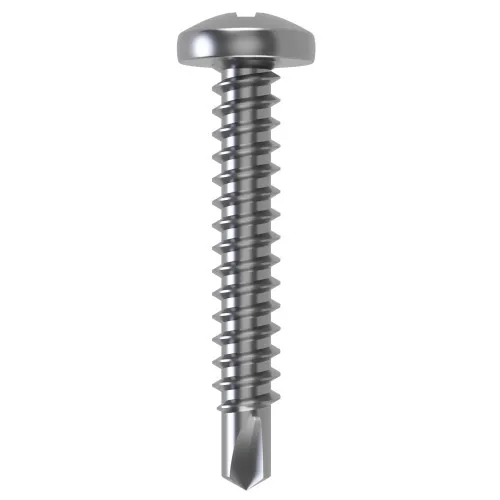

4.8mm x 32mm Pozi Pan Head Self Drilling Screw DIN 7504MZ | A4 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1000 - 1999 | £0.13 | £0.16 |
| 2000 - 4999 | £0.09 | £0.11 |
| 5000 + | £0.07 | £0.09 |
£0.16 / each
Product Specification
| Thread Size | 4.8mm |
| Thread Length | 32mm |
| Drive | PZ3 |
| Head Diameter | 9.5mm |
| Head Height | 3.7mm |
| Material | A4 Stainless Steel |
| Standard | DIN 7504MZ |
Frequently Bought Together
Total Price: £0.00
4.8mm x 32mm Pozidriv Pan Head Self Drilling Screw | DIN 7504MZ | A4 Stainless Steel
Designed for electrical enclosures, access panels and mounting brackets, this 4.8mm x 32mm pan head self drilling screw combines an integrated drill point with a self-tapping thread. The rounded pan head gives a neat installed finish while its flat underside provides a broad bearing surface against the fixed component. The A4 Stainless Steel construction is suited to applications where increased resistance to moisture and corrosive environments is required.
What Are Pan Head Self Drilling Screws?
Pan Head Self Drilling Screws combine a drill point and self-tapping thread in one fastener. The point cuts through compatible sheet metal before the threaded section forms a mating thread, allowing the screw to drill and fasten during the same operation in suitable materials. DIN 7504MZ specifies a pan head self drilling screw with a Pozidriv recess.
Common Applications
- Sheet Metal Fabrication: Joins overlapping sheets, lightweight sections, covers and fabricated metal components.
- Electrical Enclosures: Secures panels, access covers, mounting plates and internal brackets in suitable enclosures.
- HVAC and Ventilation: Fastens ducting, vents, air-handling components and associated metal fittings.
- Machinery and Equipment: Provides a practical fixing for guards, casings, control panels and light equipment assemblies.
4.8mm x 32mm DIN 7504MZ Pan Head Self Drilling Screw Dimensions
- Thread Size: 4.8mm
- Thread Length: 32mm
- Head Height: 3.7mm
- Head Diameter: 9.5mm
- Drive: PZ3
- Standard: DIN 7504MZ
- Material: A4 Stainless Steel
Key Benefits
- Self-tapping thread forms a mating thread as the screw is installed into compatible material.
- Rounded pan head creates a neat compact finish where a countersunk recess is not required.
- 9.5mm head diameter provides the bearing width beneath the rounded head.
- DIN 7504MZ identifies the standard or drive format for this product.
See our wider Pan Head Self Drilling Screws category for alternative standards and drive types. Our wider Self Drilling Screws range includes additional head styles, drive types and fastening options. For product-selection support, speak with our team on 01233 713581.
