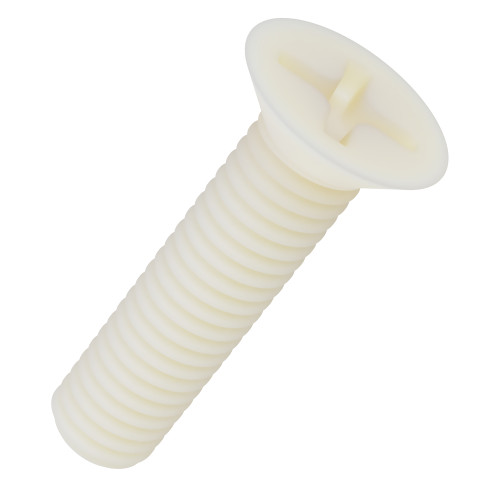

M3 x 12mm Nylon Phillips Countersunk Machine Screw (DIN 965H) | Natural
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 99 | £0.10 | £0.12 |
| 100 - 499 | £0.08 | £0.10 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 - 4999 | £0.06 | £0.07 |
| 5000 + | £0.04 | £0.05 |
Product Specification
| Thread Size | M3 |
| Length | 12mm |
| Pitch | 0.50mm |
| Head Diameter | 5.6mm |
| Material | Nylon - Natural |
| Head Height | 1.65mm |
| Standard | DIN 965H |
| Drive | Phillips |
| Head Style | Countersunk |
Frequently Bought Together
Total Price: £0.00
M3 Phillips Head Countersunk Nylon Screw DIN 965H - 12mm Length
Designed around countersunk fixing installations, this M3 phillips head countersunk nylon screw uses a 12mm thread length with a 5.6mm countersunk head diameter and 1.65mm head height. The medium reach configuration is suited to compact diameter recessed fixing positions where a flush finish is required.
Manufactured to DIN 965H from nylon, this fixing is supplied in a natural finish for lightweight assembly work. The plastic construction helps avoid marking softer mounting surfaces, while the Phillips recess supports controlled installation into pre-threaded holes, inserts and machine threads.
Common Applications
- Protective guards and machine covers
- Plastic cabinet assembly work
- OEM component manufacturing
- Maintenance and repair operations
M3 Phillips Head Countersunk Nylon Screw Dimensions
- Thread Size: M3
- Length: 12mm
- Pitch: 0.5mm
- Head Diameter: 5.6mm
- Head Height: 1.65mm
- Drive: Phillips
- Material: Nylon - Natural
- Standard: DIN 965H
- Head Style: Countersunk
View our full Nylon Countersunk Screw range or browse our Nylon Screws collection.
