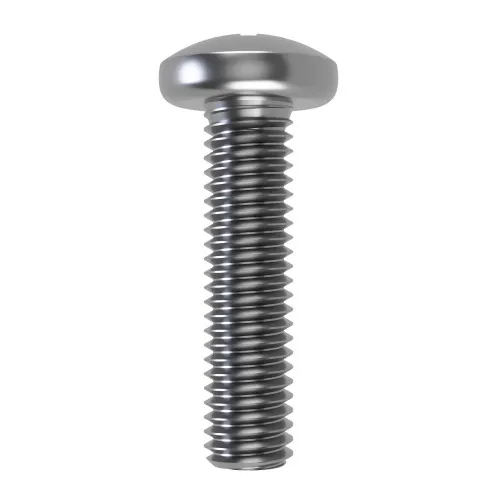

M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel

Product code: PPH7985H-M4-14-A4
View All Specifications
M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel
Quantity
Unit Price
(ex. VAT)
Unit Price
(inc. VAT)
1 - 9 £0.52 £0.62
10 - 24 £0.42 £0.50
25 - 49 £0.33 £0.40
50 - 99 £0.25 £0.30
100 - 499 £0.17 £0.20
500 - 999 £0.12 £0.15
1000 + £0.08 £0.10

£0.62 / each


Up to 400 units
In Stock
Vital Parts Tick
Order by for same day dispatch.
Up to 818 units
Available
Vital Parts Tick
Order now for dispatch within 2 days.
Up to 106,568 units
Available
Vital Parts Tick
Order now for dispatch within 5 days.
106,568 + units
Available for production
Average production time 14 + days.
Vital Parts - Here to make bulk ordering easy.

Product Specification
Thread Size M4
Length 14mm
Material A4 Stainless Steel
Pitch 0.70mm
Head Diameter 8.0mm
Head Height 3.25mm
Drive #2
Standard DIN 7985H
Head Style Pan Head

Next Day or Standard Delivery available via DHL or Royal Mail.
Order by 4pm (UK) for same day dispatch, Monday to Thursday or 2pm Friday.

Larger Order?

Call our sales team on

01233 713581


Frequently Bought Together

Total Price: £0.00

M4 x 14mm Phillips Pan Head Machine Screw (DIN 7985H) | Marine Grade A4 Stainless Steel

For control cabinets and equipment panels, this 14mm Phillips head screw provides a 8mm pan head that remains above the fastening surface. Manufactured from Marine Grade A4 Stainless Steel, it uses a #2 Phillips drive for installation into a matching threaded component.

What Are Phillips Pan Head Machine Screws?

Phillips pan head machine screws are metric threaded fasteners with a rounded head and cross-shaped drive recess. A correctly sized Phillips screwdriver engages the recess to tighten the screw into an internally threaded part or a compatible nut. The M4 thread and 0.70mm pitch should be matched to the mating component. For other sizes and material choices, our metric pan head screws are listed by their individual thread and length specifications.

Common Applications

  • Control Panels: Fastening removable panels to enclosures with prepared M4 female threads.
  • Mounting Brackets: Joining brackets and fittings using a matching M4 threaded hole or nut.
  • Instrumentation: Attaching casings or fittings to suitably threaded instrument frames.
  • Metal Fabrication: Assembling panels and light frames with appropriately sized threaded fasteners.

M4 x 14mm Phillips Pan Head Machine Screw Dimensions

  • Thread Size: M4
  • Length: 14mm
  • Pitch: 0.70mm
  • Head Diameter: 8.0mm
  • Head Height: 3.25mm
  • Drive: #2
  • Material: A4 Stainless Steel
  • Standard: DIN 7985H
  • Head Style: Pan Head

Key Benefits

  • The 14mm length lets this fastener be selected for the intended joint depth.
  • A removable screw connection supports access to equipment during maintenance.
  • The M4 machine thread works with matching tapped holes or nuts.
  • The #2 Phillips recess allows tightening using a matching crosshead screwdriver or bit.

Explore our crosshead pan head machine screws to compare other thread sizes, lengths and materials. If you need help selecting the correct screw, call us on 01233 713581.
