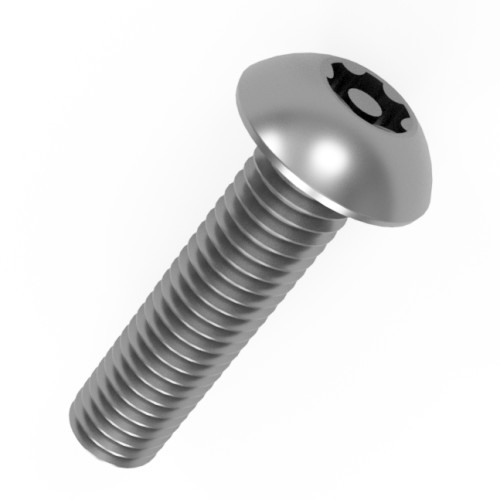

M4 x 10mm Security Pin Torx Button Head Screw (T20) | Tamper Resistant A2 Stainless Steel
| Quantity |
Unit Price
(ex. VAT)
|
Unit Price
(inc. VAT)
|
|---|---|---|
| 1 - 9 | £0.18 | £0.22 |
| 10 - 24 | £0.15 | £0.18 |
| 25 - 49 | £0.11 | £0.13 |
| 50 - 99 | £0.09 | £0.11 |
| 100 - 499 | £0.07 | £0.09 |
| 500 - 999 | £0.07 | £0.08 |
| 1000 + | £0.06 | £0.07 |
£0.22 / each
.png)
Product Specification
| Thread Size | M4 |
| Thread Length | 10mm |
| Pitch | 0.7mm |
| Head Diameter | 7.60mm |
| Head Height | 2.20mm |
| Drive | Security T20 |
| Standard | ISO 7380-1 |
| Head Style | Button Head |
| Material | A2 Stainless Steel |
Frequently Bought Together
Total Price: £0.00
M4 x Pin Torx Button Head Screw (T20) – A2 Stainless Steel
Designed for exposed fixings, this M4 x tamper-resistant Pin Torx Button Head Screw uses A2 Stainless Steel and a recessed Security T20 profile. Use the matching security driver to tighten it into a compatible threaded component.
What Are Pin Torx Button Head Screws?
Pin Torx button head screws are machine-thread fasteners with a six-lobe socket and central security pin. This M4 version needs a corresponding Security T20 bit rather than a standard Torx bit. The product is described as Level 1 entry-level security: it offers protection against opportunistic vandalism and interference but is not a guarantee against deliberate removal.
Common Applications
- Public access equipment: Secure removable access panels on equipment installed in shared or public areas.
- Electrical enclosures: Fix covers to suitably threaded housings where a standard Torx driver should not operate the fastener.
- Outdoor furniture: Attach serviceable brackets and fittings on furniture exposed to public access.
- Machinery guarding: Fasten removable protective panels where maintenance teams can use the matching security driver.
M4 x Pin Torx Button Head Screw Dimensions
- Thread Size: M4
- Thread Length: 10mm
- Pitch: 0.7mm
- Head Diameter: 7.60mm
- Head Height: 2.20mm
- Drive: Security T20
- Material: A2 Stainless Steel
- Standard: ISO 7380-1
- Head Style: Button Head
Key Benefits
- The specified thread pitch supports selection for compatible tapped components.
- Defined head dimensions help assess the clearance around the assembled fixing.
- The centre-pin Torx recess cannot be engaged by an ordinary Torx bit of the same size.
- The rounded button head gives the assembled fixing a relatively low-profile finish.
Explore more centre-pin Torx screws to compare thread and drive sizes. If you need help selecting the correct size, call us on 01233 713581.
